No Communication With The Gem Module

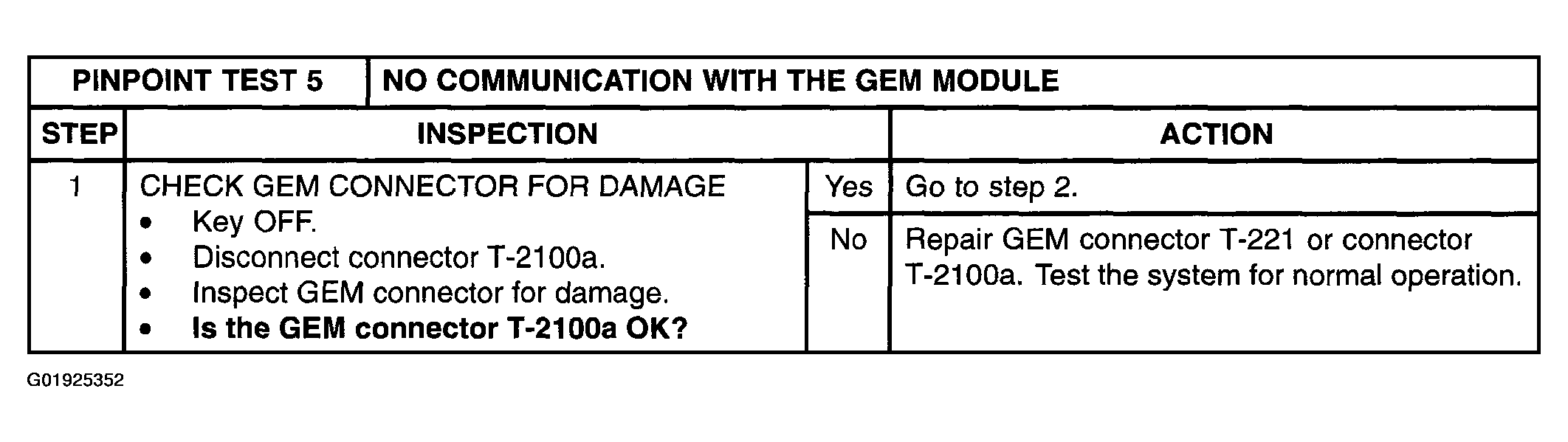

Fig 1: No Communication With GEM Module (Step 1)

Courtesy of MAZDA MOTORS CORP.

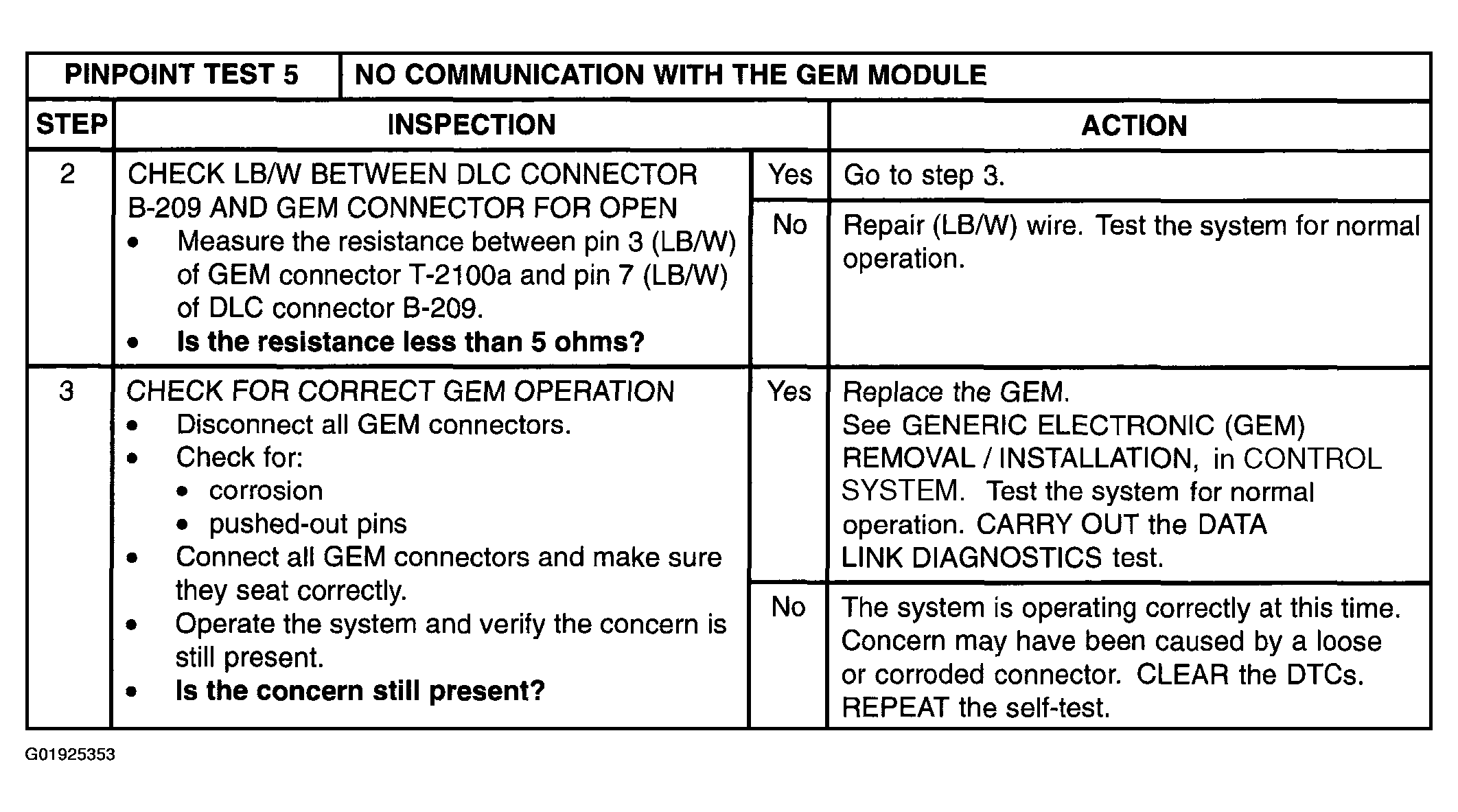

Fig 2: No Communication With GEM Module (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

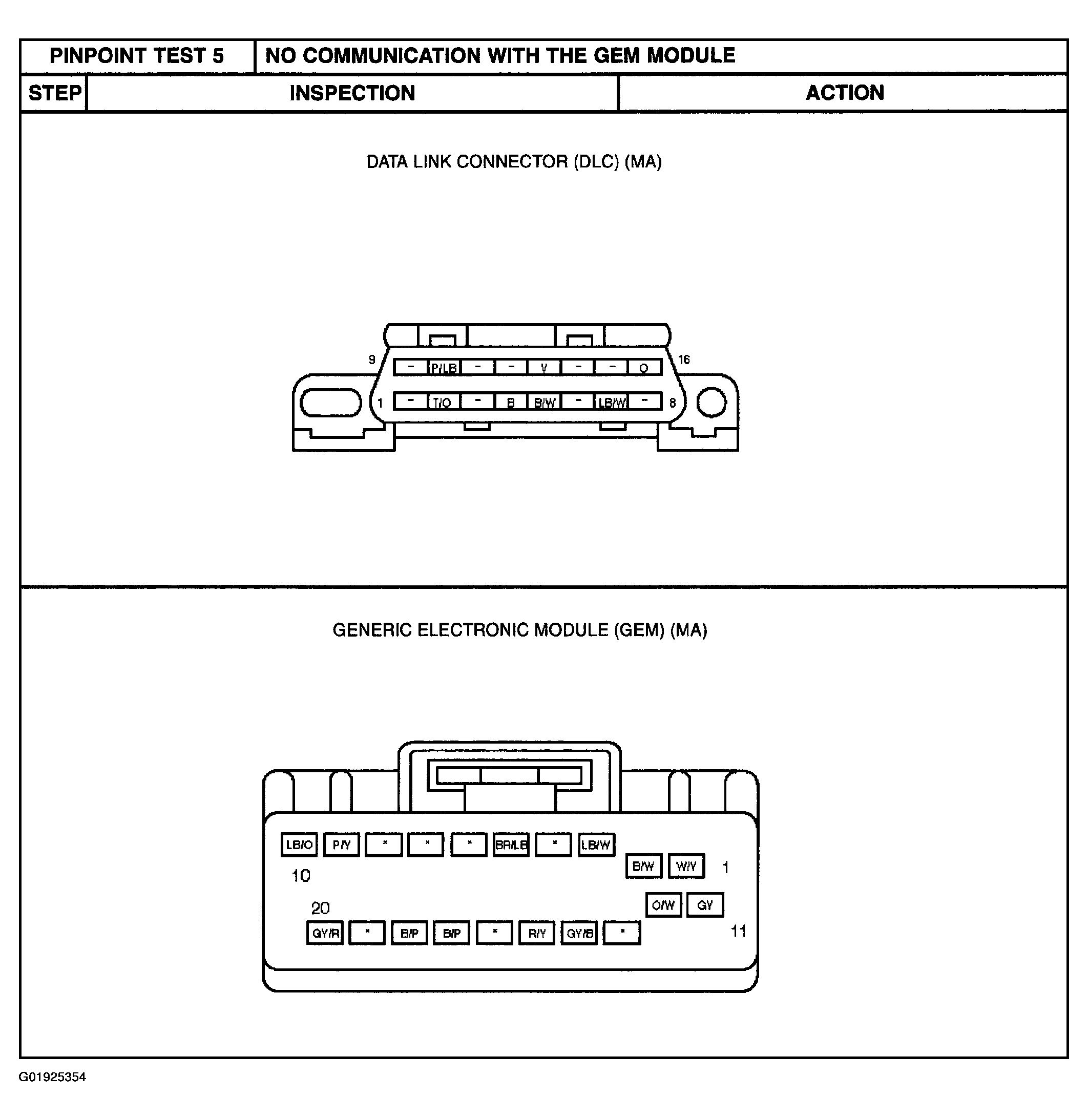

Fig 3: Identifying Data Link Connector & GEM Connector

Courtesy of MAZDA MOTORS CORP.
