One Touch Down Feature Is Inoperative

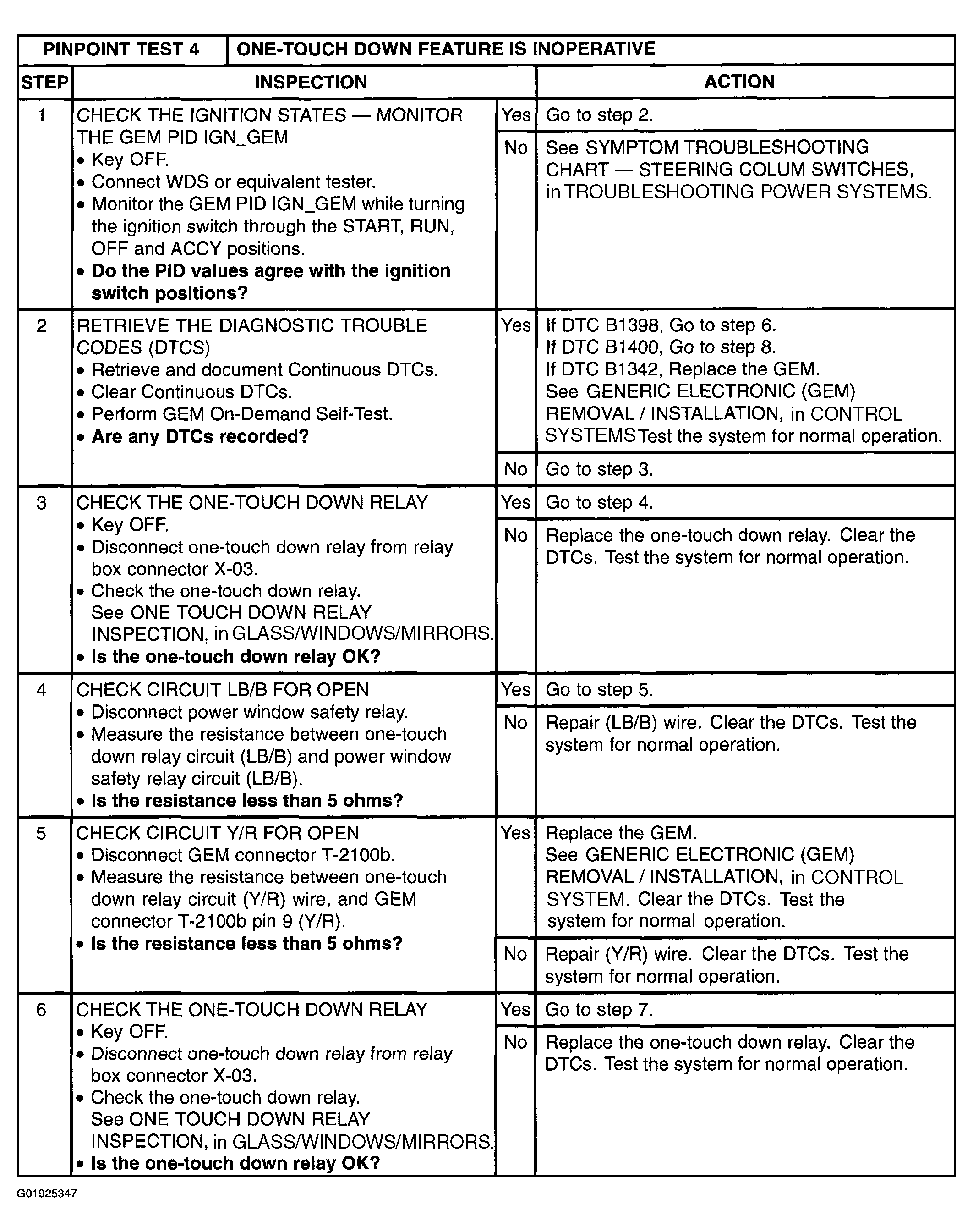

Fig 1: One Touch Down Feature Is Inoperative (Steps 1-6)
G01925347Courtesy of MAZDA MOTORS CORP.

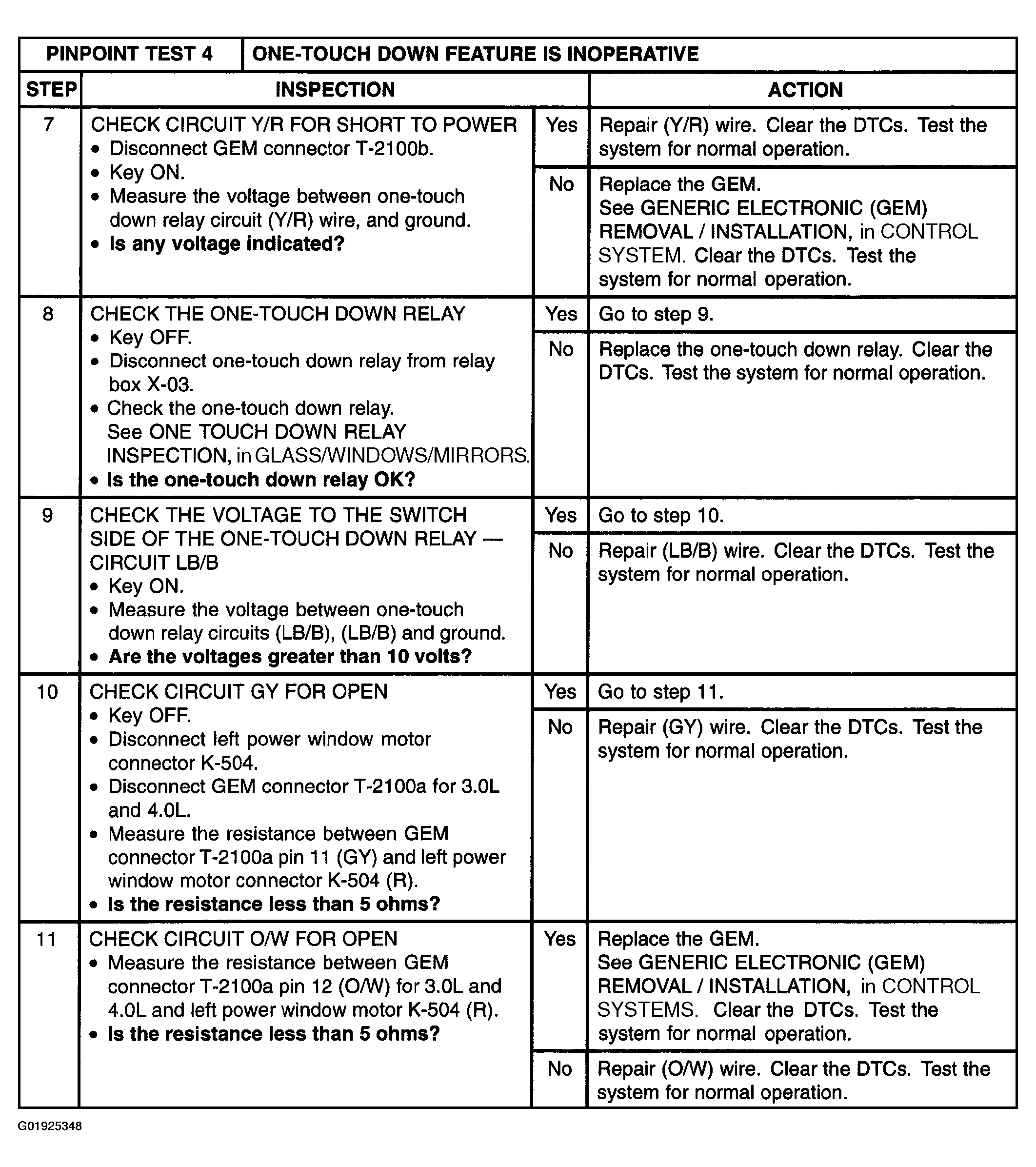

Fig 2: One Touch Down Feature Is Inoperative (Steps 7-11)
G01925348Courtesy of MAZDA MOTORS CORP.

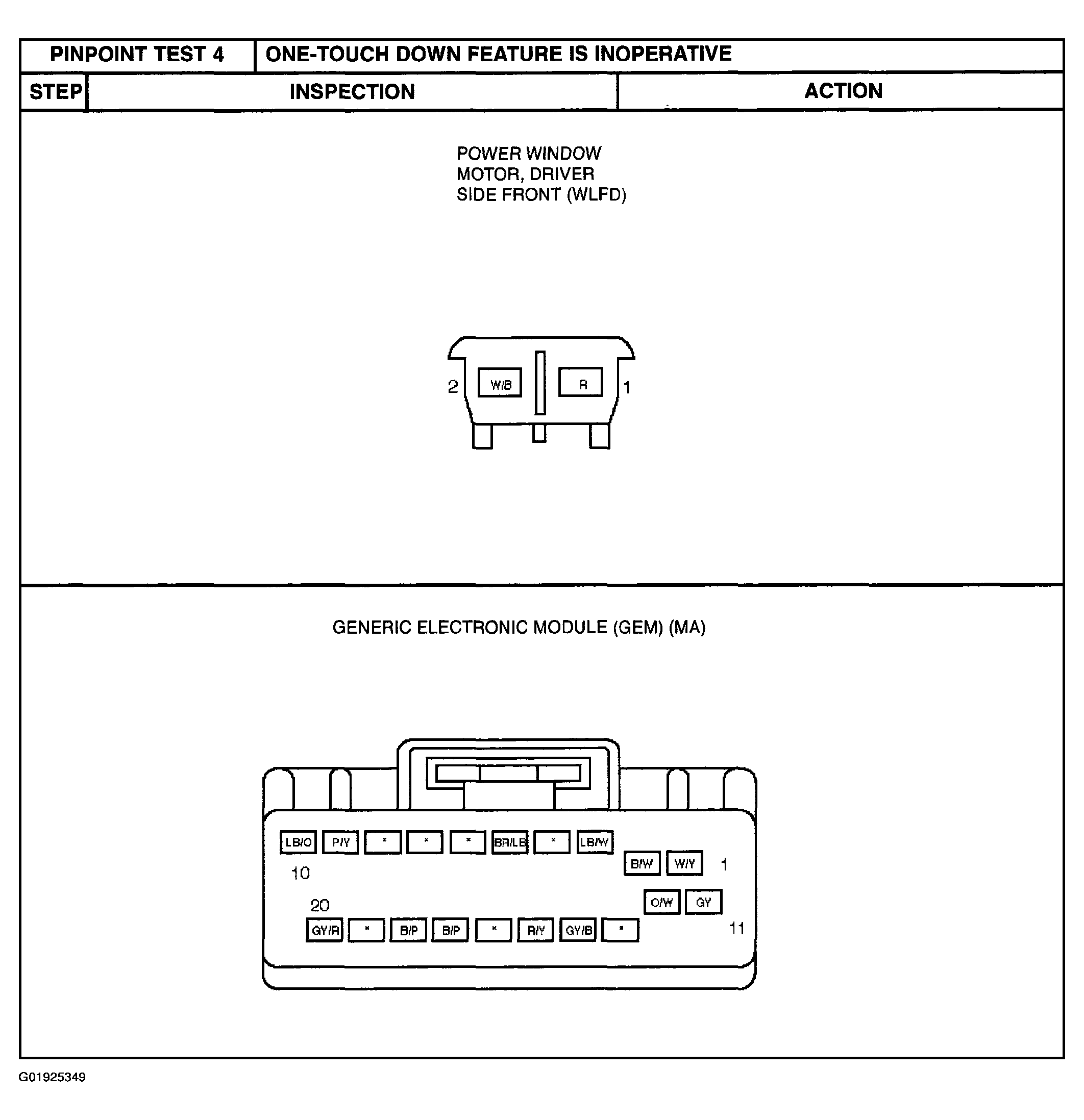

Fig 3: Identifying Power Window Motor (Driver Side Front) & GEM Connector)
G01925349Courtesy of MAZDA MOTORS CORP.

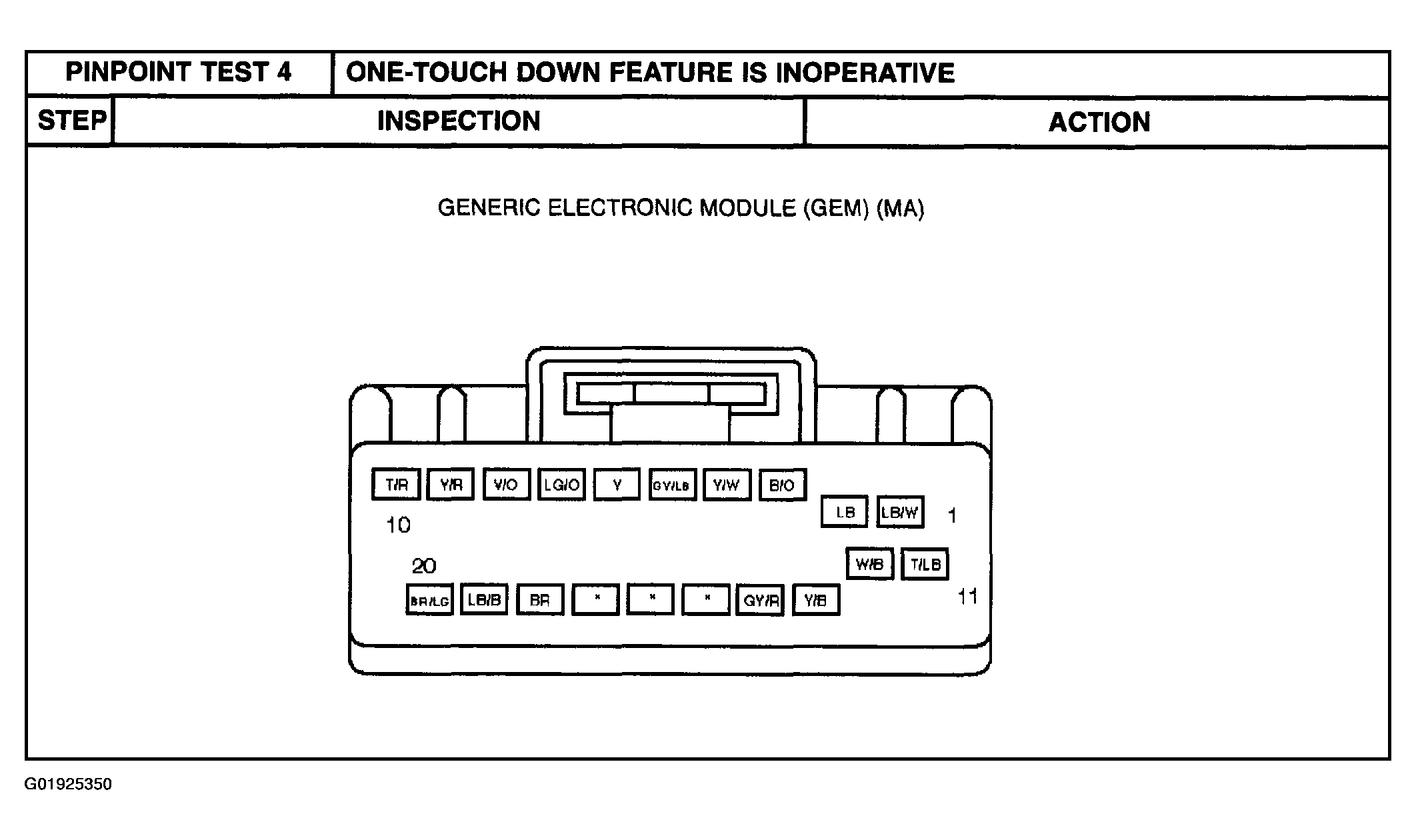

Fig 4: Identifying GEM Connector (Terminals No. 1-20)
G01925350Courtesy of MAZDA MOTORS CORP.

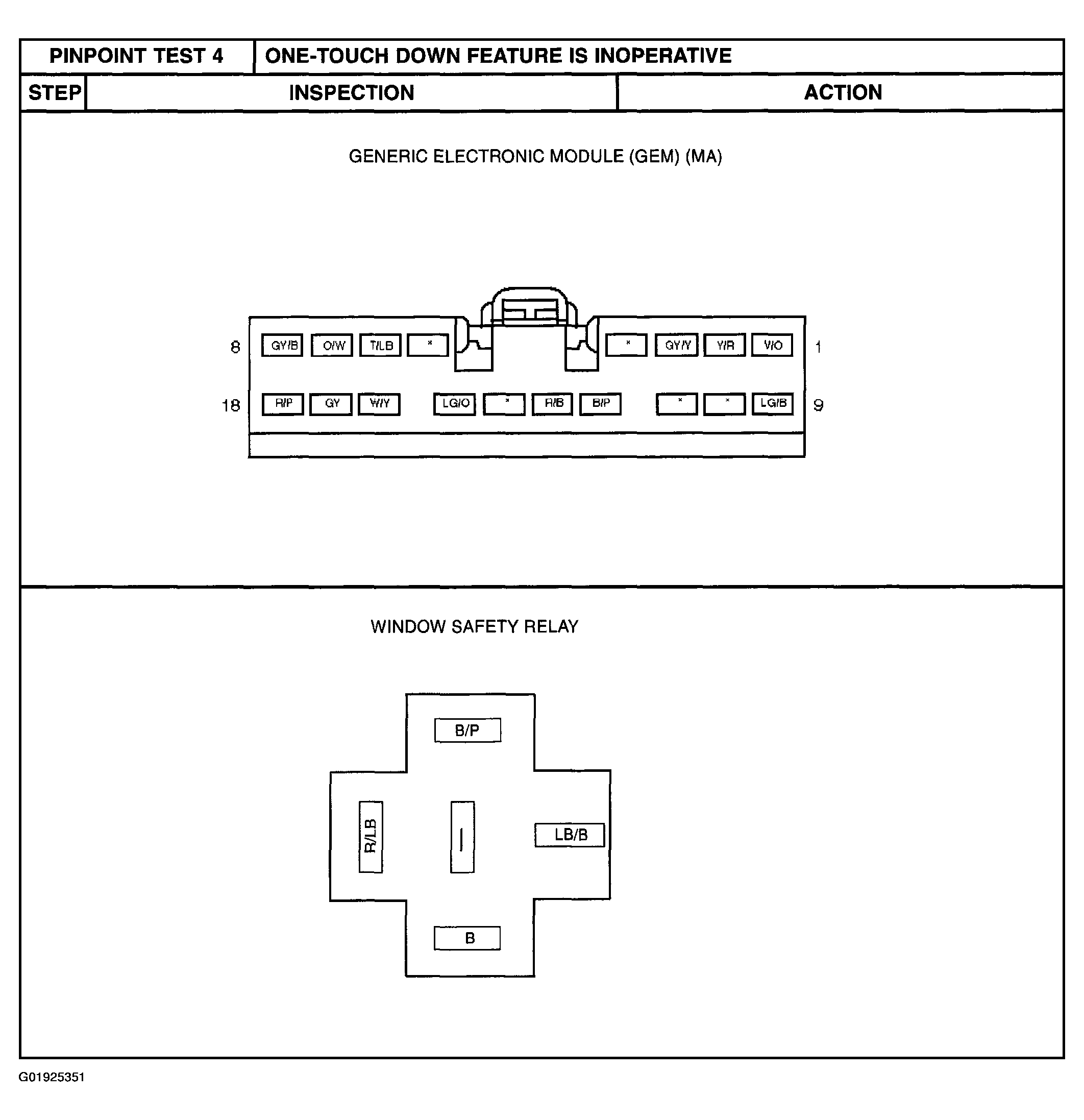

Fig 5: Identifying Window Safety Relay Connector & GEM Connector (Terminals No. 1-18)
G01925351Courtesy of MAZDA MOTORS CORP.
