Low-Reverse Servo: Installation

  1. Clean and inspect the low/reverse band servo piston bore and the low/reverse band servo piston and rod.
  2. Install the low/reverse band servo piston and rod assembly (1). See Fig 1 . Install a new low/reverse band servo separator plate cover gasket (2).
  3. Install the low/reverse band servo cover (3). Loosely install the low/reverse band servo piston cover screws. Tighten the servo cover screws in the sequence shown. See Fig 2 .
  4. Lower the vehicle. Connect the negative battery cable. Fill the transmission with appropriate fluid to proper level and check for correct transmission operation. See LUBRICATION  .

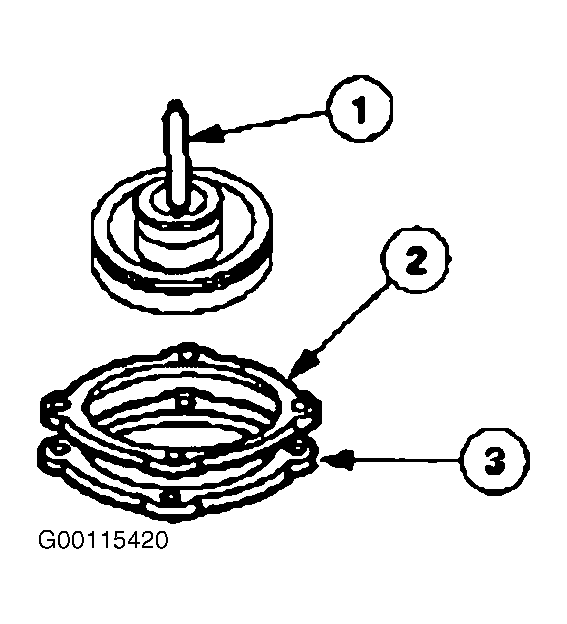

Fig 1: Exploded View Of Low/Reverse Band Servo
G00115420Courtesy of FORD MOTOR CO.

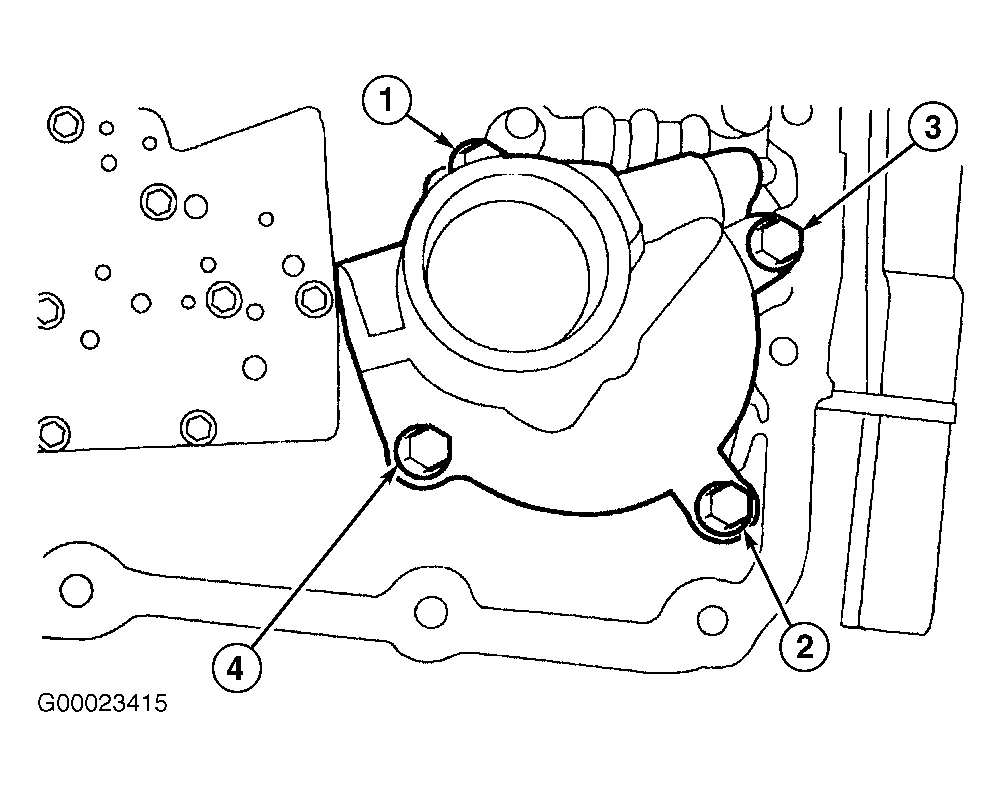

Fig 2: Low-Reverse Servo Cover Bolt Tightening Sequence
G00023415Courtesy of FORD MOTOR CO.
