Basic System Structural View

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

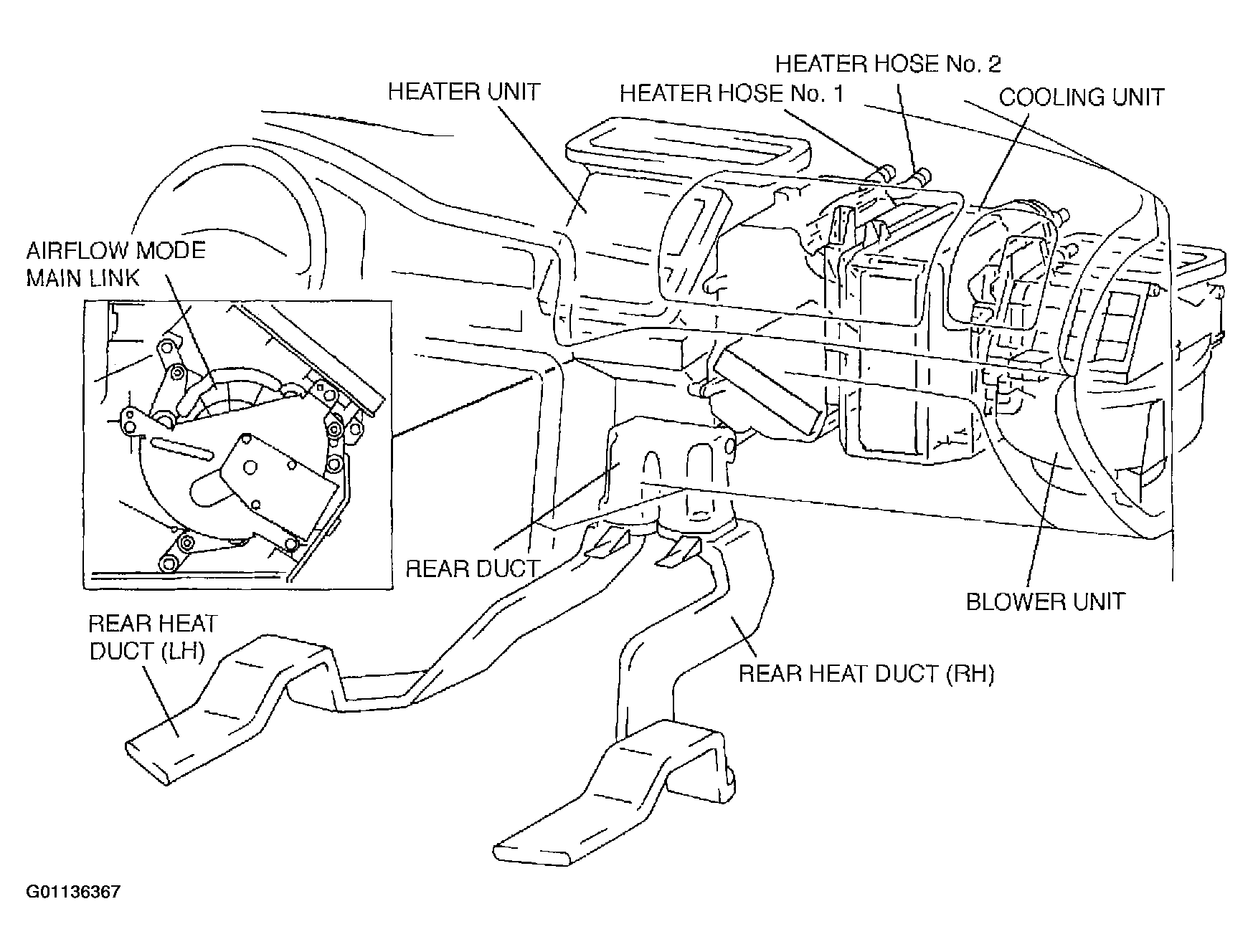

Passenger compartment

Fig 1: Basic System Structural View - Passenger Compartment

Courtesy of MAZDA MOTORS CORP.

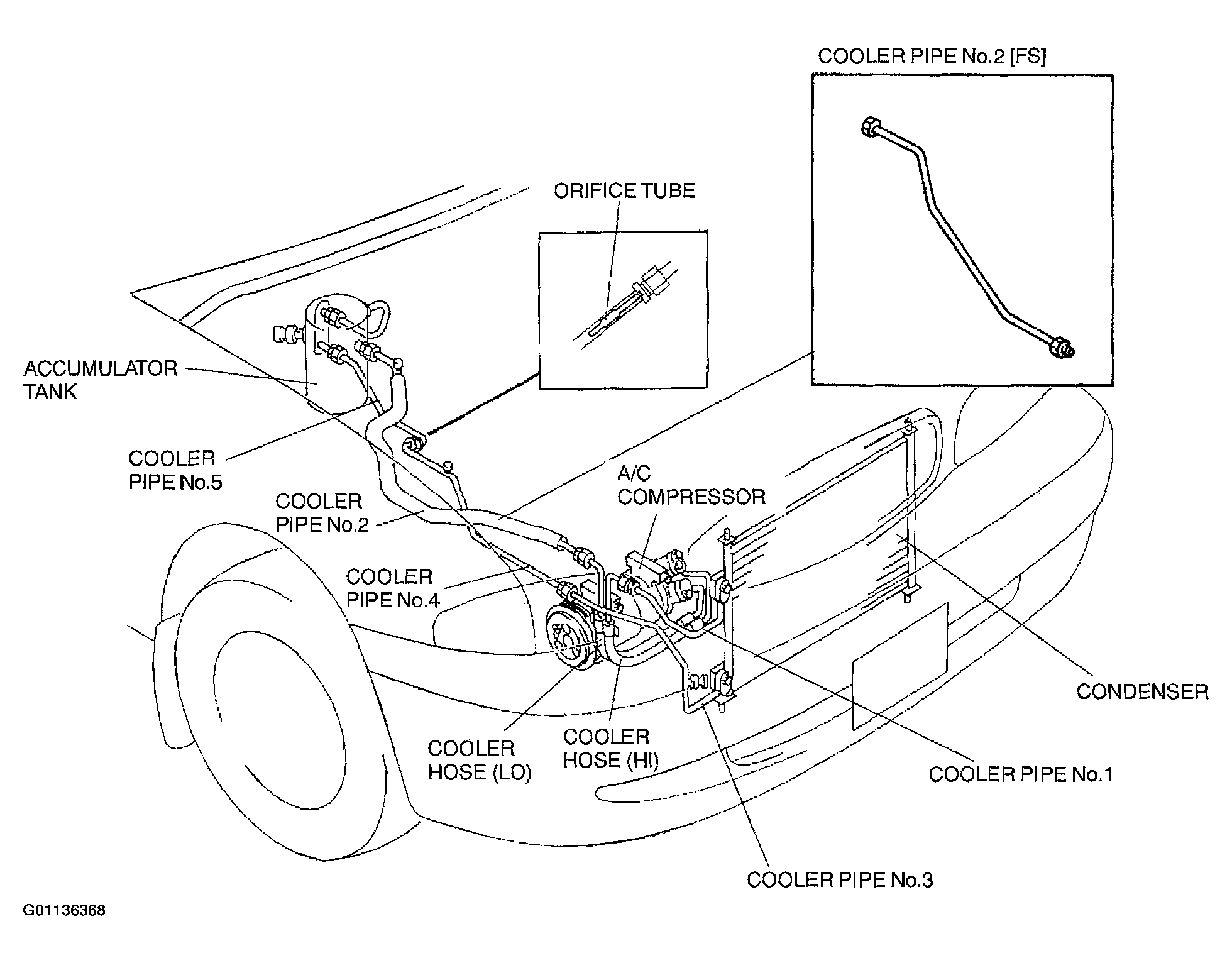

Engine room

Fig 2: Basic System Structural View - Engine Room

Courtesy of MAZDA MOTORS CORP.
