Parameter Identification (PID) Index

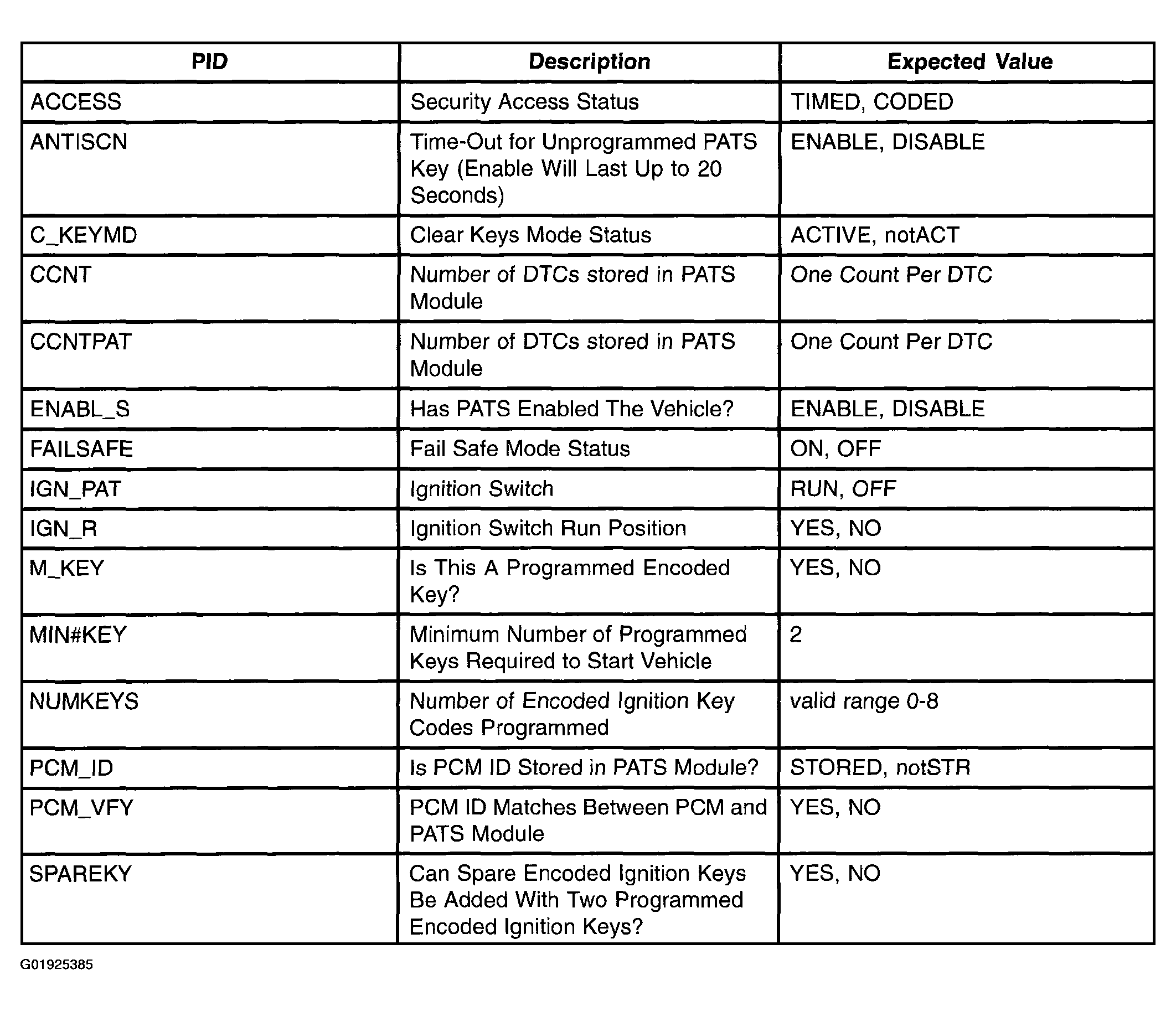

Fig 1: Parameter Identification (PID) Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
