No Module/Network Communication - ISO 9141 Network

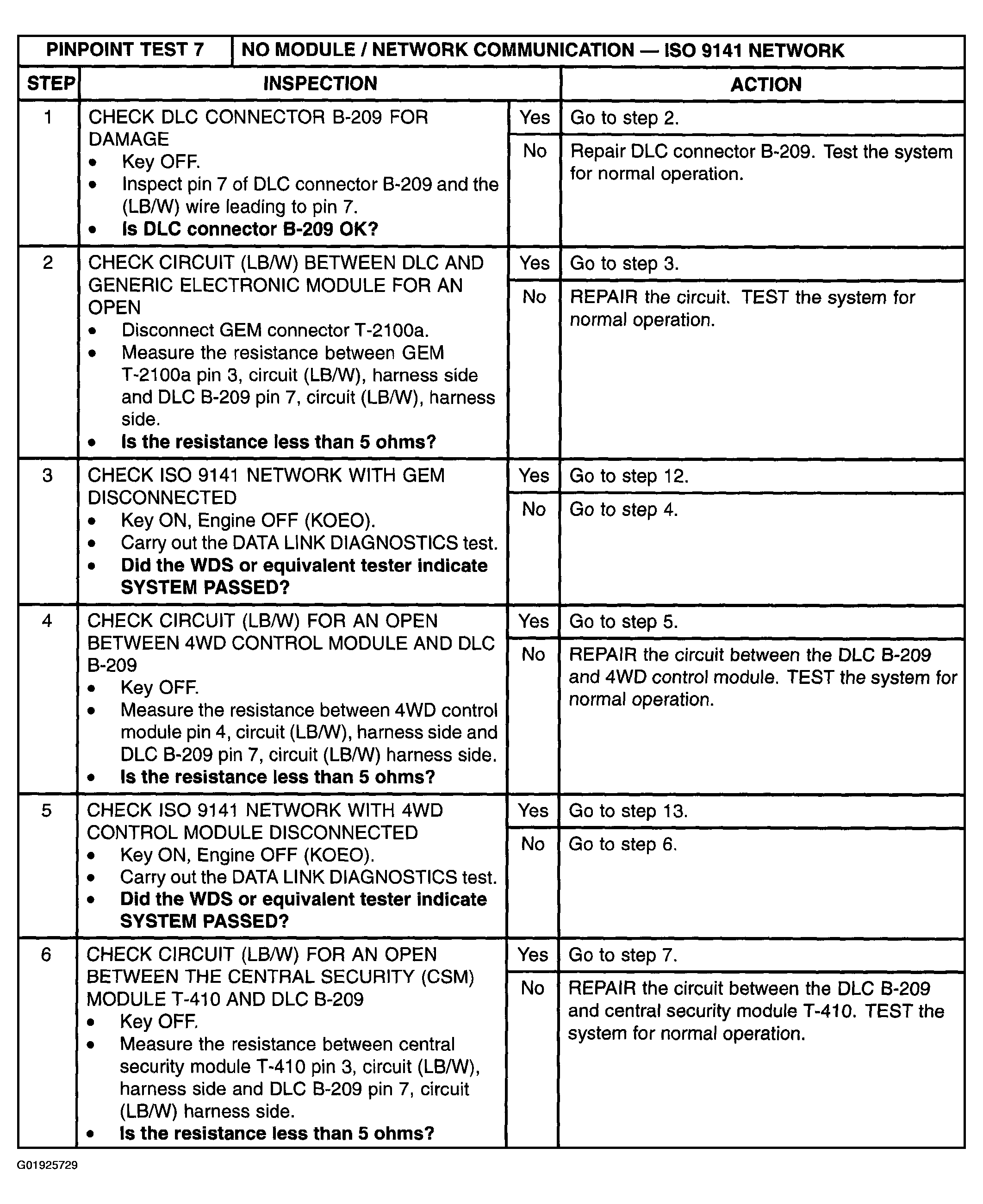

Fig 1: Diagnosis Procedure - No Module/Network Communication - ISO 9141 Network (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

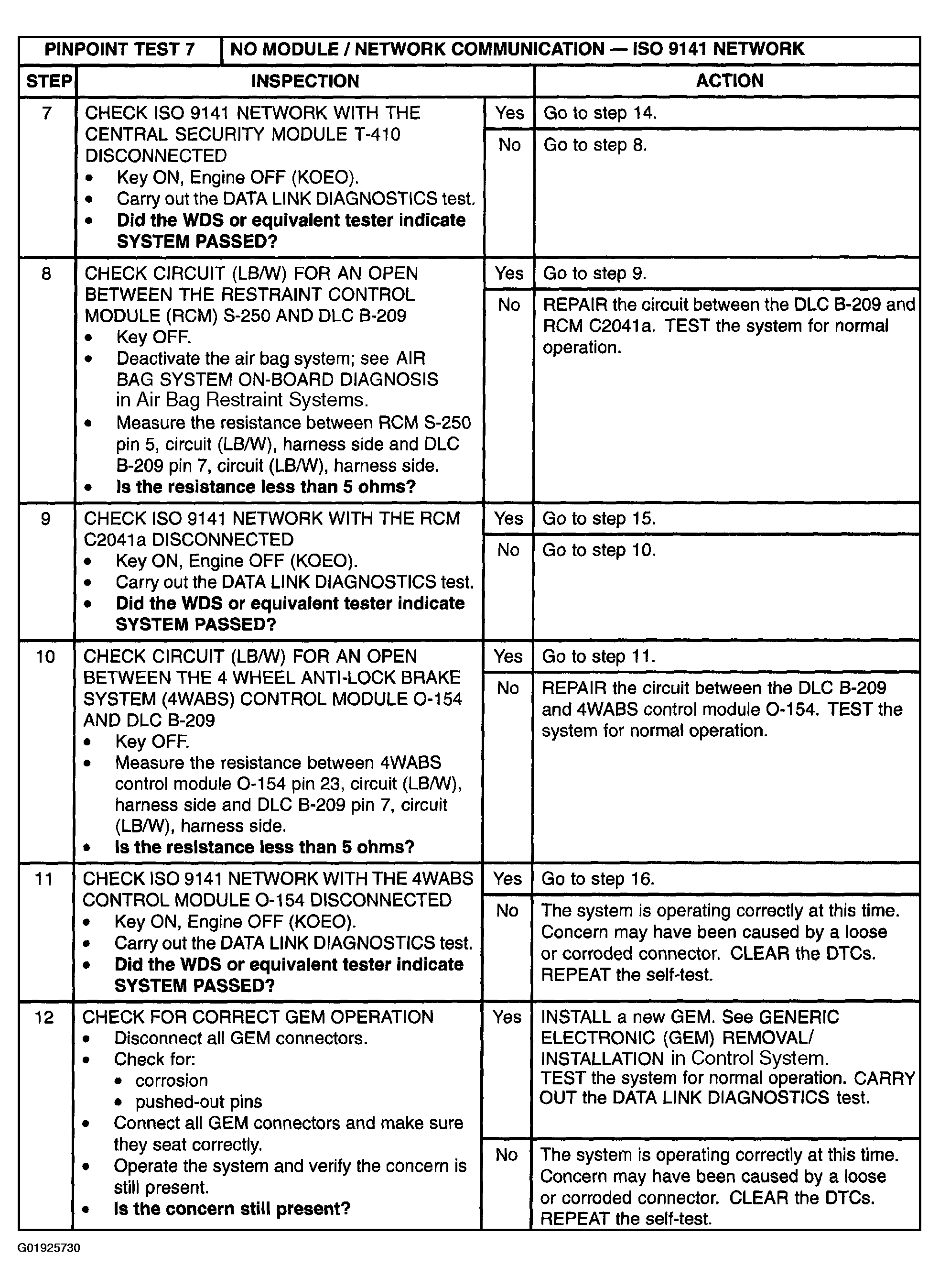

Fig 2: Diagnosis Procedure -- No Module/Network Communication - ISO 9141 Network (Steps 7-12)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Diagnosis Procedure -- No Module/Network Communication - ISO 9141 Network (Steps 13-16)

Courtesy of MAZDA MOTORS CORP.

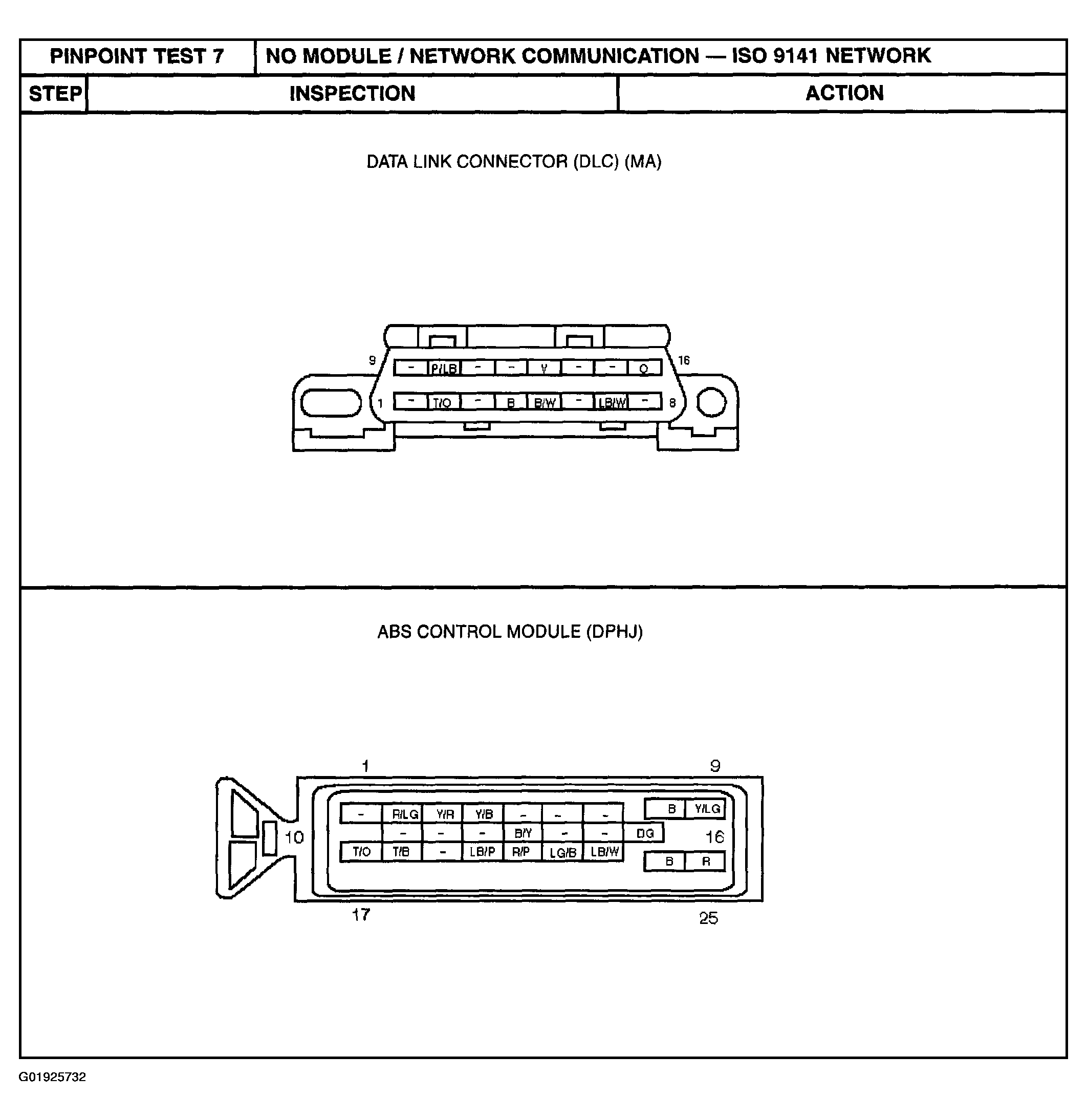

Fig 4: Data Link Connector & ABS Module Connector Identification

Courtesy of MAZDA MOTORS CORP.

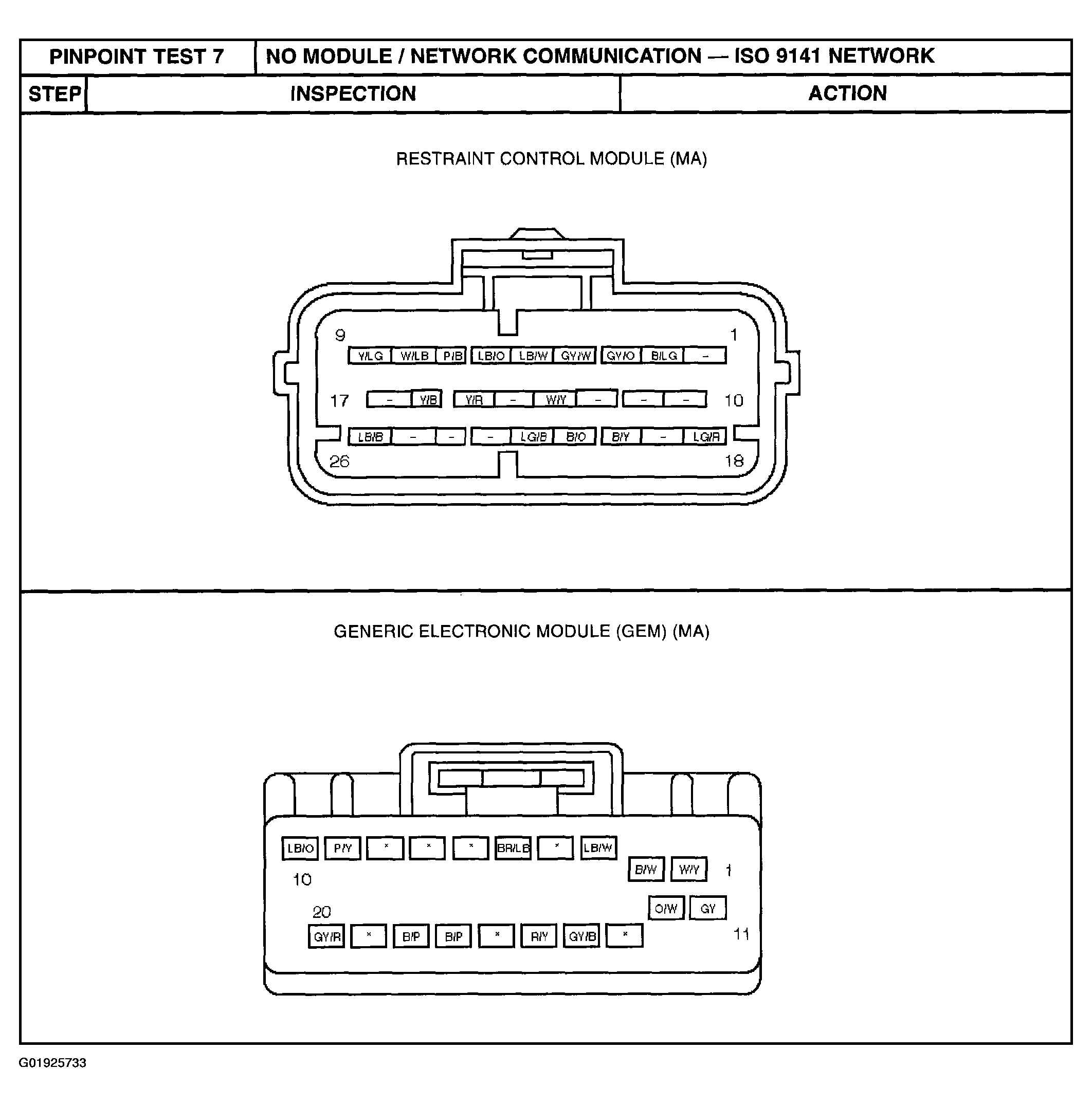

Fig 5: Restraint Control Module & GEM Connector Identification

Courtesy of MAZDA MOTORS CORP.

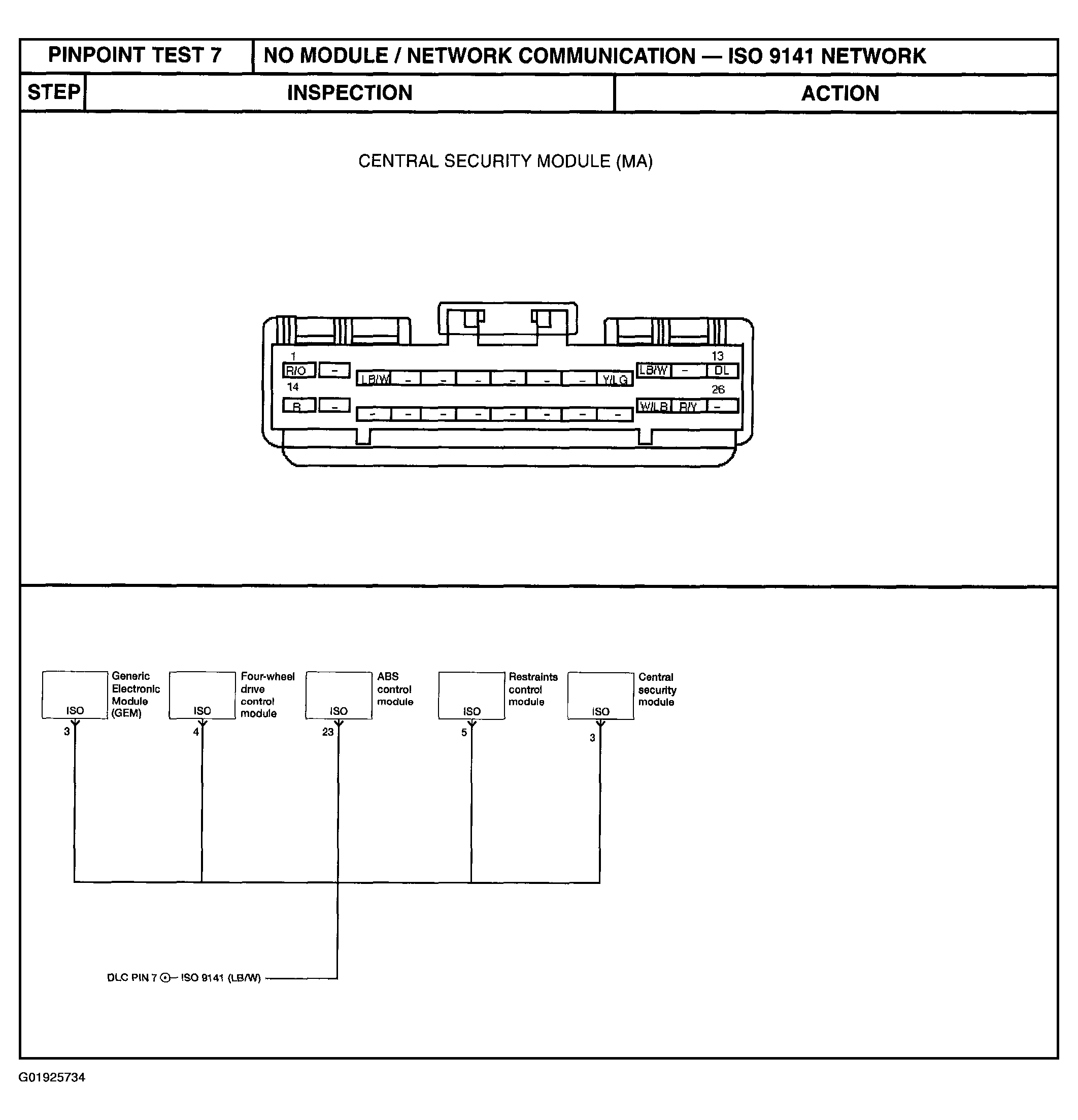

Fig 6: Identifying Central Security Module Connector & Module Circuits

Courtesy of MAZDA MOTORS CORP.
