Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly

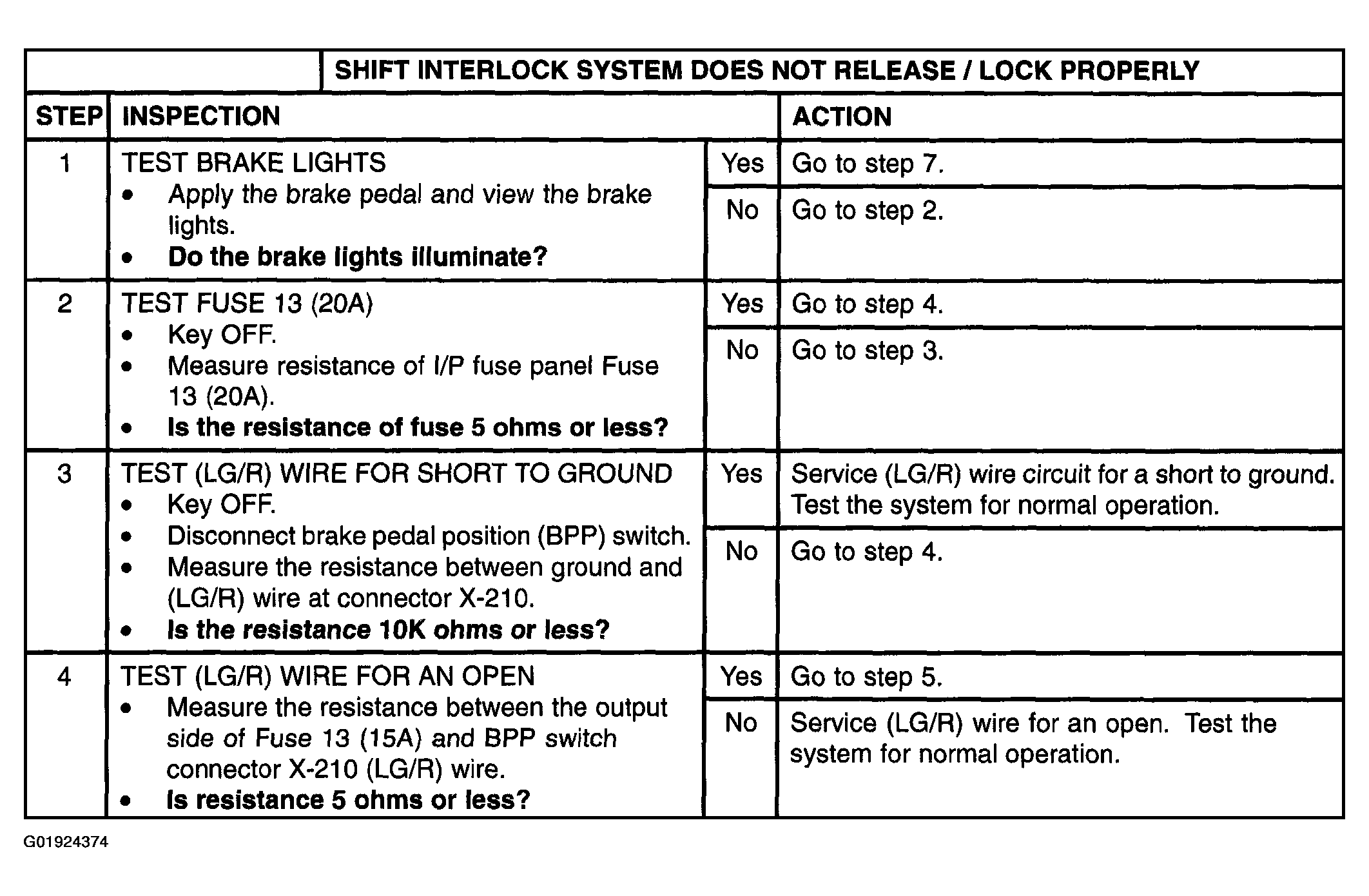

Fig 1: Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

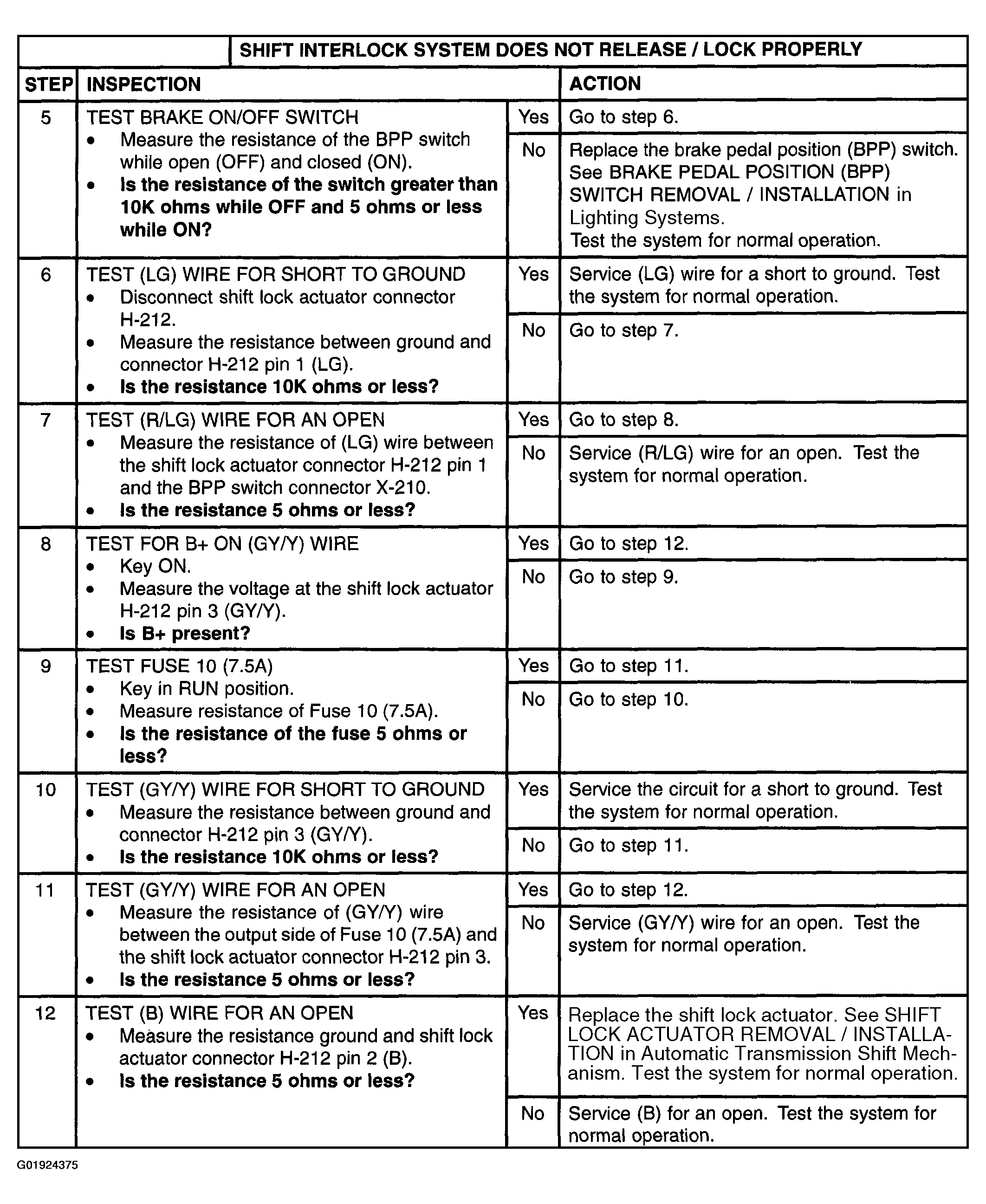

Fig 2: Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly (Steps 5-12)

Courtesy of MAZDA MOTORS CORP.

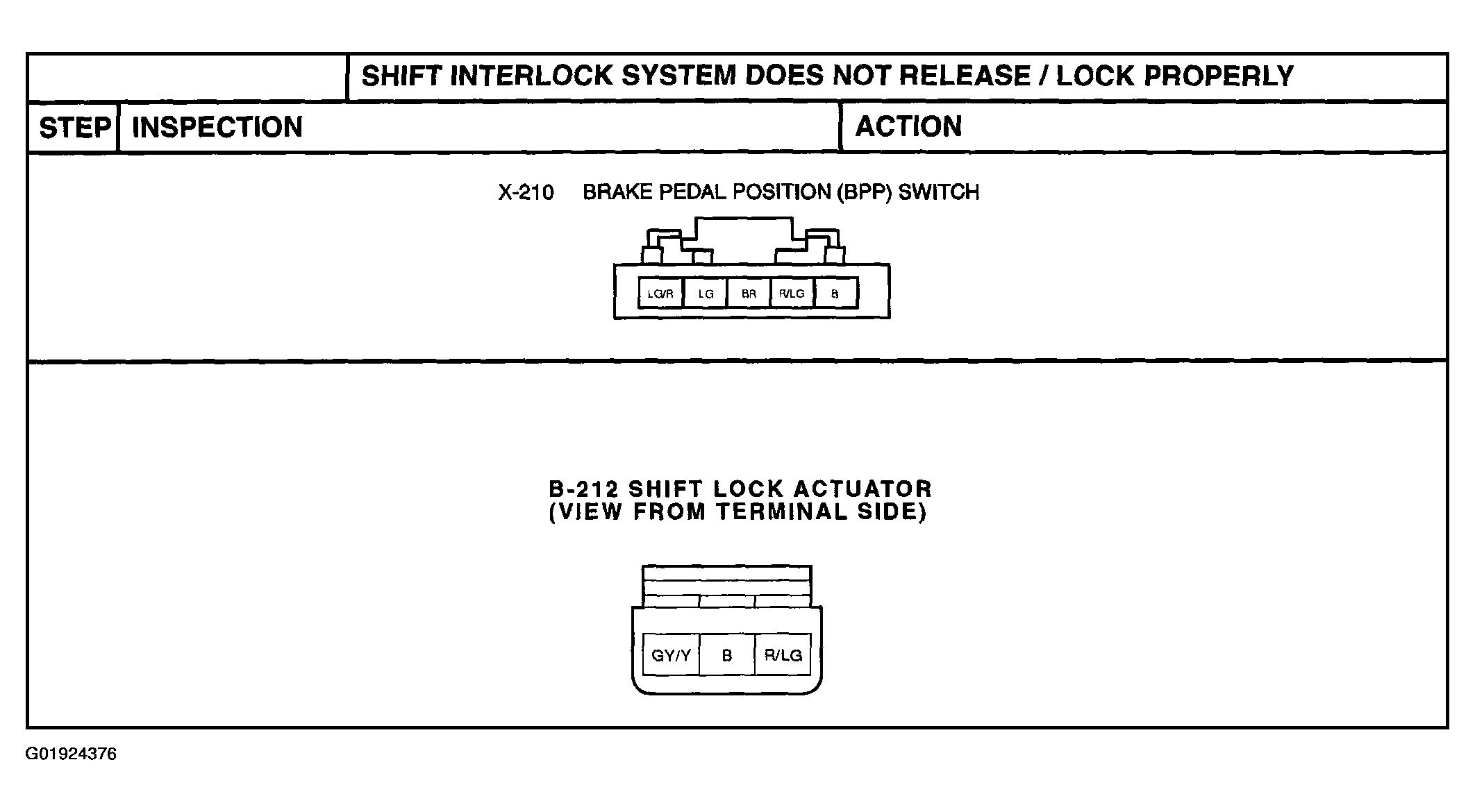

Fig 3: Identifying Brake Pedal Position Switch Connector & Shift Lock Actuator Connector Terminals)

Courtesy of MAZDA MOTORS CORP.
