Pinpoint Test 2: No Communication With The 4WD Control Module

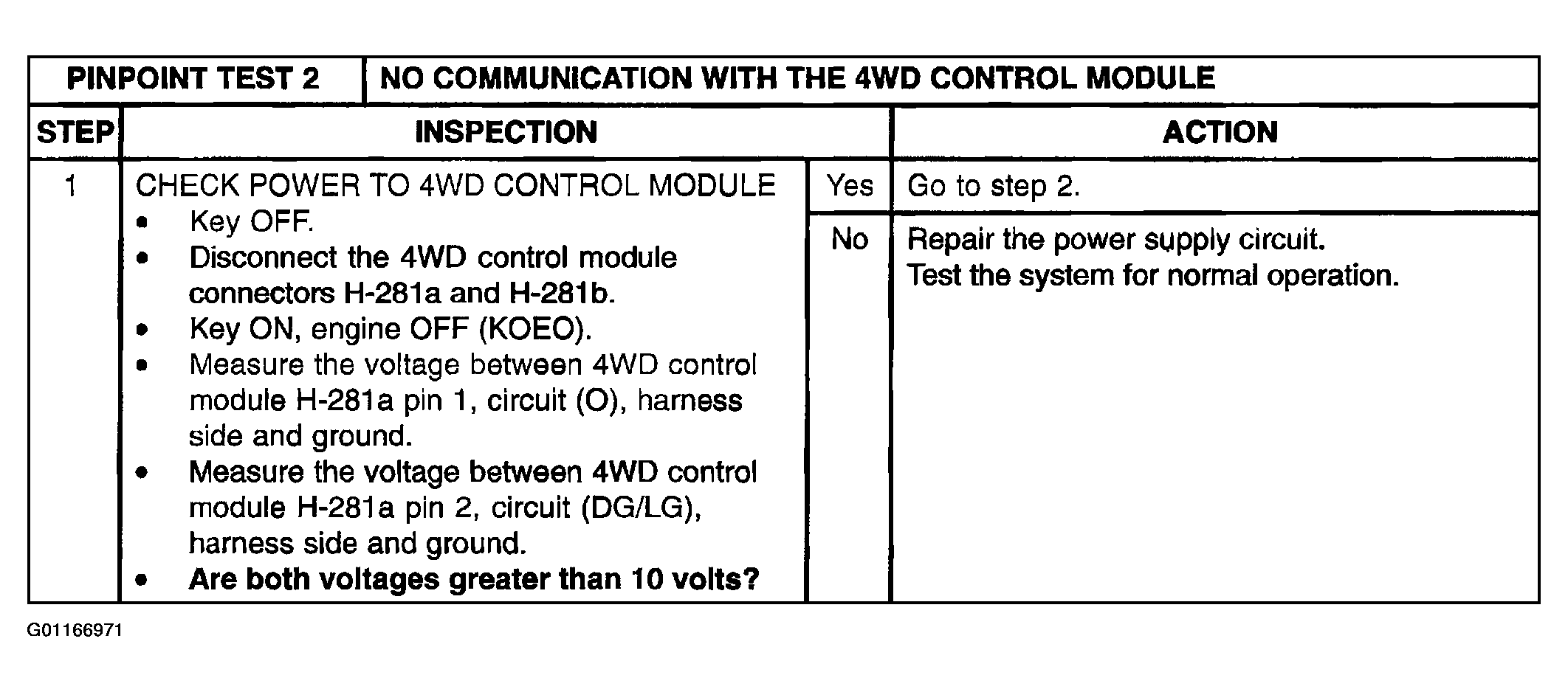

Fig 1: Pinpoint Test 2: No Communication With The 4WD Control Module (Step 1)
G01166971Courtesy of MAZDA MOTORS CORP.

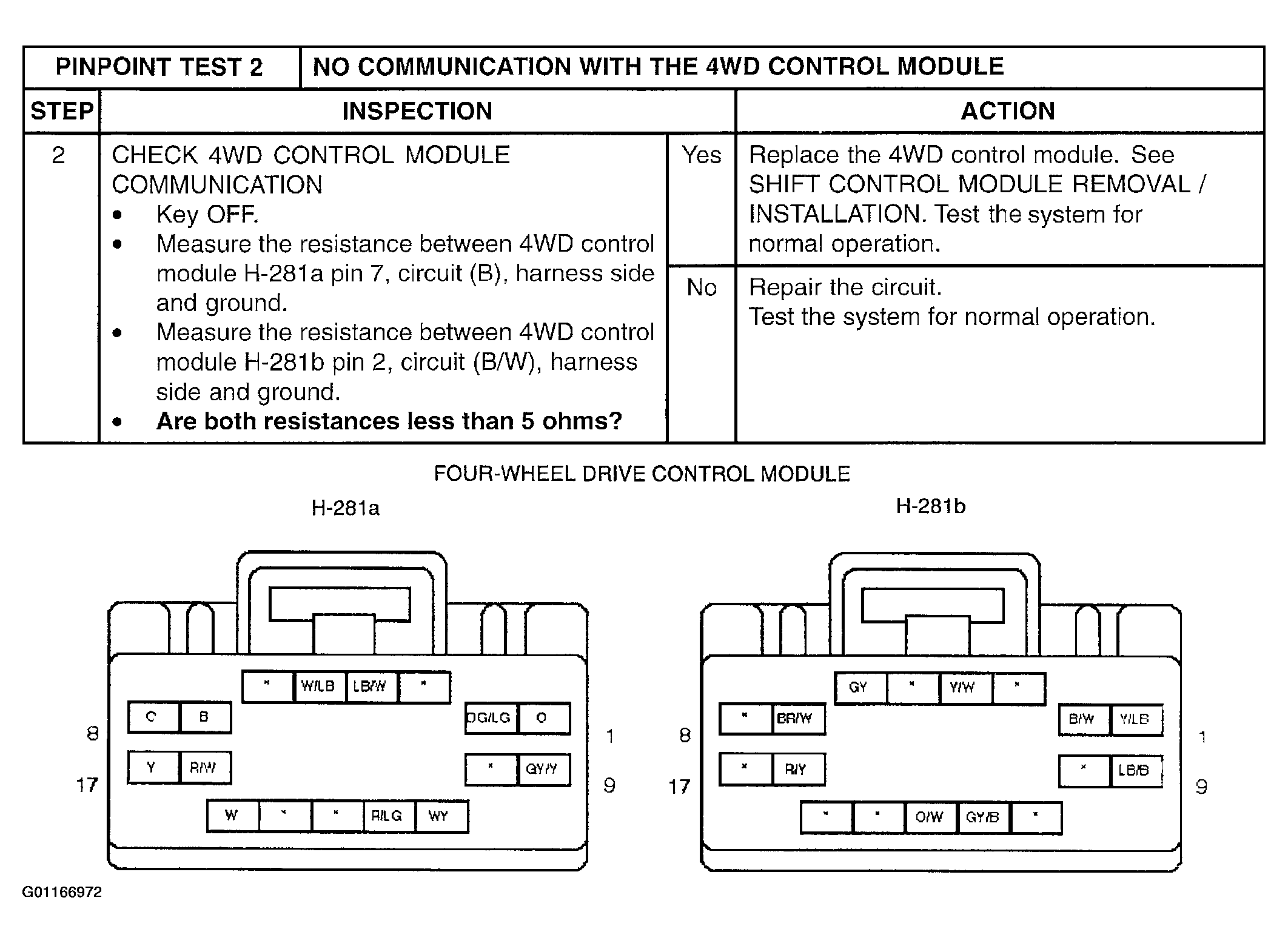

Fig 2: Pinpoint Test 2: No Communication With The 4WD Control Module (Step 2 & 4WD Control Module Terminal Identification)
G01166972Courtesy of MAZDA MOTORS CORP.
