Shift Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the passenger cowl side trim panel.

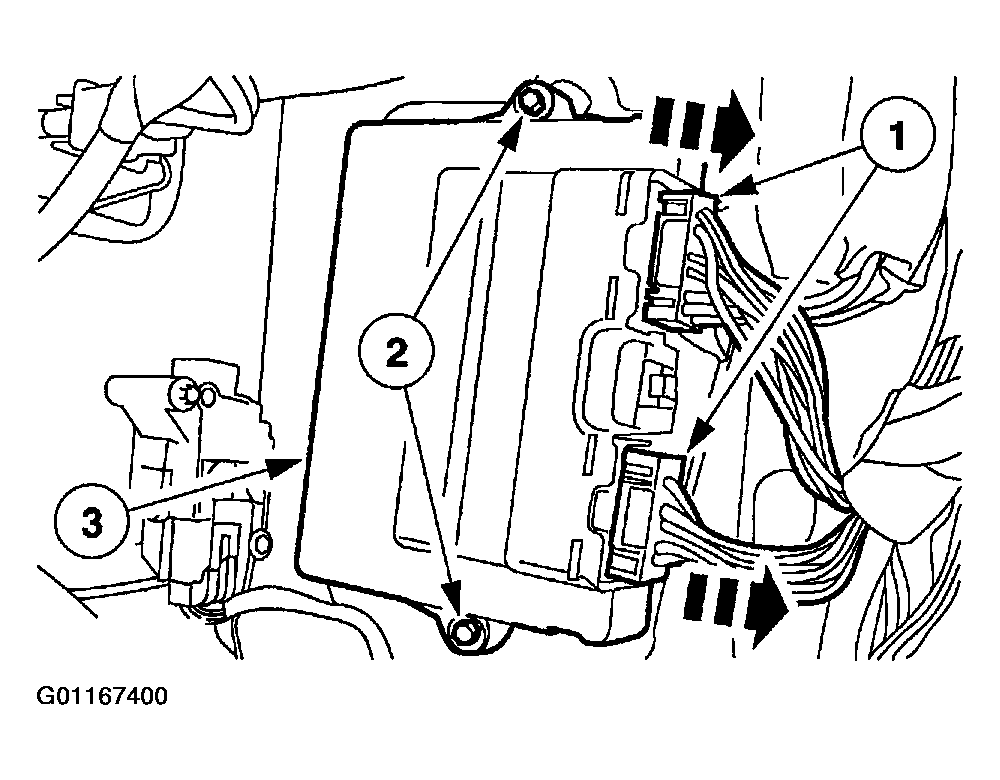

    Fig 1: Removing 4WD Control Module
    G01167400Courtesy of MAZDA MOTORS CORP.
  3. Remove the 4WD control module.
    1. Disengage the locking tangs and remove the harness connectors.
    2. Remove the screws.
    3. Remove the 4WD control module.
  4. Install in reverse order of removal.
