Power Window Main Switch Inspection
>>
Rear right
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Rear right

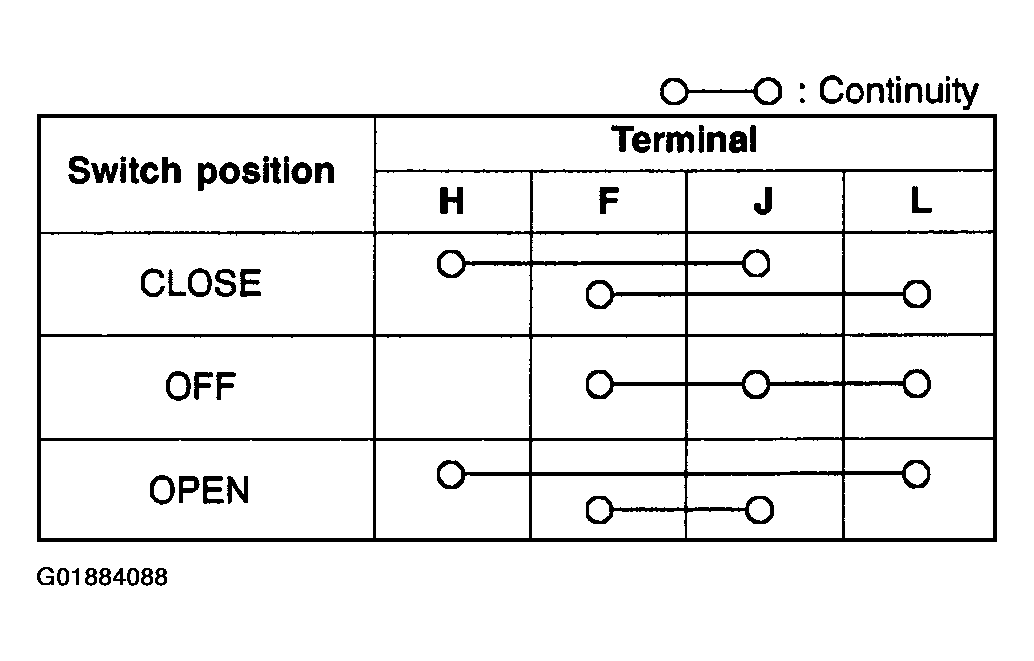

Fig 1: Power Window Switch Continuity/Position Table (Rear Right Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
