Checking Order

NOTE:
  • When inspecting more than two check codes, perform the inspection by following the priority order of inspection indicated in the chart below.

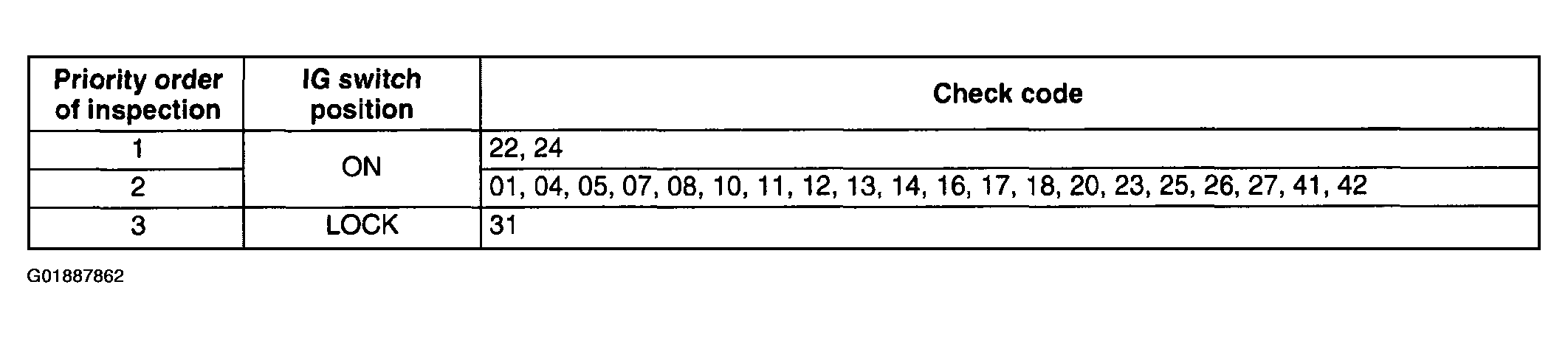

Fig 1: Checking Order Chart
G01887862Courtesy of MAZDA MOTORS CORP.
