Instrument Cluster Input/Output Check Mode
>>
Operating Order
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Operating Order

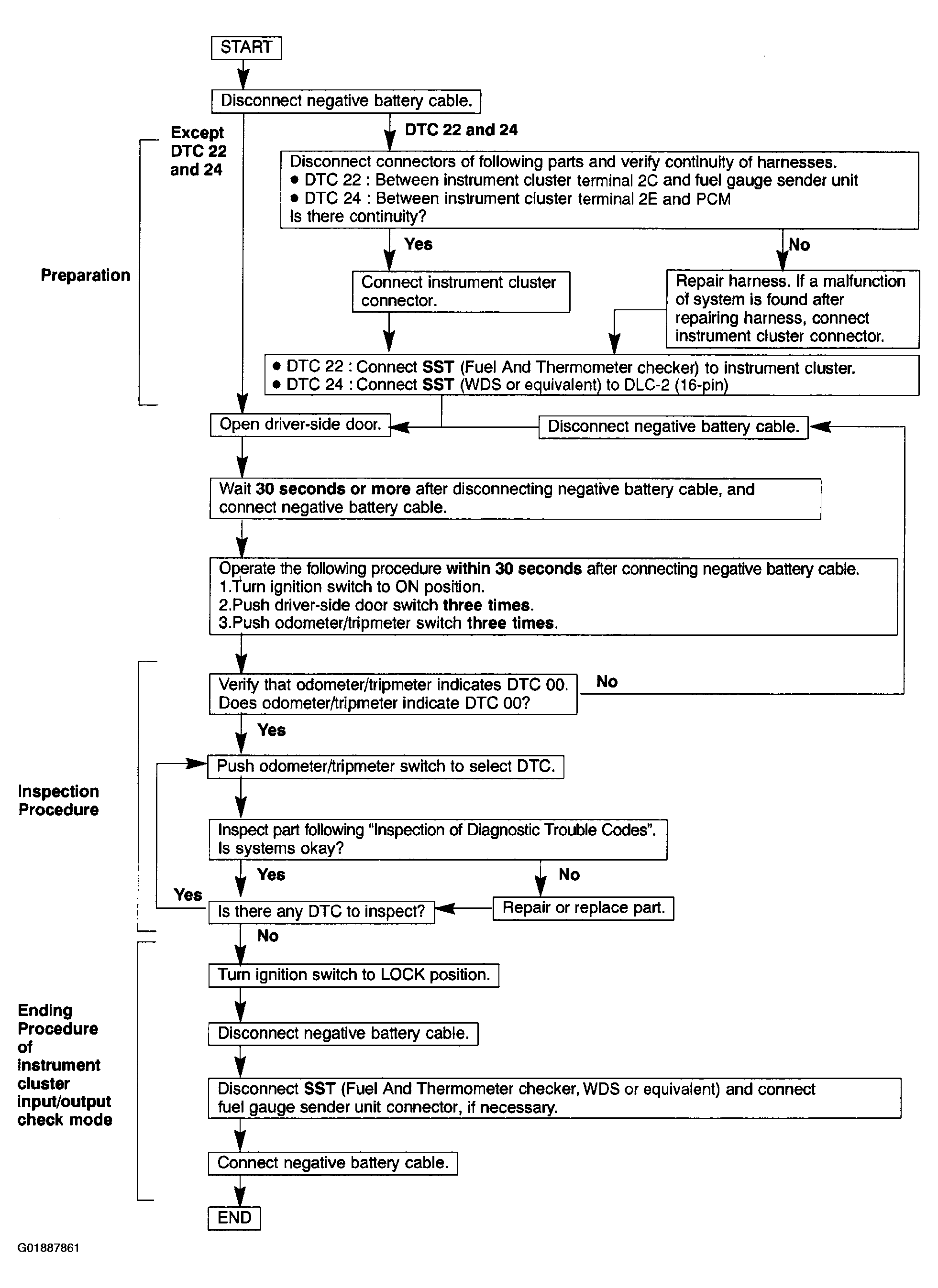

Fig 1: Instrument Cluster Input/Output Diagnostic Procedure Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
