Instrument Cluster Removal/Installation: Notes

Disconnect the negative battery cable.
Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
Remove the meter hood.
Pull down the selector lever to the D range position.
Remove in the order indicated.

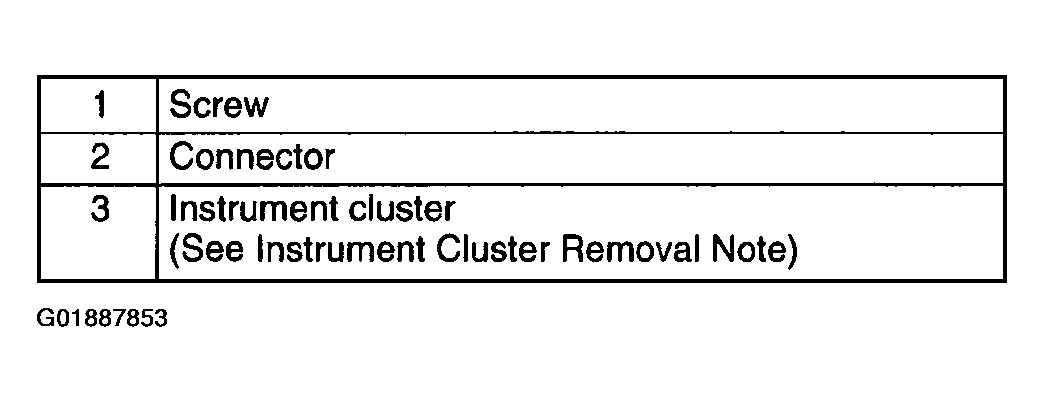

Fig 1: Identifying Instrument Cluster Components
Courtesy of MAZDA MOTORS CORP.

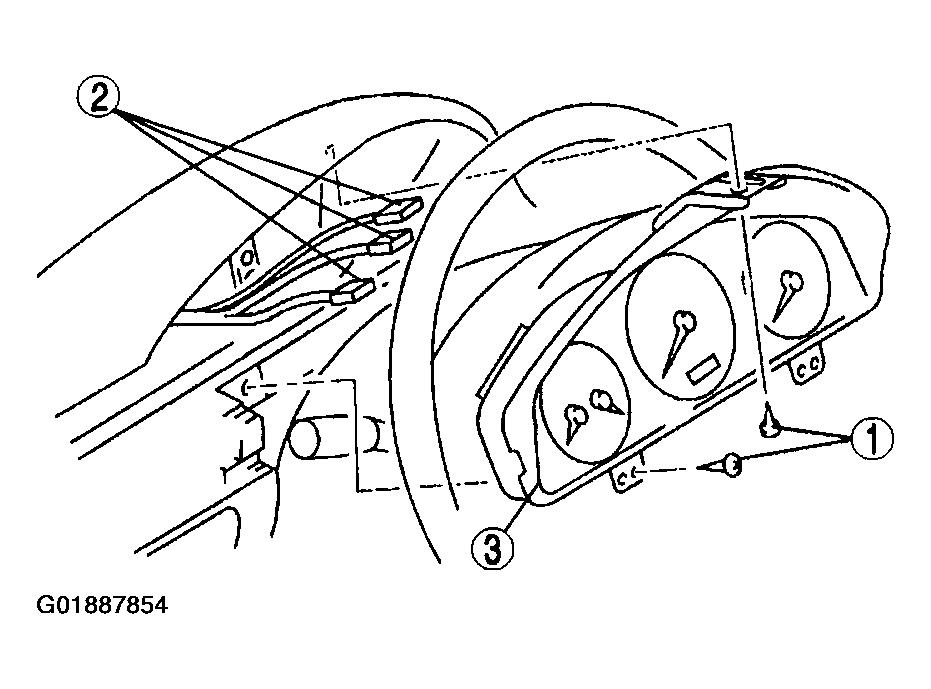

Fig 2: Instrument Cluster Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
