Fuel System Pressure Release: Mazda6

WARNING: Fuel in the fuel system is under high pressure even when the engine is not running.
  1. Remove the fuel-filler cap and release the pressure in the fuel tank.
  2. Remove the fuel pump relay. See Fig 1.
  3. Start the engine.
  4. After the engine stalls, crank the engine several times.
  5. Turn the ignition switch to the LOCK position.
  6. Install the fuel pump relay.

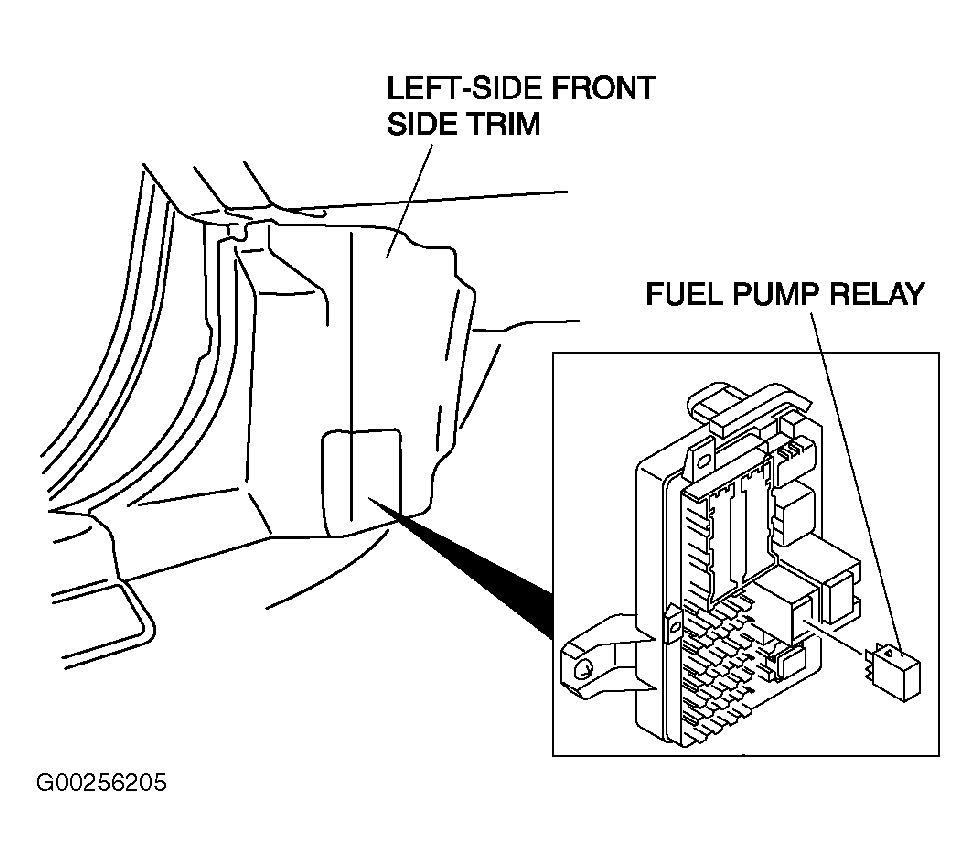

Fig 1: Locating Fuel Pump Relay - Mazda6
G00256205Courtesy of MAZDA MOTORS CORP.
