Door Glass And Guide Removal/Installation
- Lower or raise the front door glass so that the distance from the top of the front door glass at the molding is 225 mm {8.86 in}.
- Disconnect the negative battery cable.
- Remove the door screen. (See DOOR DISASSEMBLY/ASSEMBLY .)

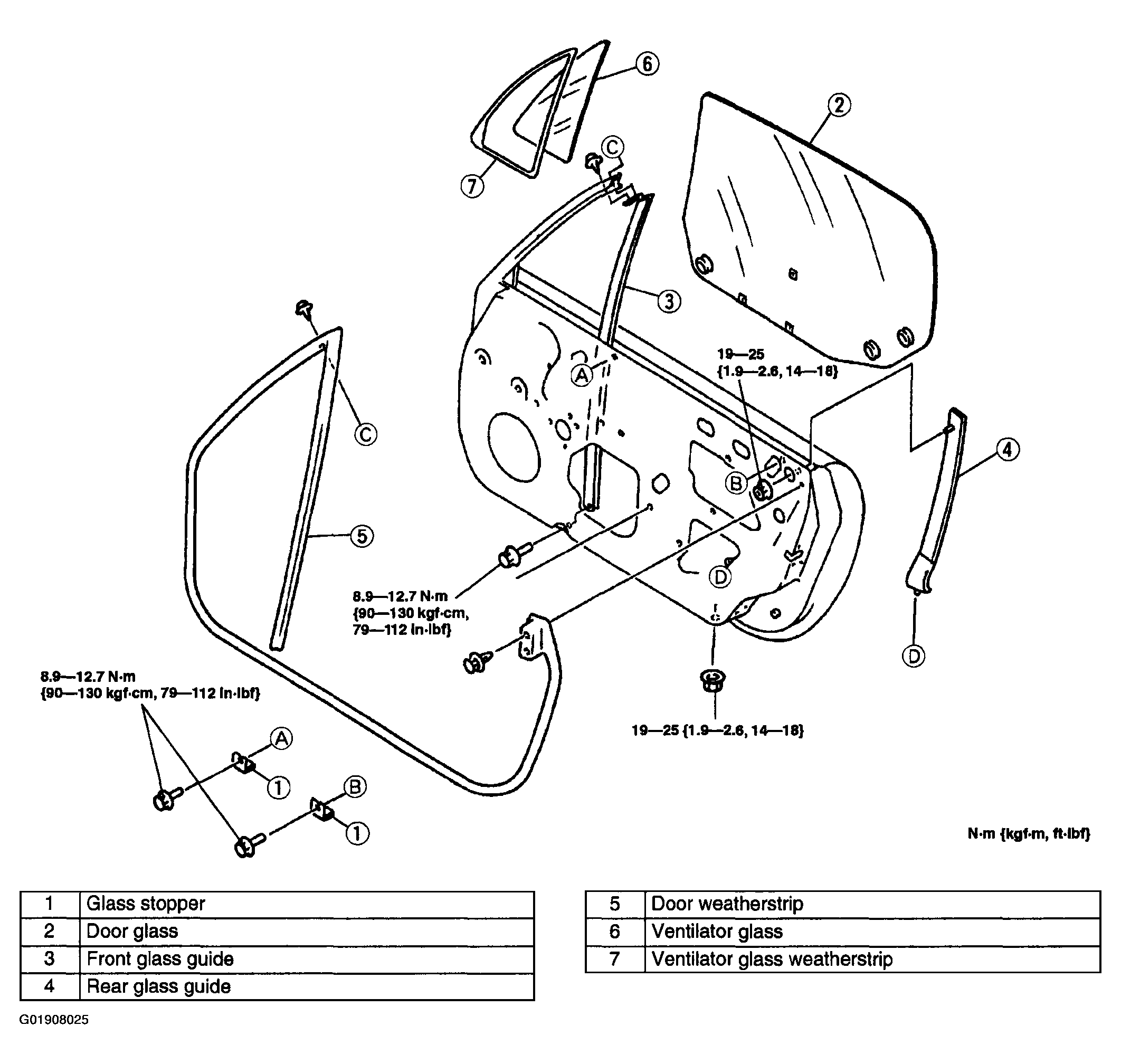

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- Adjust the door glass. (See DOOR GLASS ADJUSTMENT .)
