Power Outside Mirror Switch Inspection

  1. Remove the power outside mirror switch. (See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .)
  2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outside mirror switch.

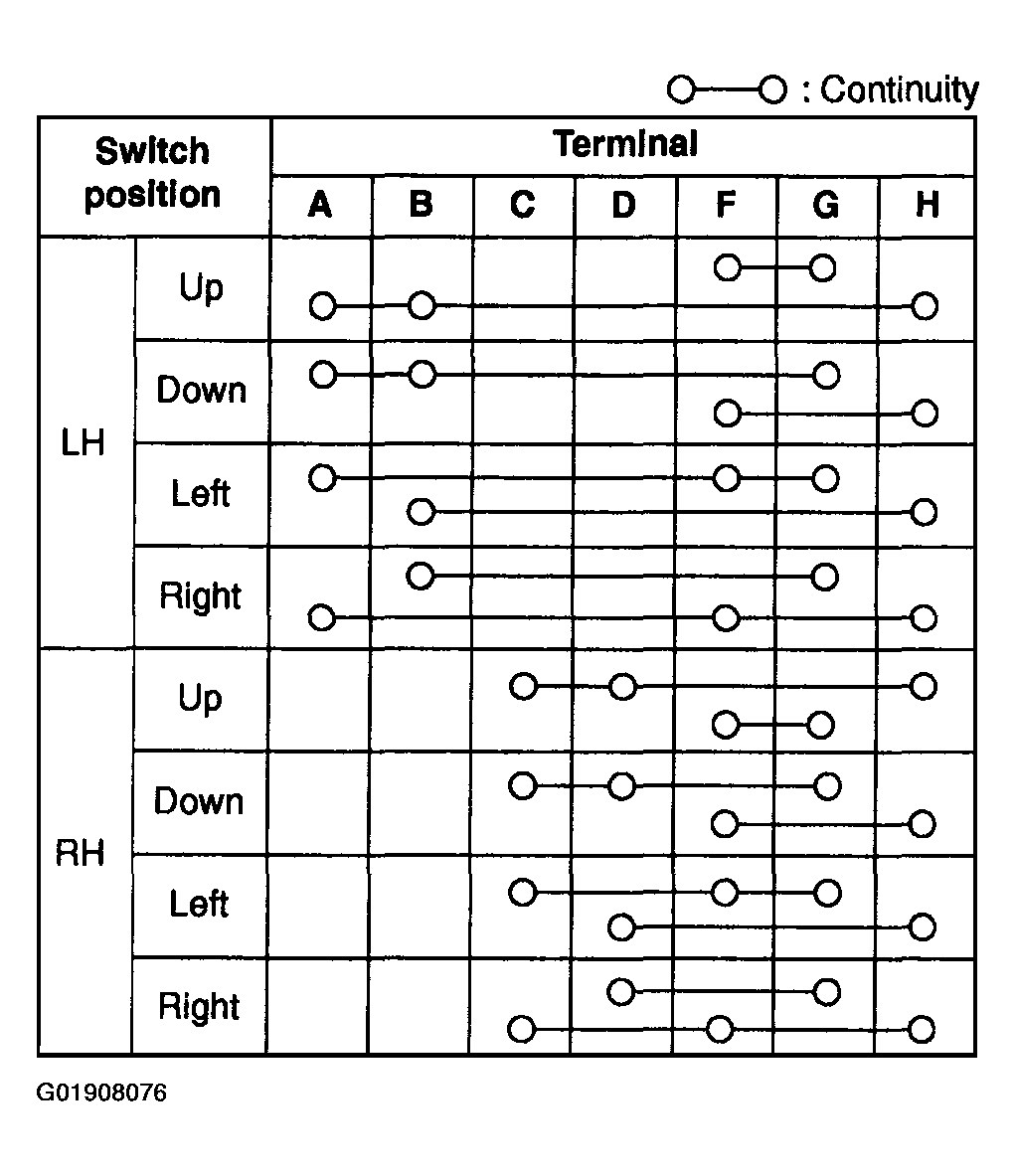

      Fig 1: Power Outside Mirror Switch Inspection (1 Of 2)
      G01908076Courtesy of MAZDA MOTORS CORP.

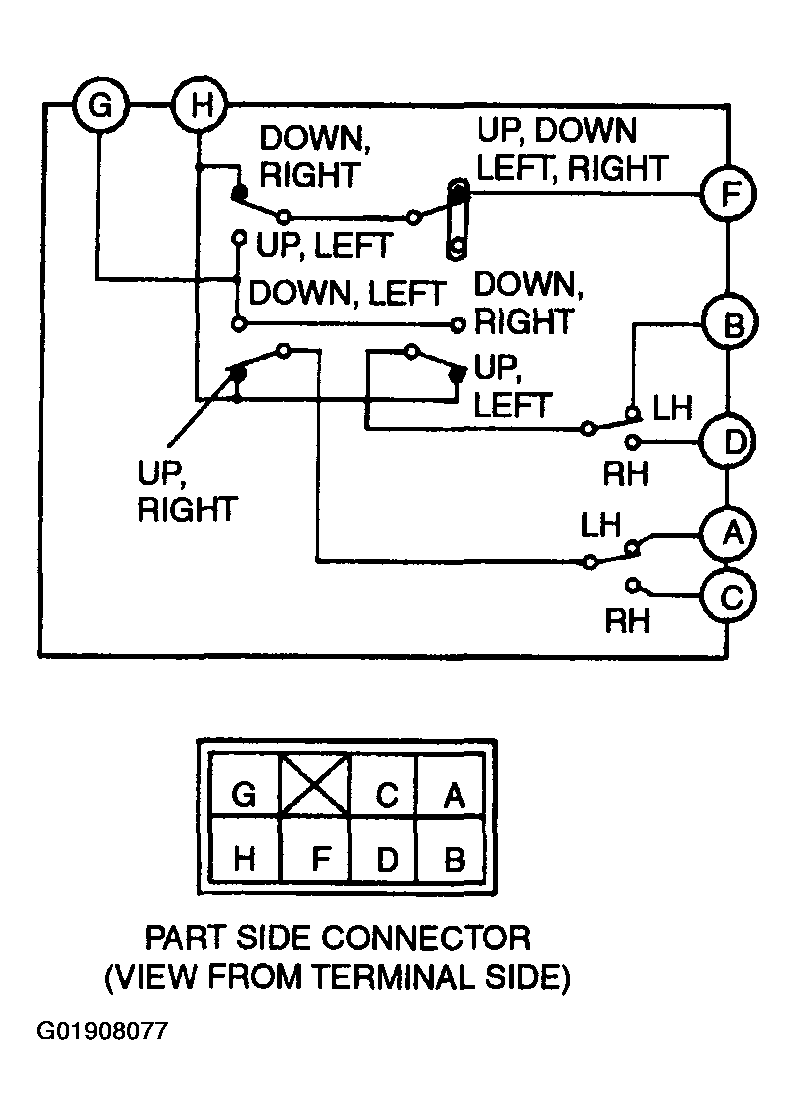

      Fig 2: Power Outside Mirror Switch Inspection (2 Of 2)
      G01908077Courtesy of MAZDA MOTORS CORP.
