Power Window Regulator Disassembly

Tighten the adjusting bolt with pliers and loosen the cable.

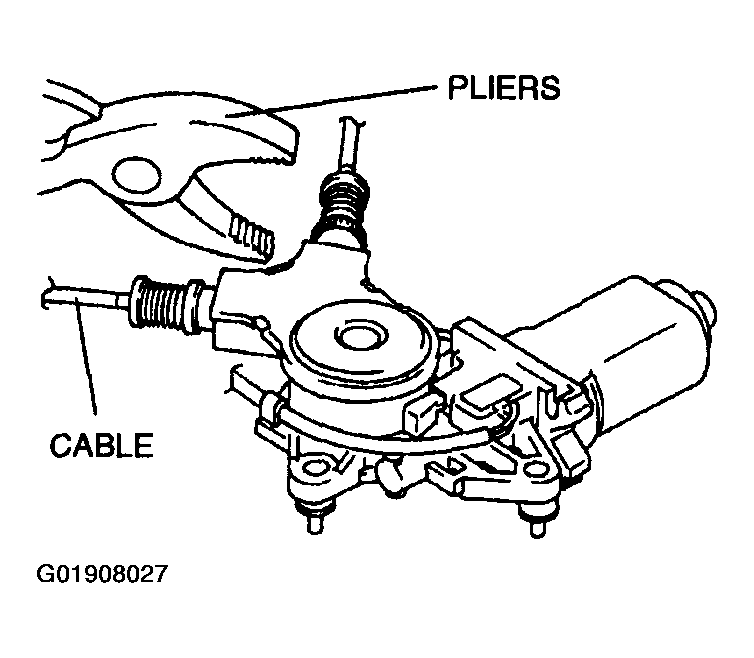

Fig 1: Loosening Cable
Courtesy of MAZDA MOTORS CORP.
Disassemble the lower cable guide from the lower bracket with pliers.

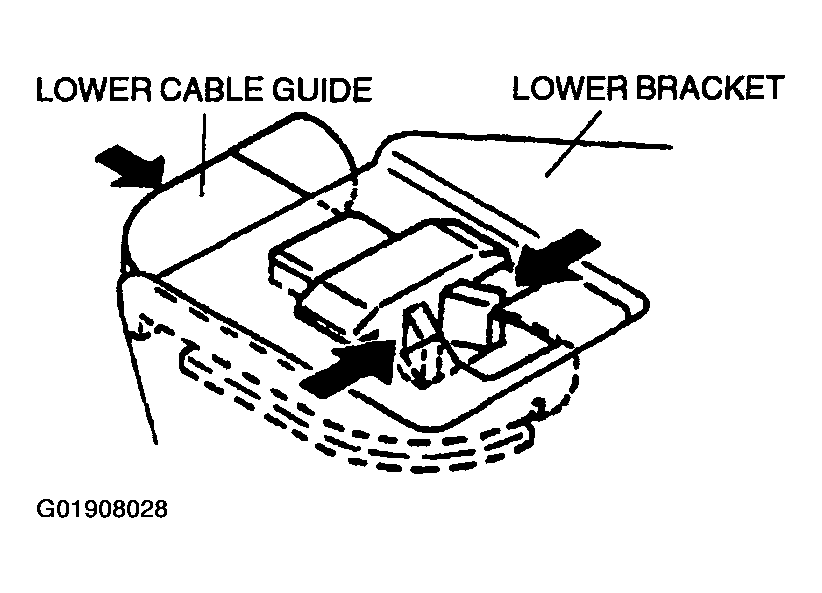

Fig 2: Disassembling Lower Cable Guide From Lower Bracket
Courtesy of MAZDA MOTORS CORP.
Disassemble the upper cable guide from the upper bracket.
Disassemble the drum cover.

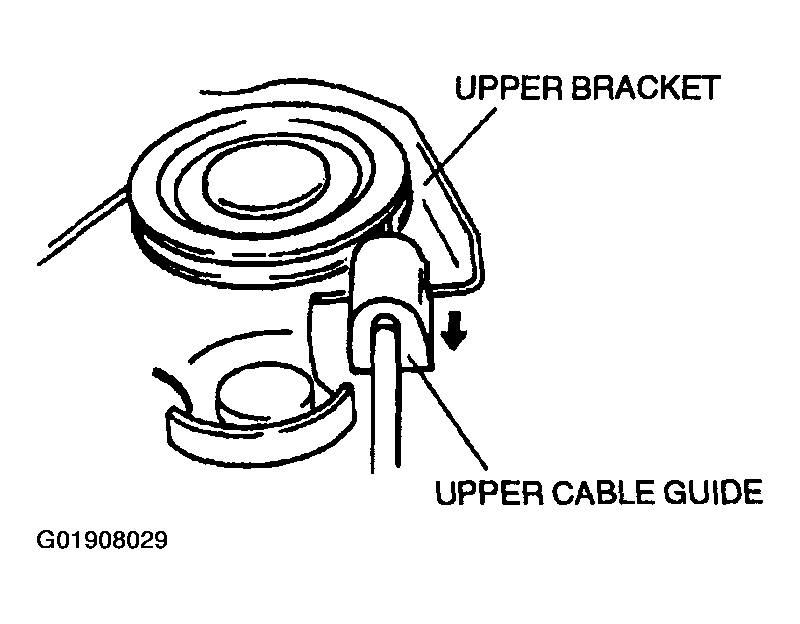

Fig 3: Disassembling Upper Cable Guide From Upper Bracket
Courtesy of MAZDA MOTORS CORP.
Take out the drum and disassemble the cable.

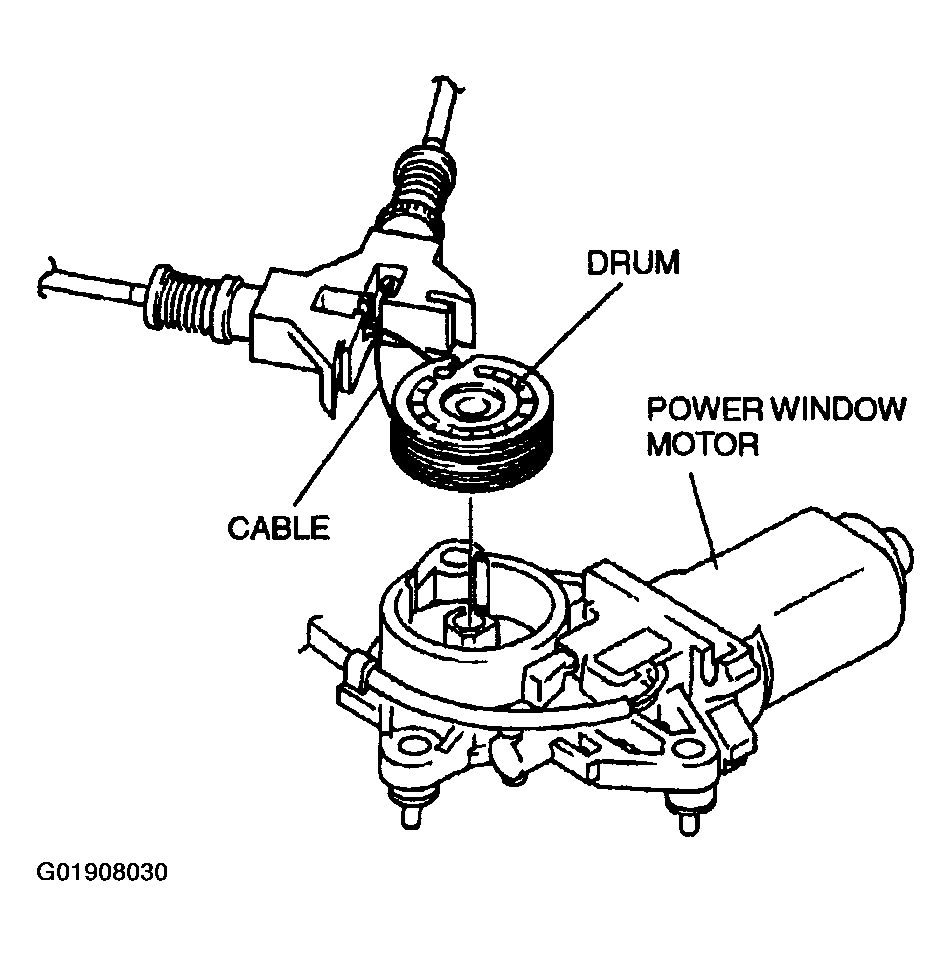

Fig 4: Taking Out Drum & Disassembling Cable
Courtesy of MAZDA MOTORS CORP.
Pull the ends of the cables and disassemble from the carrier plate one at a time.
Disassemble the adjusting bolts.

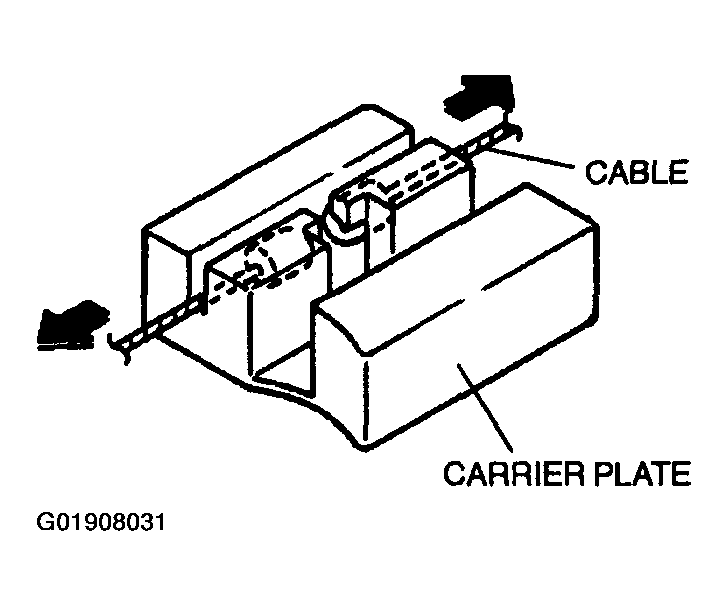

Fig 5: Pulling Ends Of Cables & Disassembling From Carrier Plate
Courtesy of MAZDA MOTORS CORP.
