Power Window Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the power window switch using a flathead screwdriver wrapped with protective tape as shown in the figure.

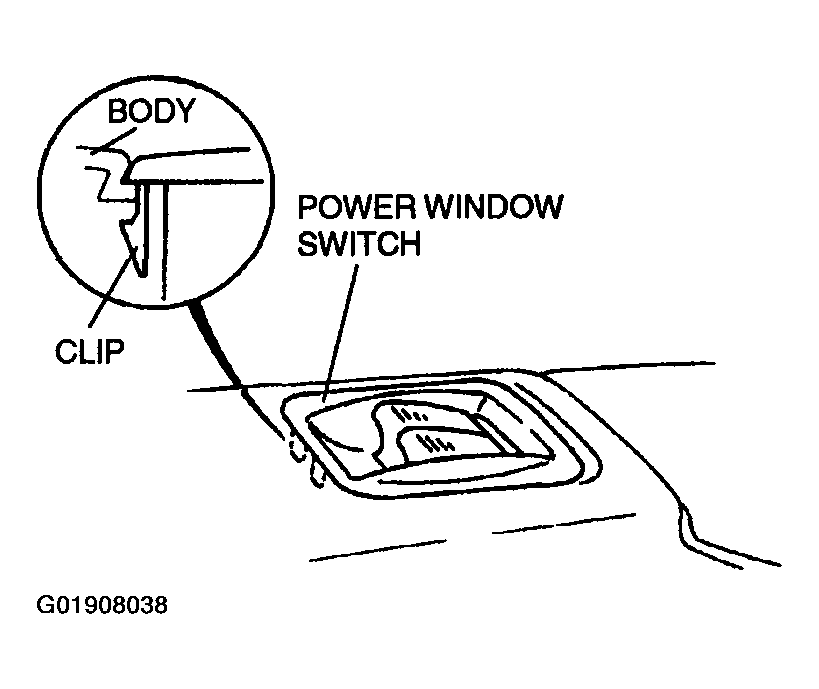

    Fig 1: Removing Power Window Switch
    G01908038Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
