Wheel Alignment Pre-Inspection
- Inspect the tire inflation, and adjust to the recommended pressure as necessary.
- Inspect the front wheel bearing play and correct as necessary.
- Inspect the wheel and tire runouts.
- Inspect the ball joints and steering linkage for excessive looseness.
- The vehicle must be on level ground and carry no luggage or passengers.

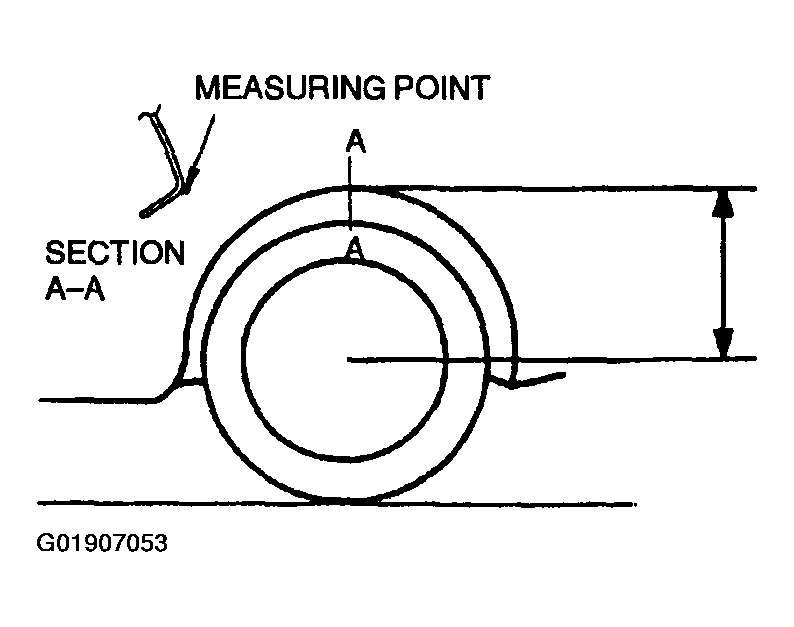

- Measure the height from the center of the wheel to the fender brim. The difference between the left and right measurement must not exceed 10 mm {0.39 in}.
Courtesy of MAZDA MOTORS CORP.
