Engine Compartment Fuse Block

NOTE: Engine compartment fuse block is located on left side of engine compartment. See Fig 1 .

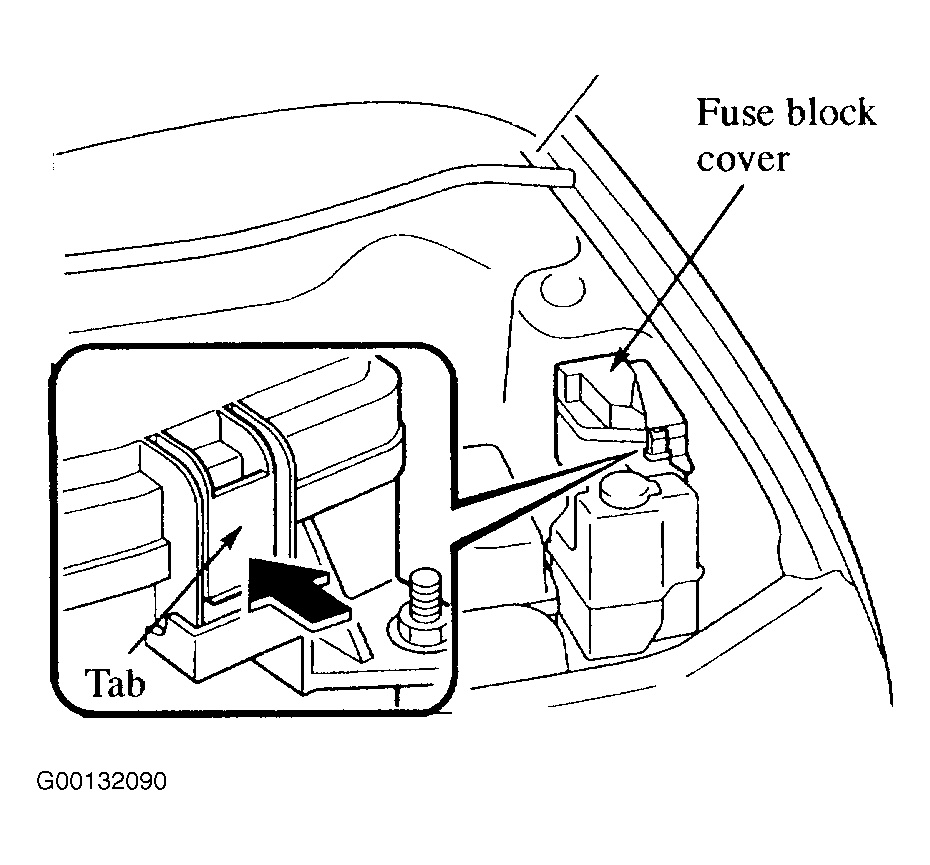

Fig 1: Locating Engine Compartment Fuse Block

Courtesy of MAZDA MOTORS CORP.

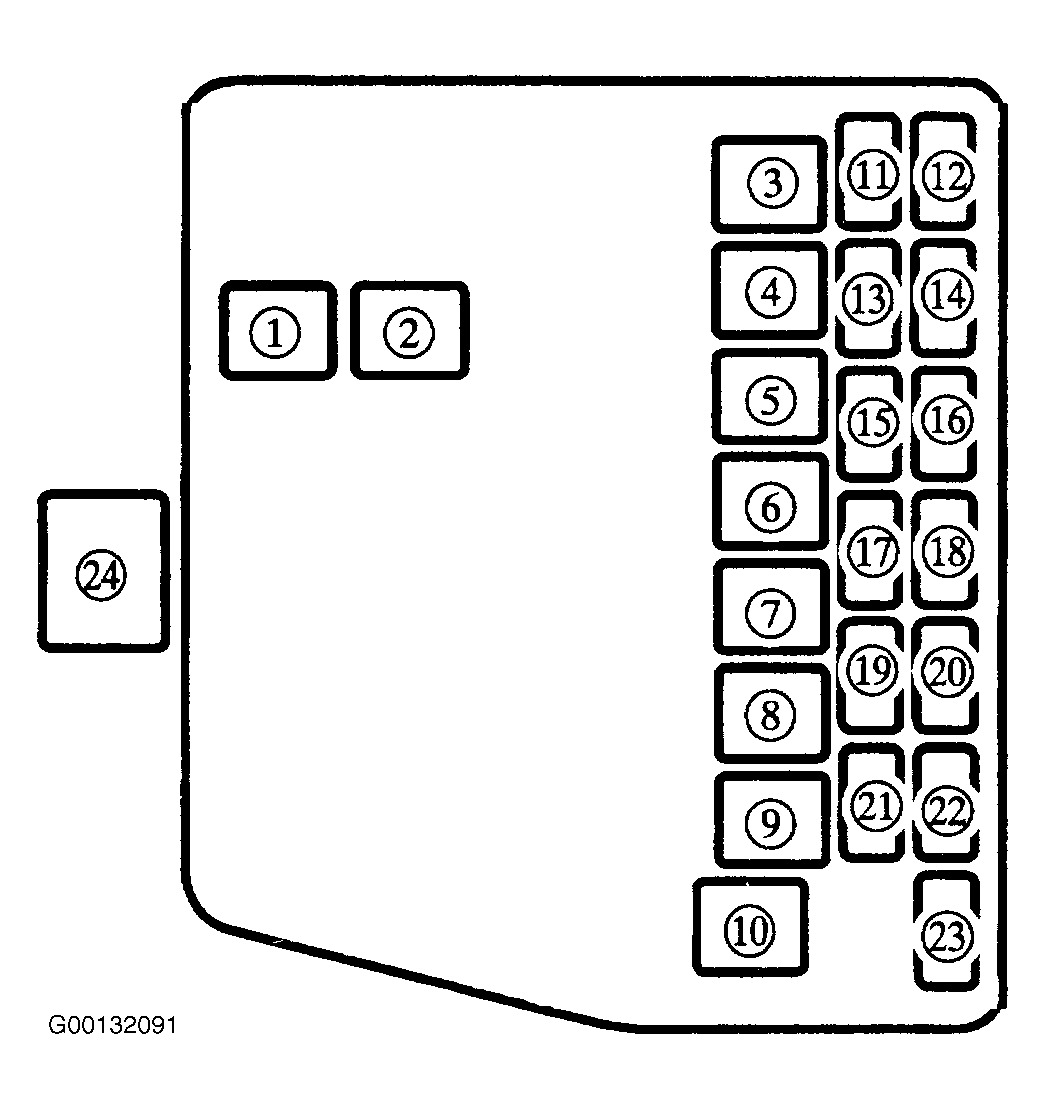

Fig 2: Identifying Engine Compartment Fuse Block Components

Courtesy of MAZDA MOTORS CORP.

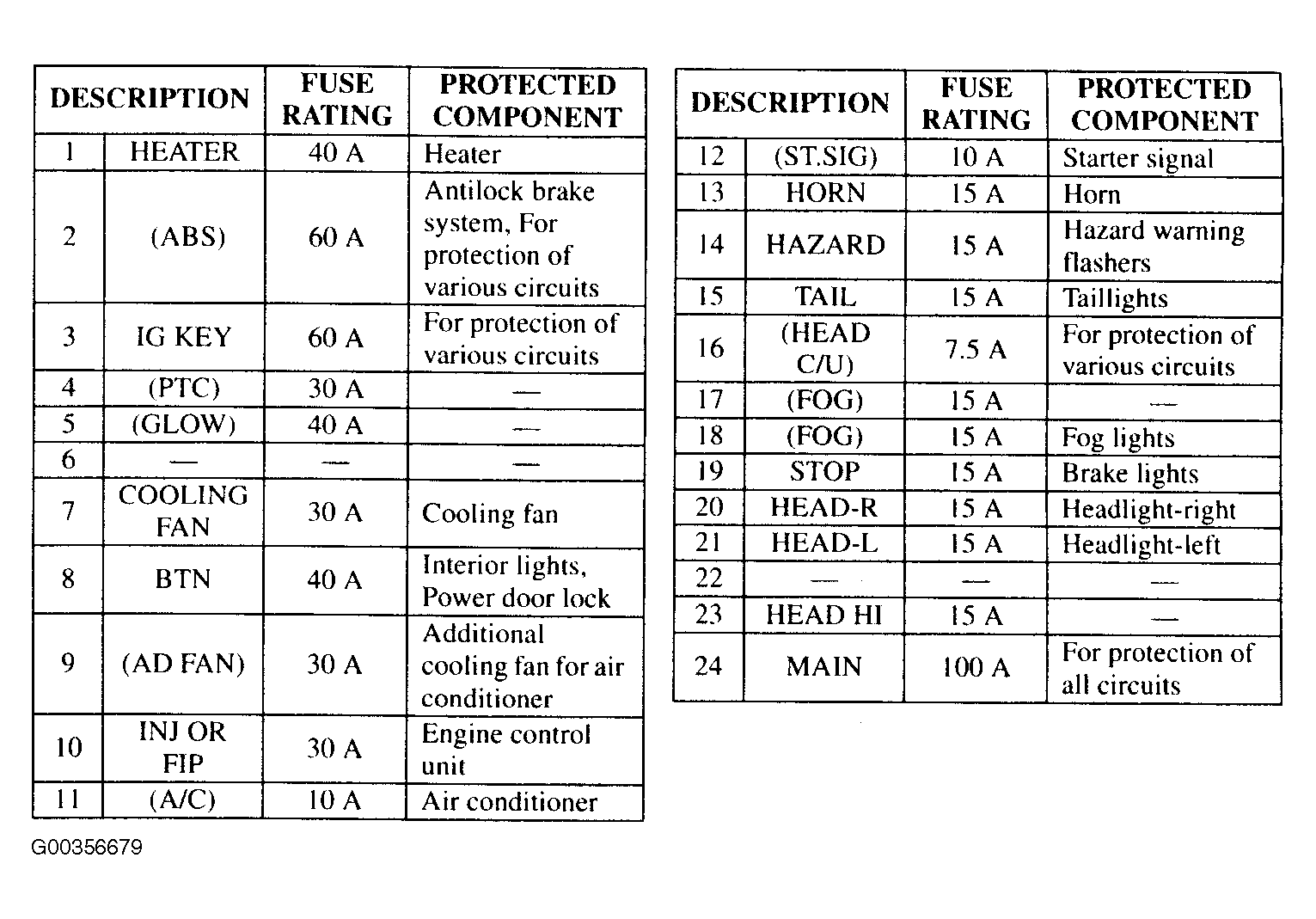

Fig 3: Engine Compartment Legend

Courtesy of MAZDA MOTORS CORP.
