EC-At Control System (FS)/Engine Control System (FS) 2.0L)

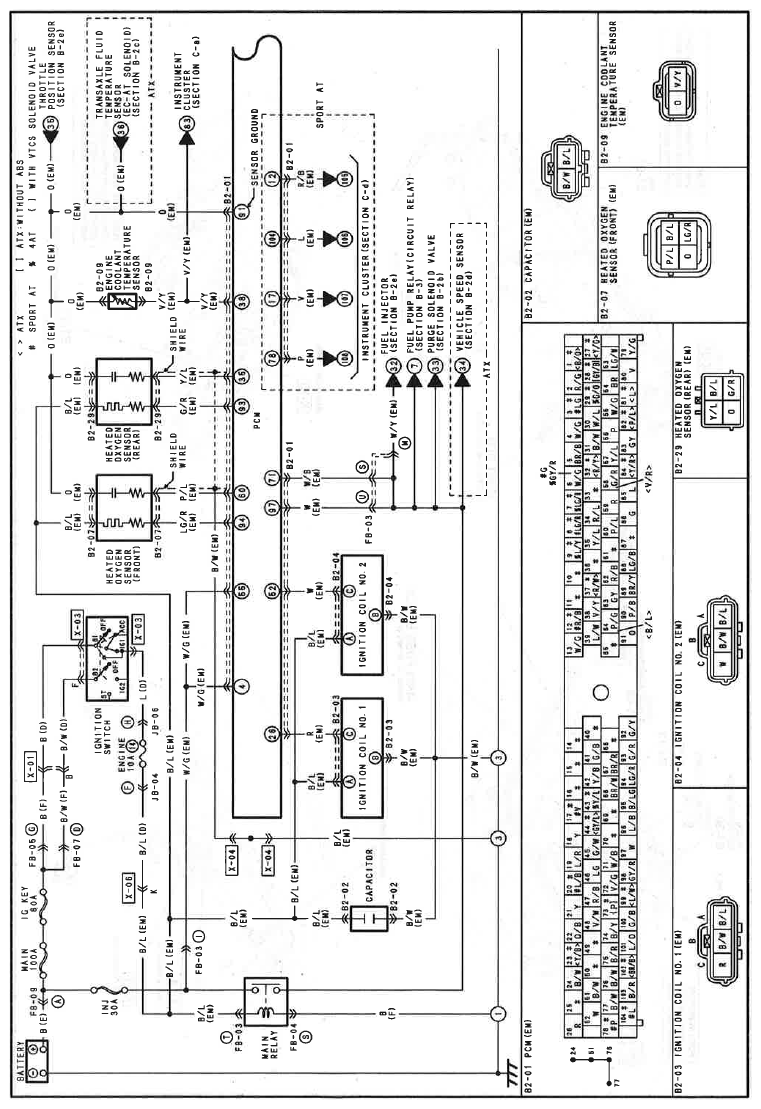

Fig 1: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1A; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

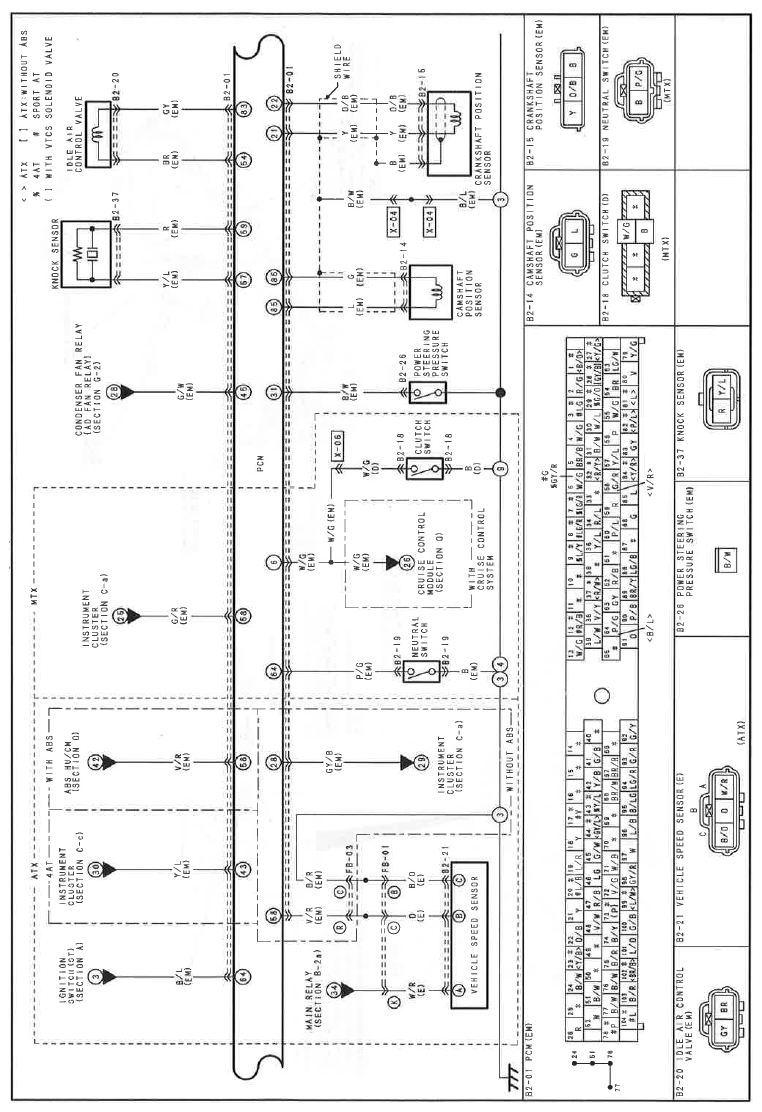

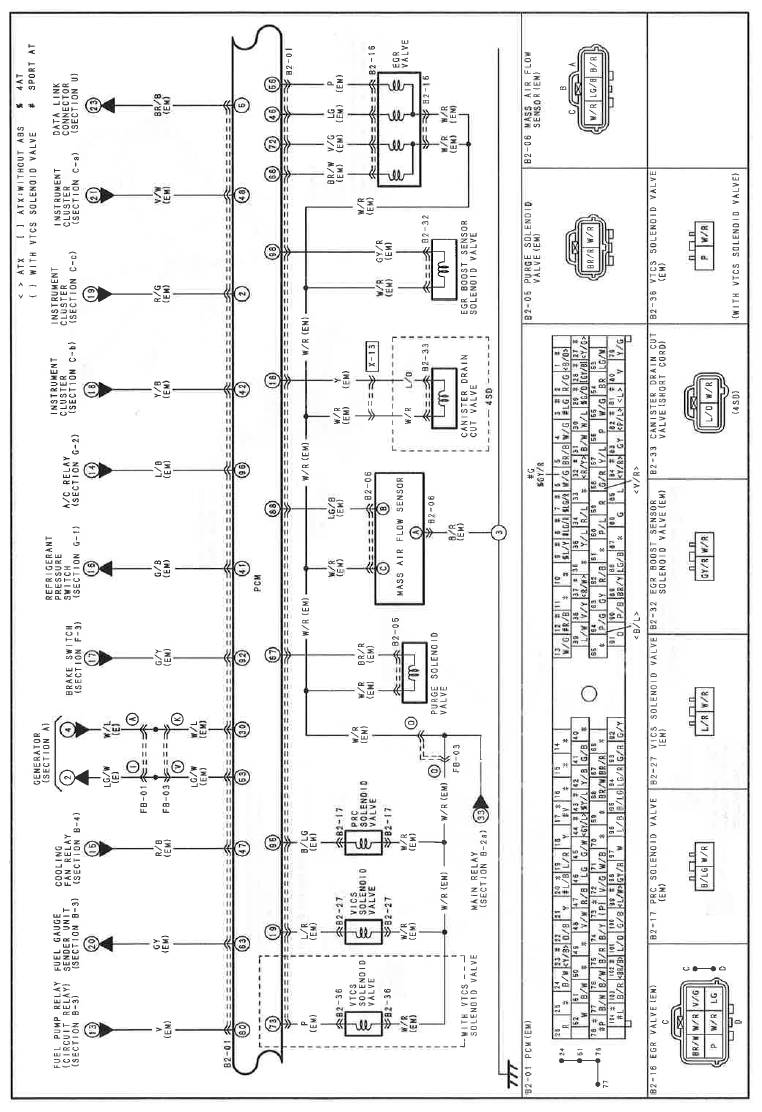

Fig 2: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1A; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

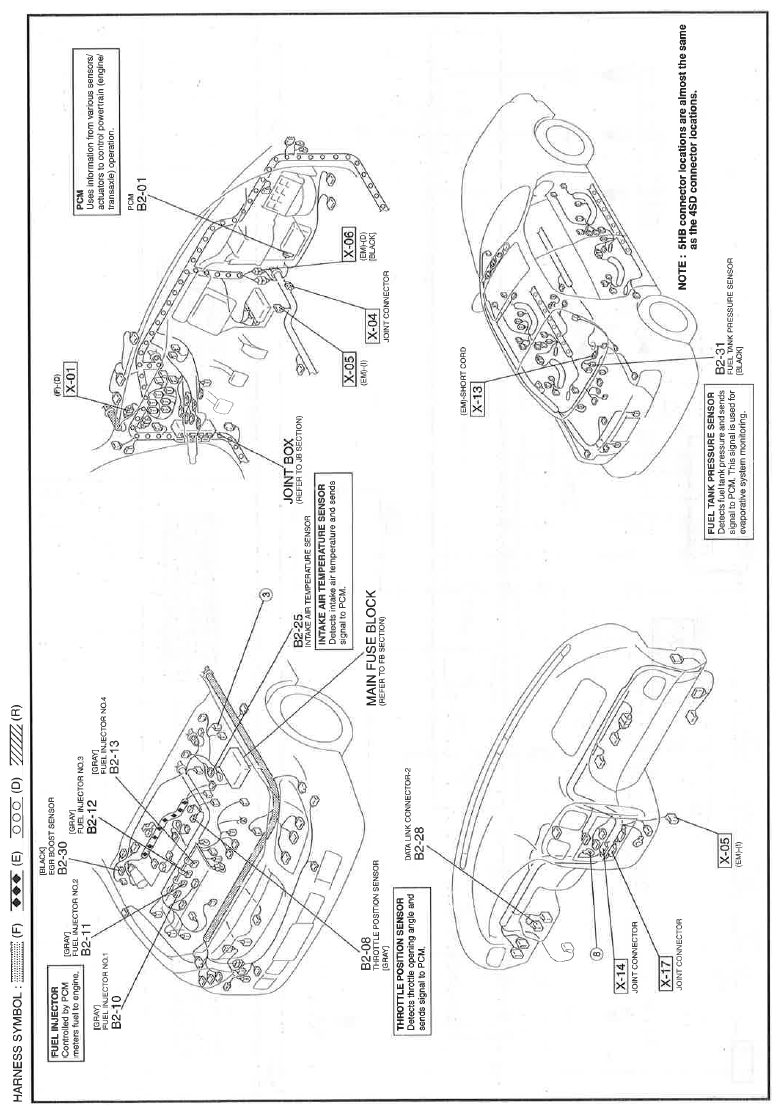

Fig 3: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1B; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

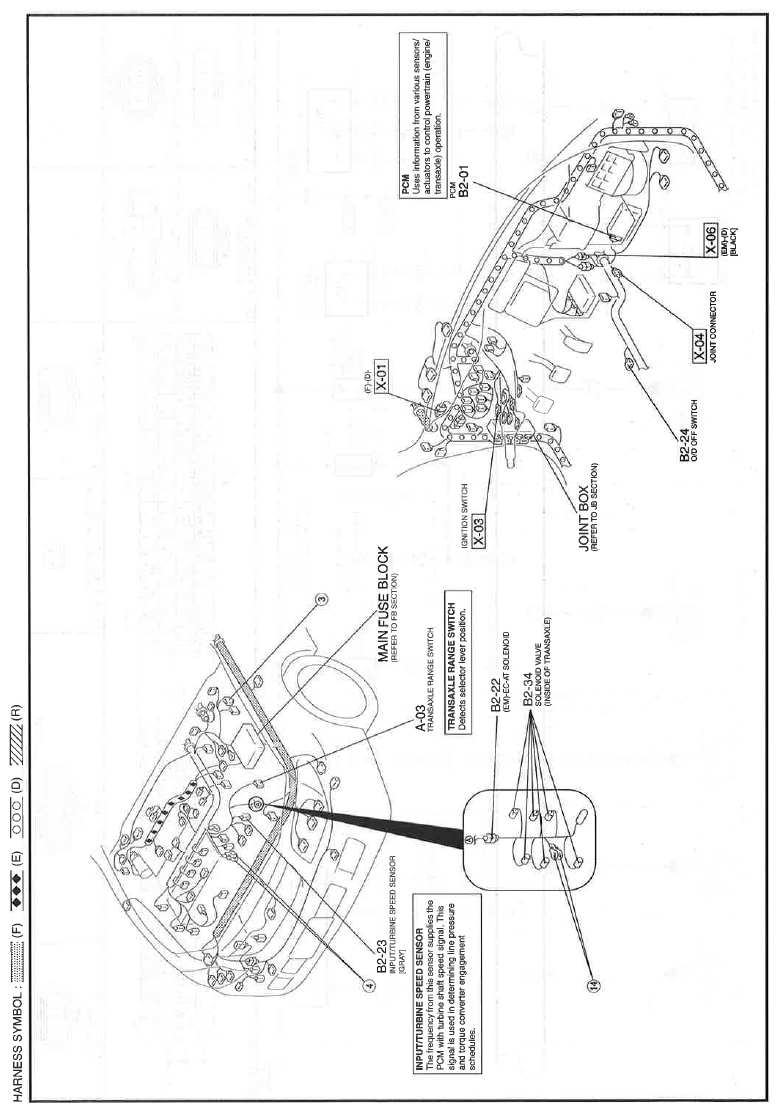

Fig 4: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1B; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

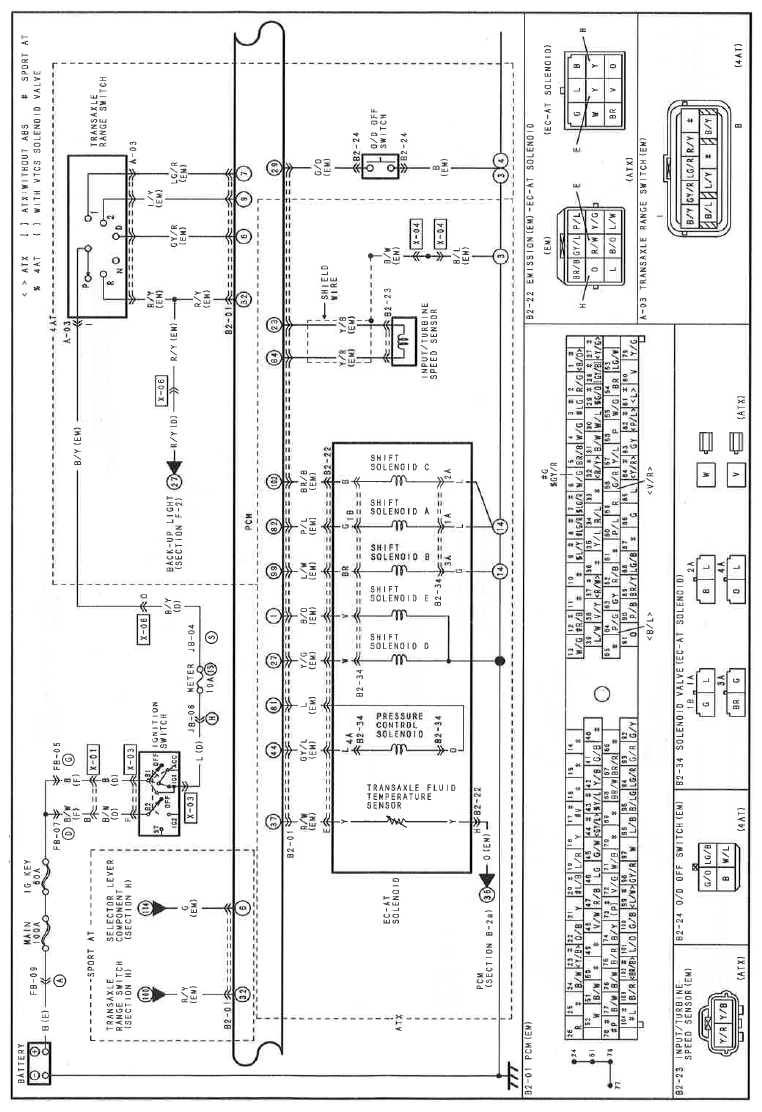

Fig 5: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1C; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

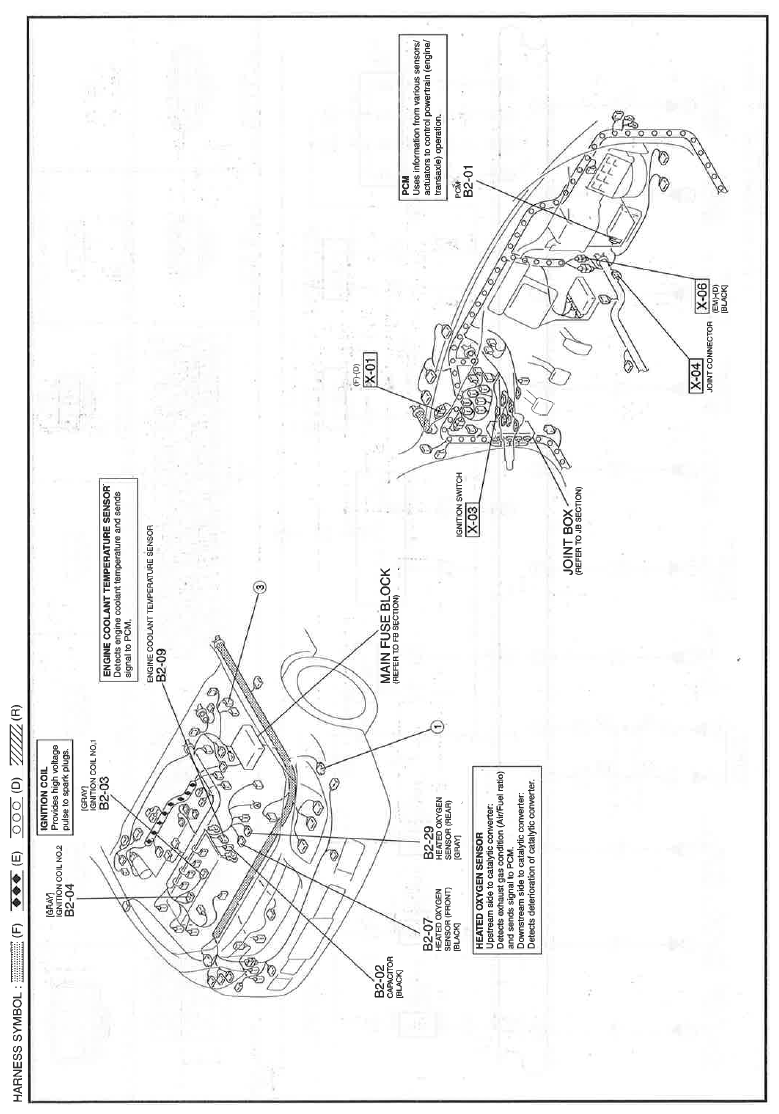

Fig 6: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1C; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

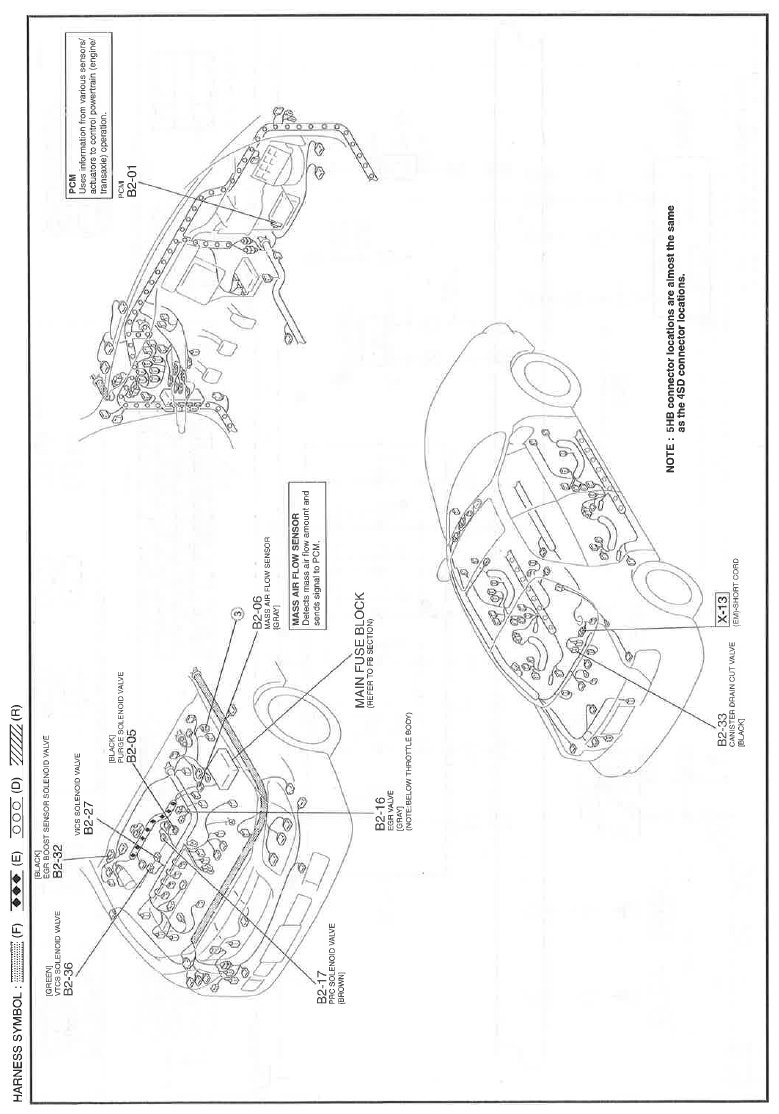

Fig 7: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1D; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

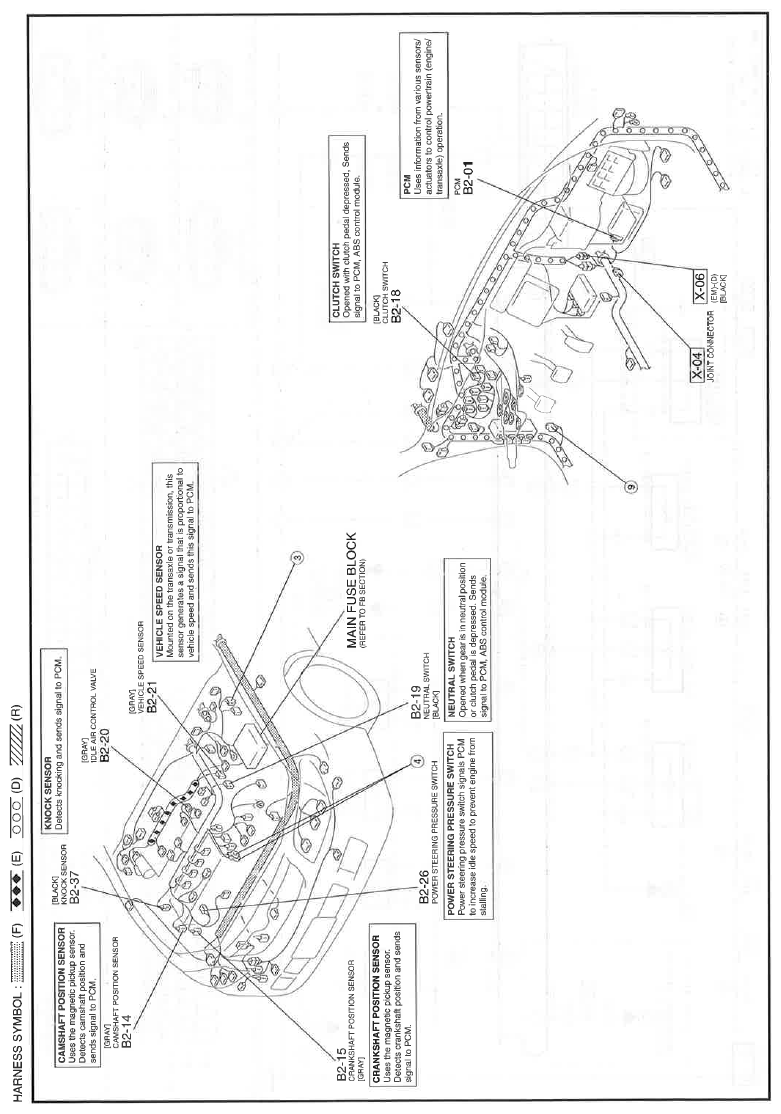

Fig 8: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1D; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 9: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1E; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 10: EC-AT Control System (FS)/Engine Control System (2.0L) Wiring Diagram (B-1E; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
