Oil Pump Disassembly/Assembly: Notes

Remove the oil pump. (See OIL PUMP REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the figure.

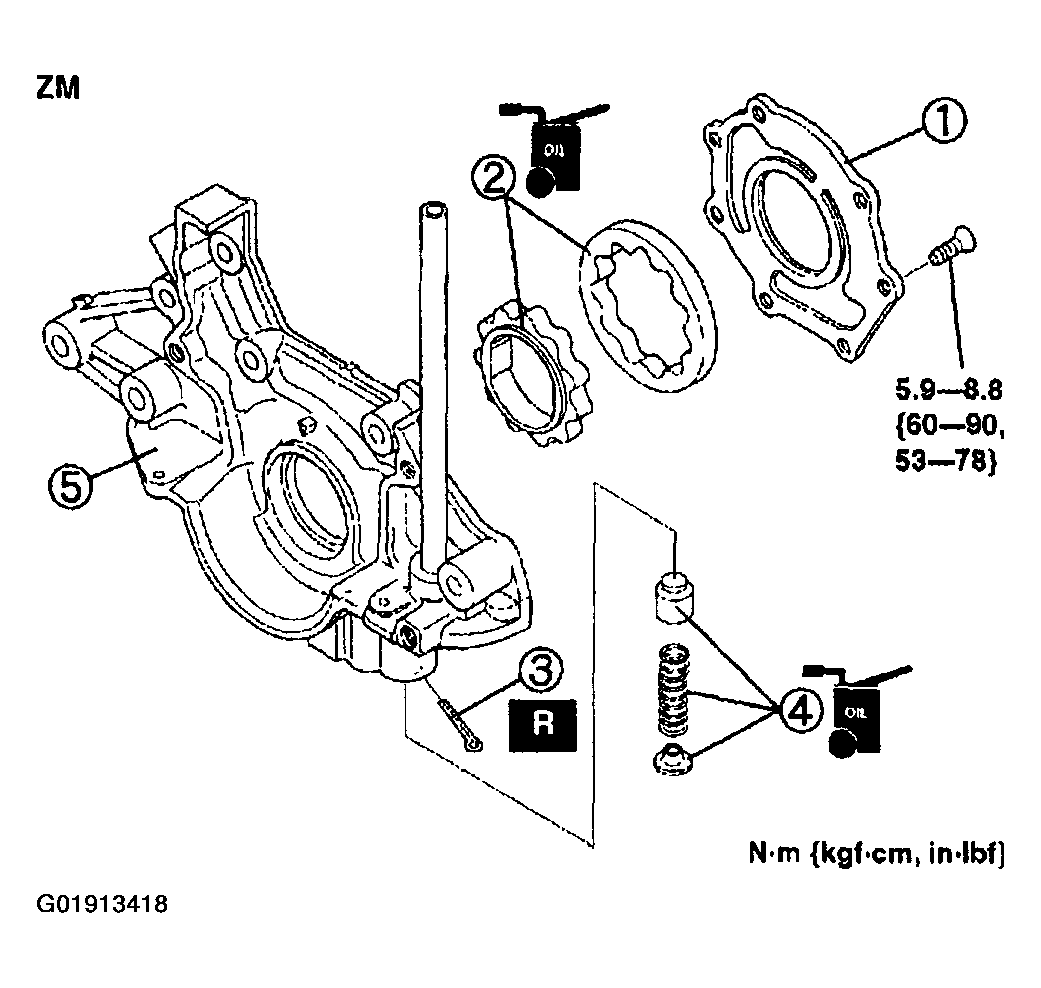

Fig 1: Identifying Components Of Oil Pump - ZM (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Components Of Oil Pump - ZM (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

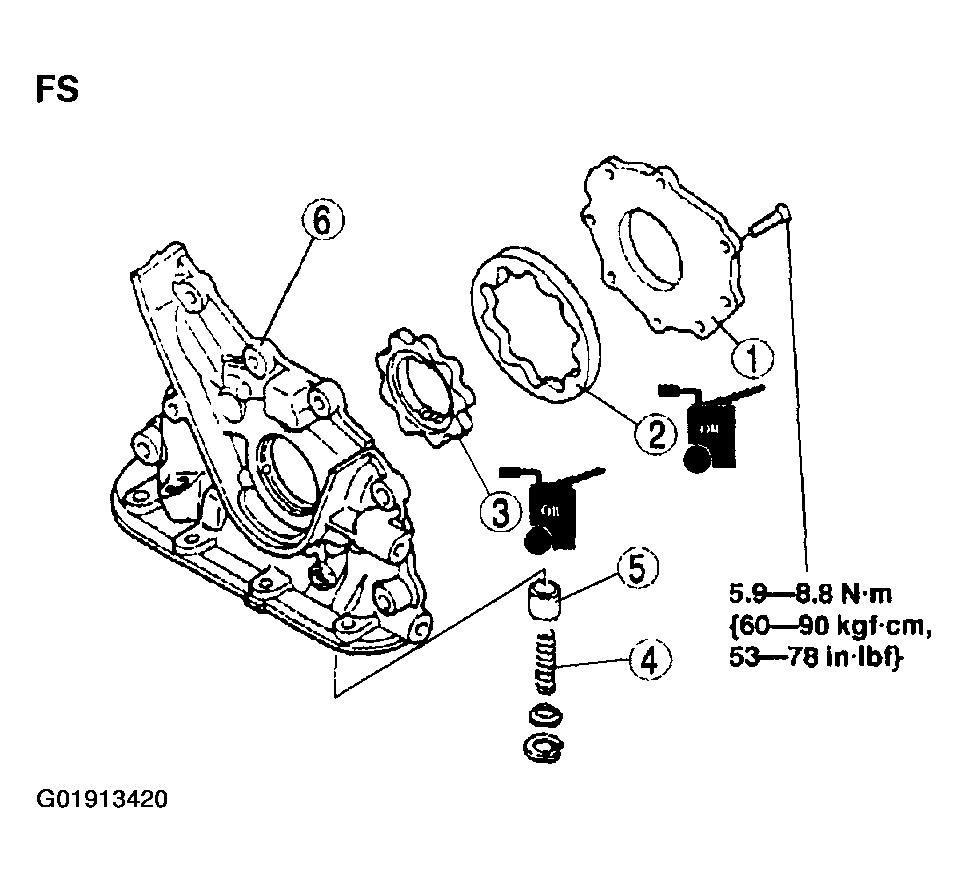

Fig 3: Identifying Components Of Oil Pump - FS (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 4: Identifying Components Of Oil Pump - FS (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
