Brake Switch Inspection

  1. Disconnect the brake switch connector.
  2. Inspect for continuity between the terminals of the brake switch connector using the ohmmeter.
    • If not as specified, replace the brake switch.

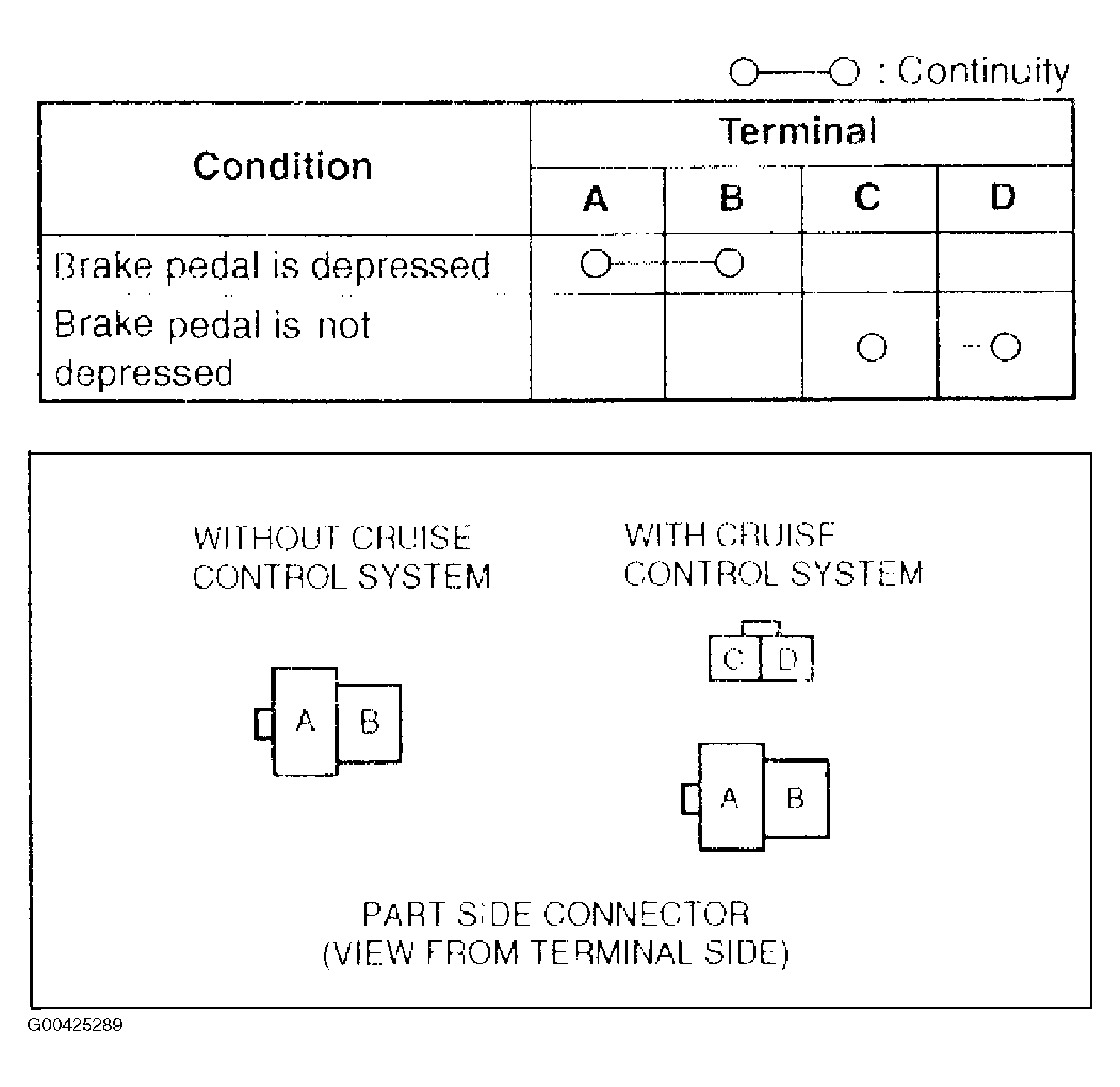

    Fig 1: Brake Switch Continuity Inspection
    G00425289Courtesy of MAZDA MOTORS CORP.
