Cruise Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the passenger-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure(s).

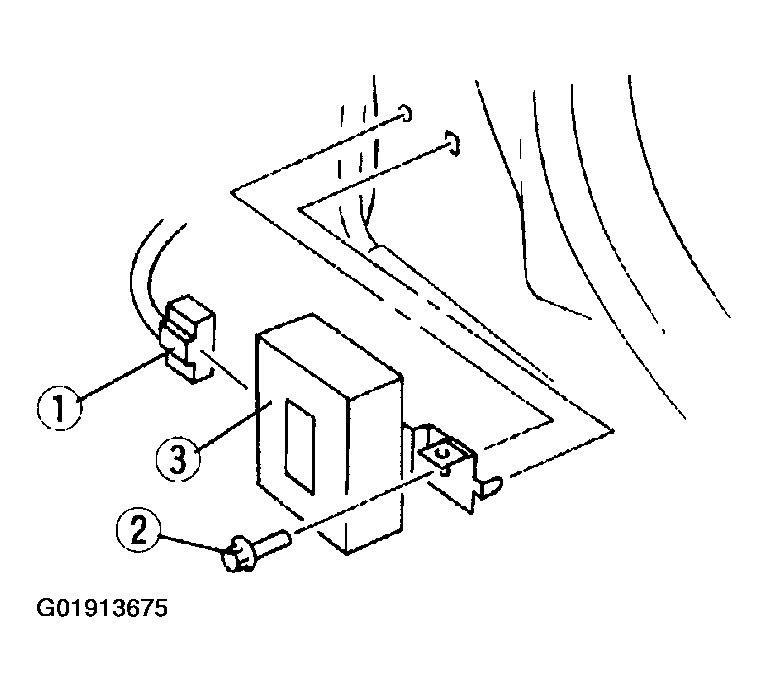

    Fig 1: Removing Cruise Control Module
    G01913675Courtesy of MAZDA MOTORS CORP.

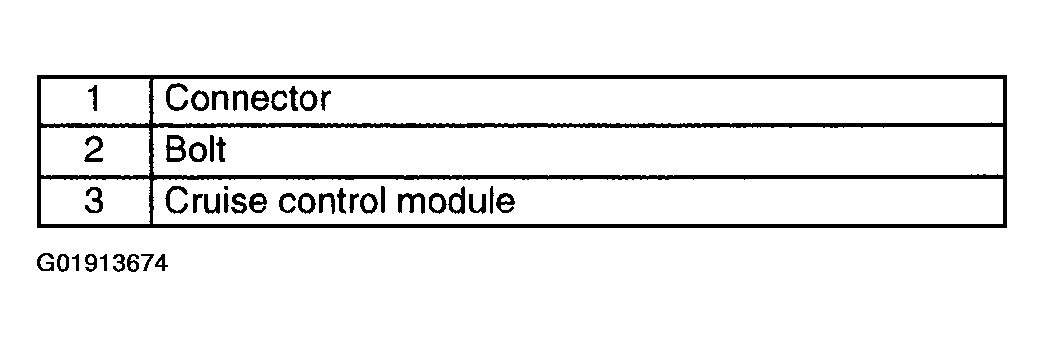

    Fig 2: Cruise Control Module Removal Sequence
    G01913674Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
