Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

Removal and Installation

1. Remove the catalytic converter. Refer to CATALYTIC CONVERTER.

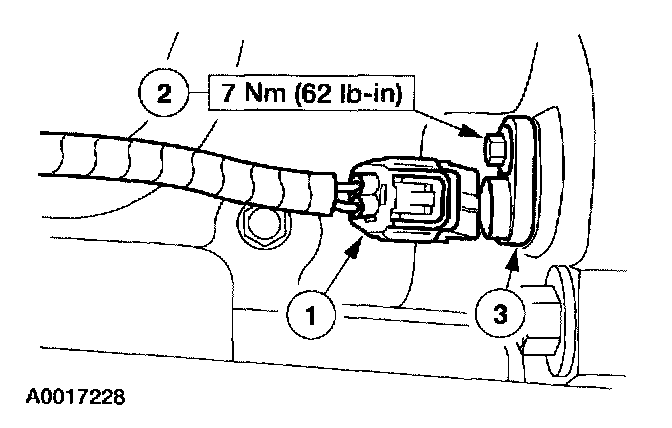

2. Remove the crankshaft position (CKP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

3. To install, reverse the removal procedure.
