Heated Seat Module, Driver Side Front Connector End View (C359)

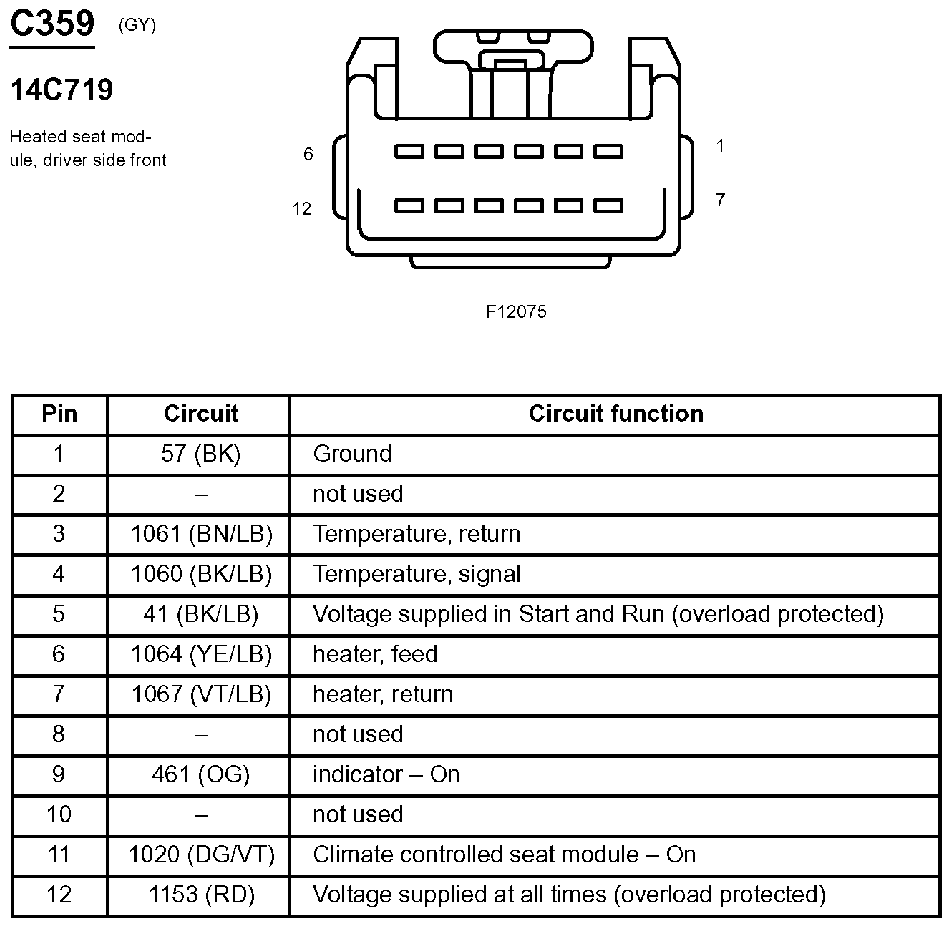

Fig 1: Heated Seat Module, Driver Side Front Connector End View (C359)
G07831512Courtesy of FORD MOTOR CO.
