Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

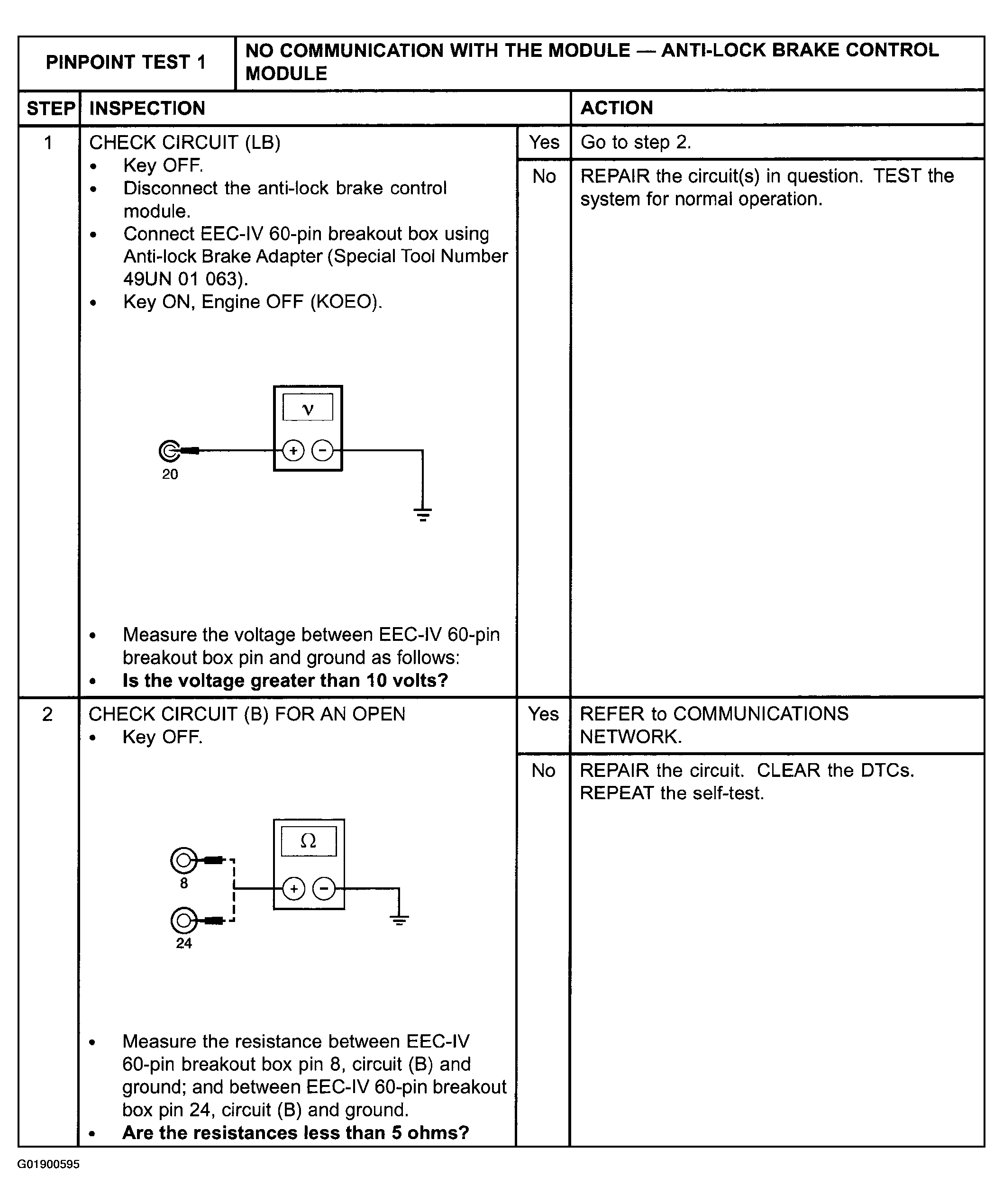

Fig 1: Pinpoint Test 1: No Communication With Module - Anti-Lock Brake Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Pinpoint Test 1: No Communication With Module - Anti-Lock Brake Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
