Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum

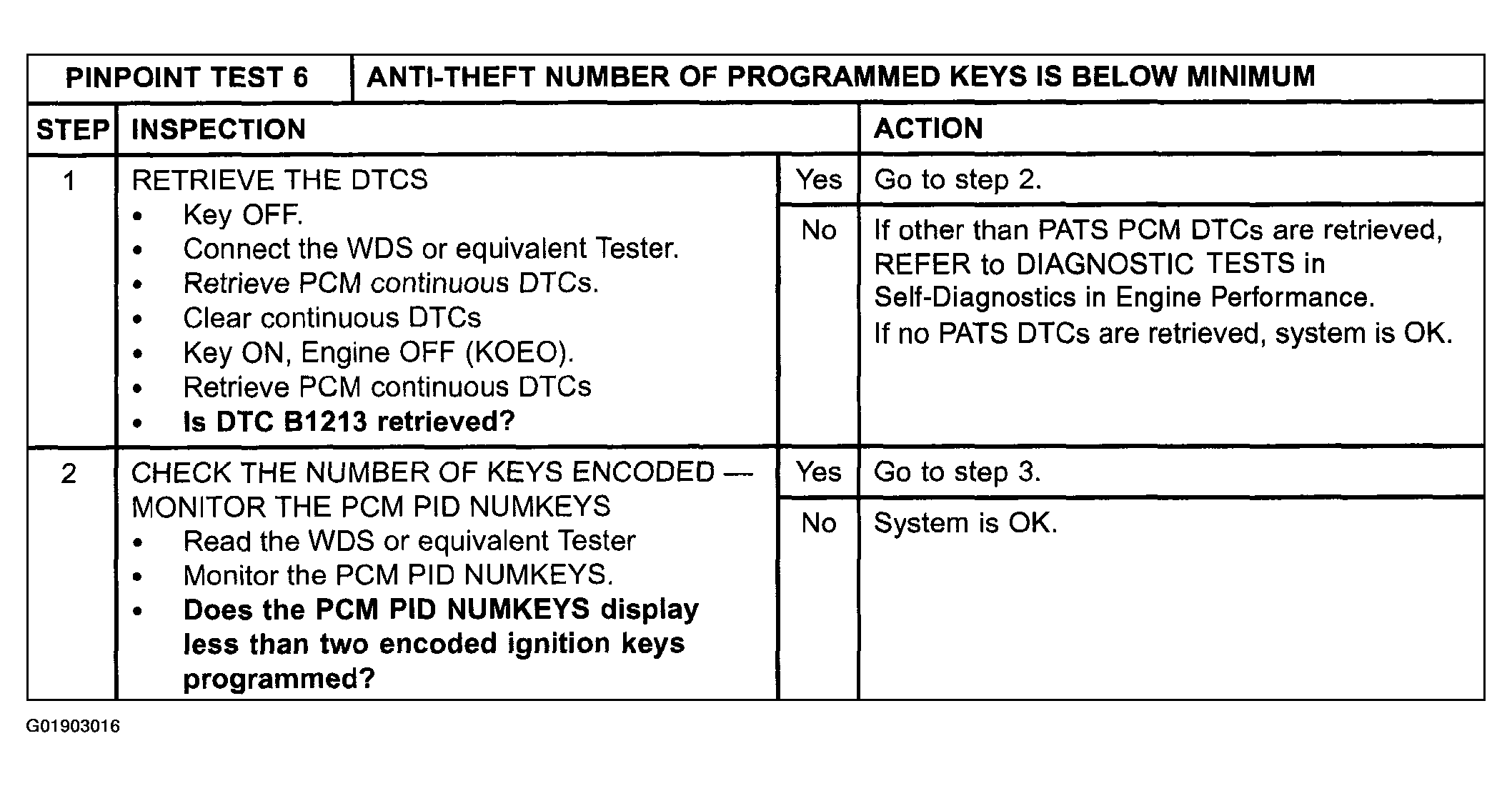

Fig 1: Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

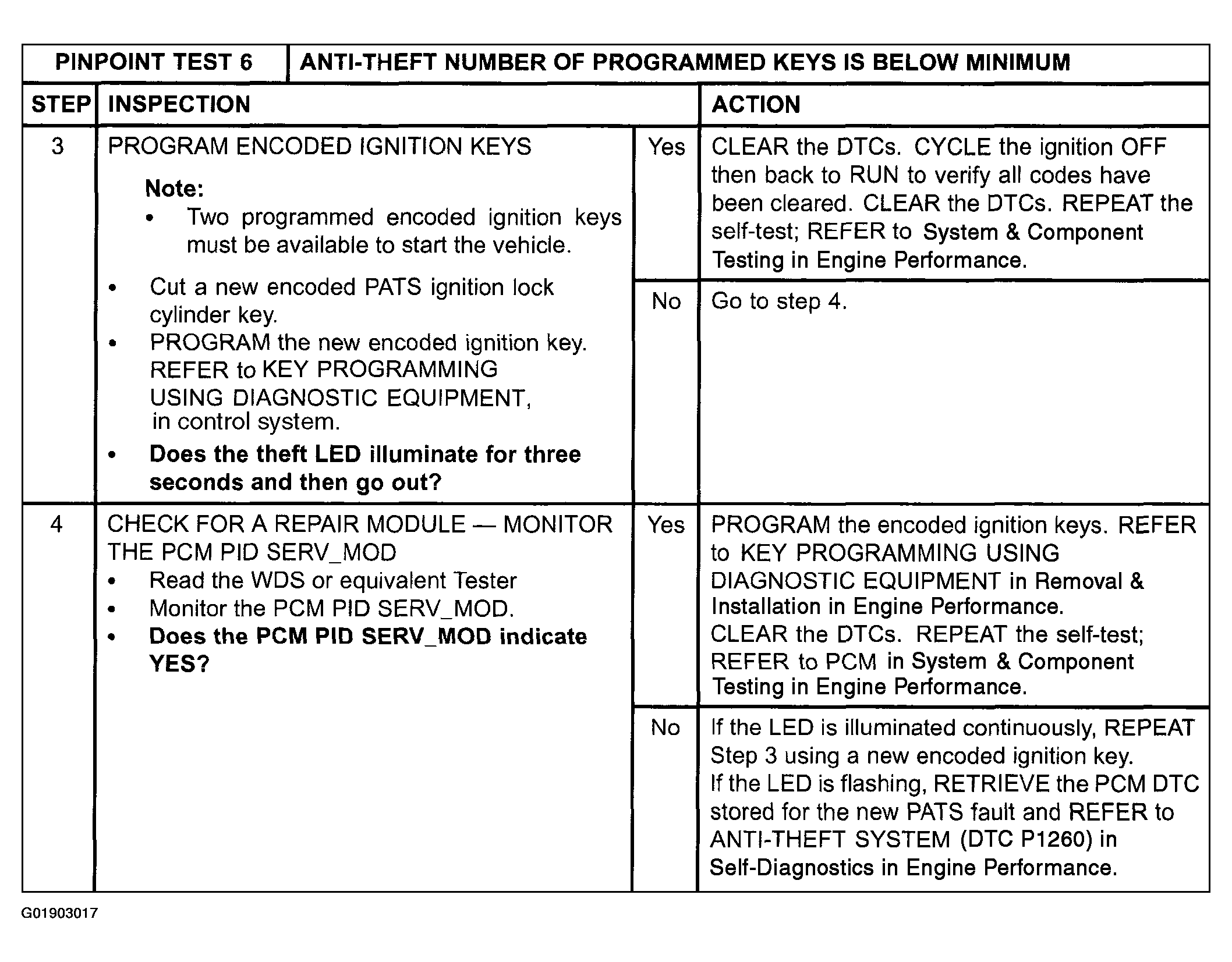

Fig 2: Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.
