Symptom Troubleshooting Chart - Engine Cooling System: Notes

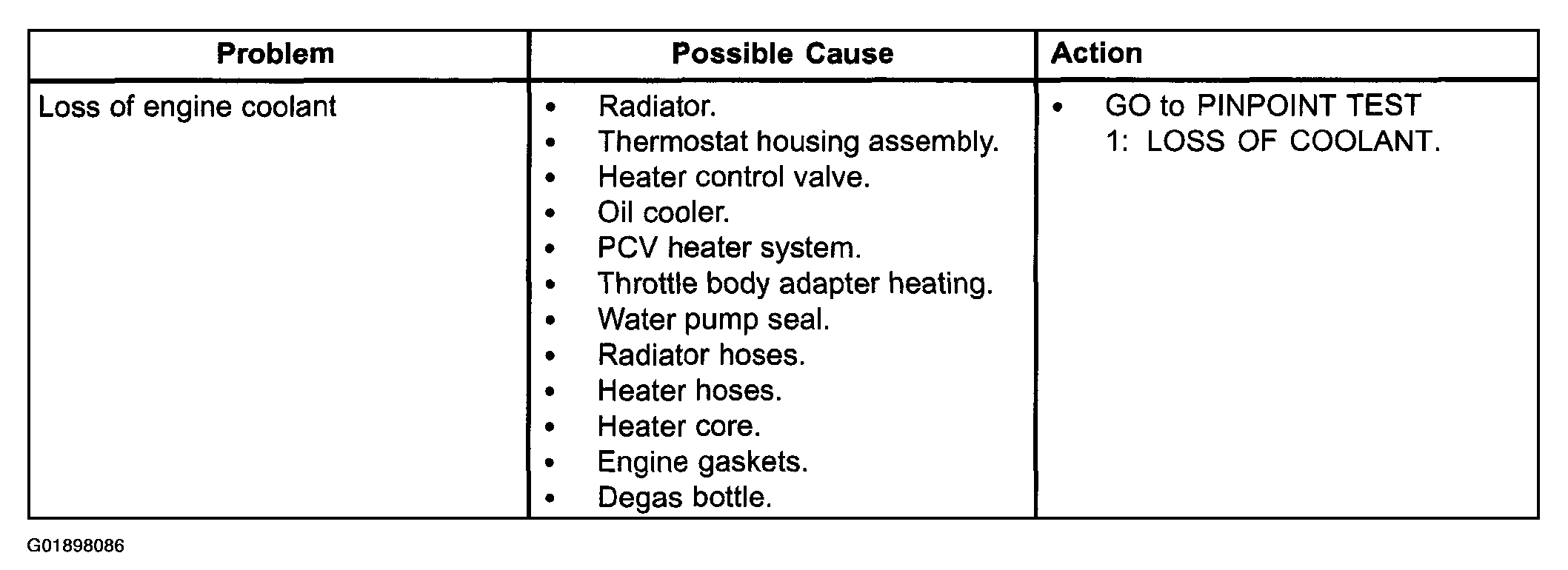

Fig 1: Symptom Troubleshooting Procedure - Engine Cooling System (1 Of 2)

Courtesy of FORD MOTOR CO.

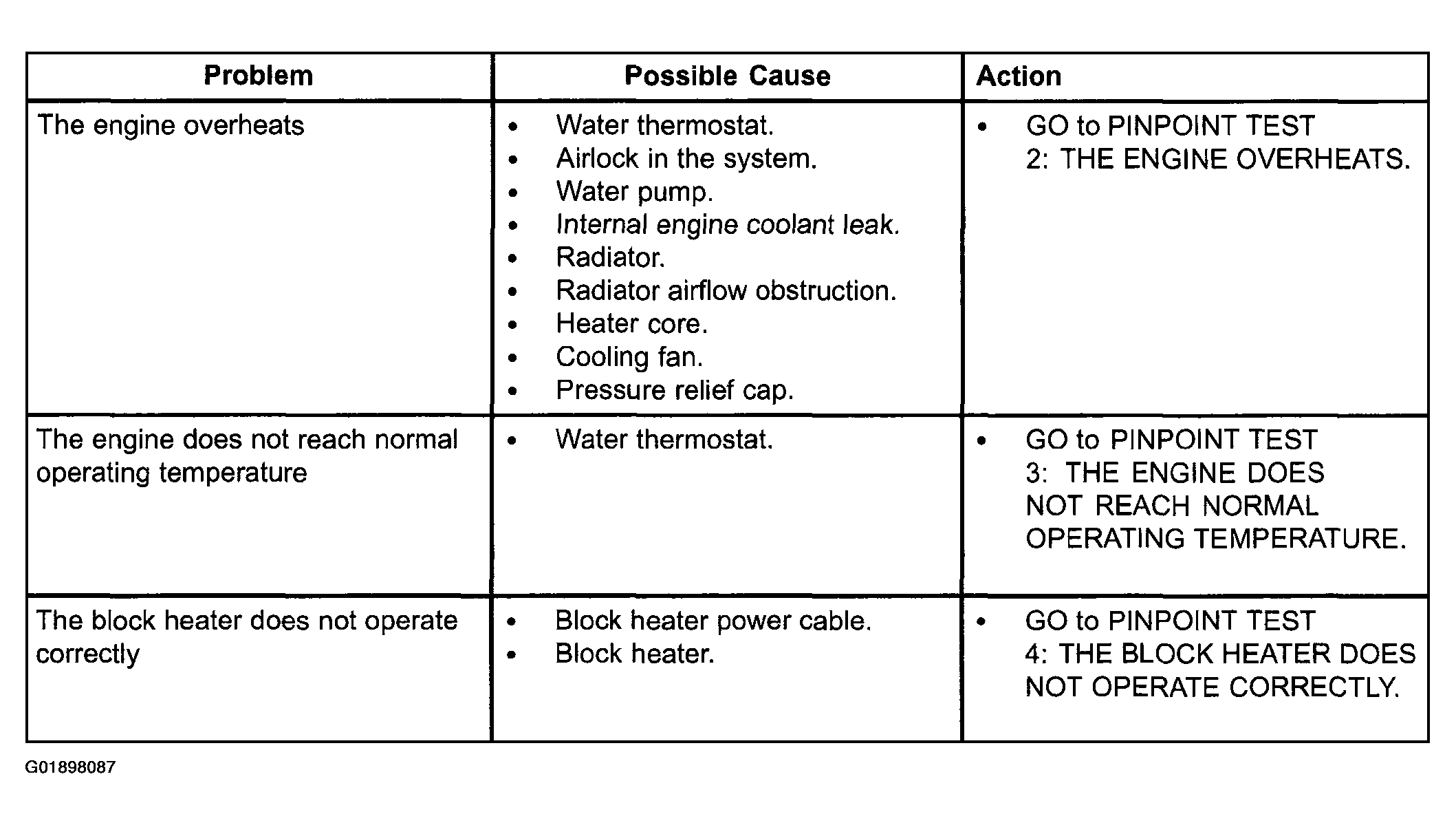

Fig 2: Symptom Troubleshooting Procedure - Engine Cooling System (2 Of 2)

Courtesy of FORD MOTOR CO.
