Liftgate Disassembly/Assembly
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the liftgate trim.

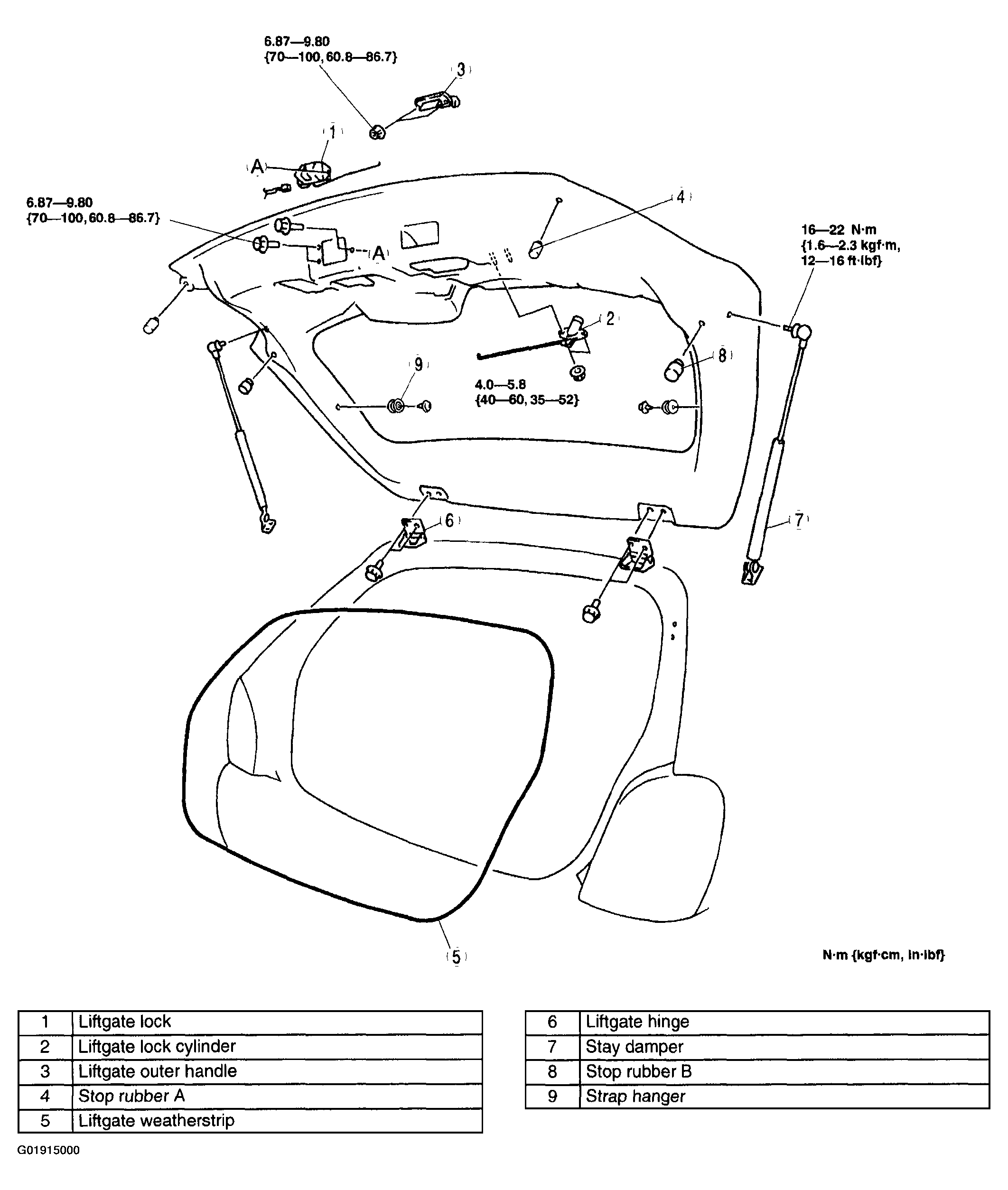

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP.
