DTC B1798: Position Light Switch (TNS) Input Circuit Short To Ground: Notes

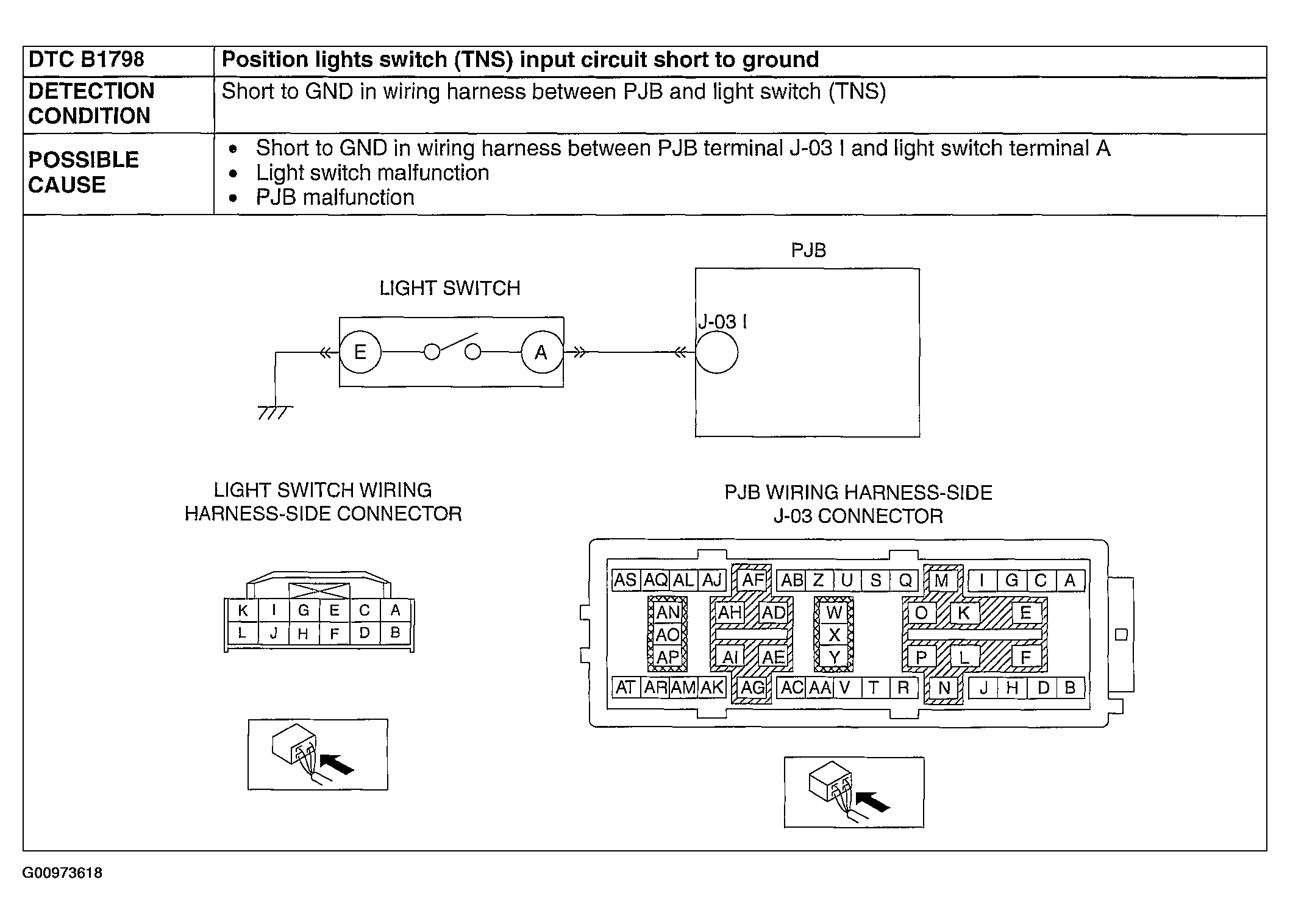

Fig 1: Detection Condition, Possible Causes, Circuit Identification & Connector Views - DTC B1798
G00973618Courtesy of MAZDA MOTORS CORP.
