Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0133: Front Ho2S Circuit Problem >> Except for California Emission Regulation Applicable Model
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Except for California Emission Regulation Applicable Model

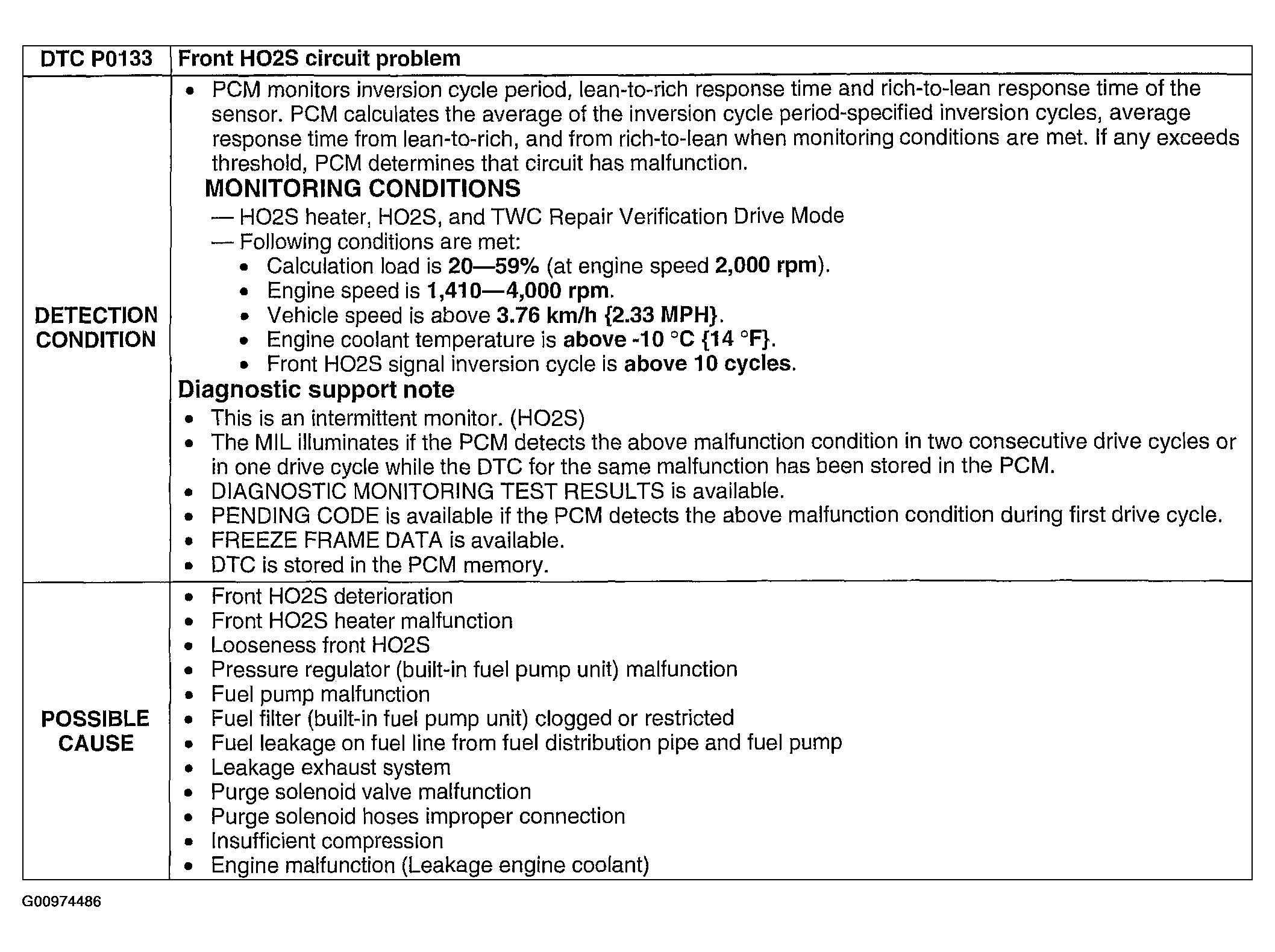

Fig 1: DTC P0133: Detection Condition & Possible Causes Chart
G00974486Courtesy of MAZDA MOTORS CORP.
