DTC P2405: EVAP System Leak Detection Pump Sense Circuit Low Input
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure

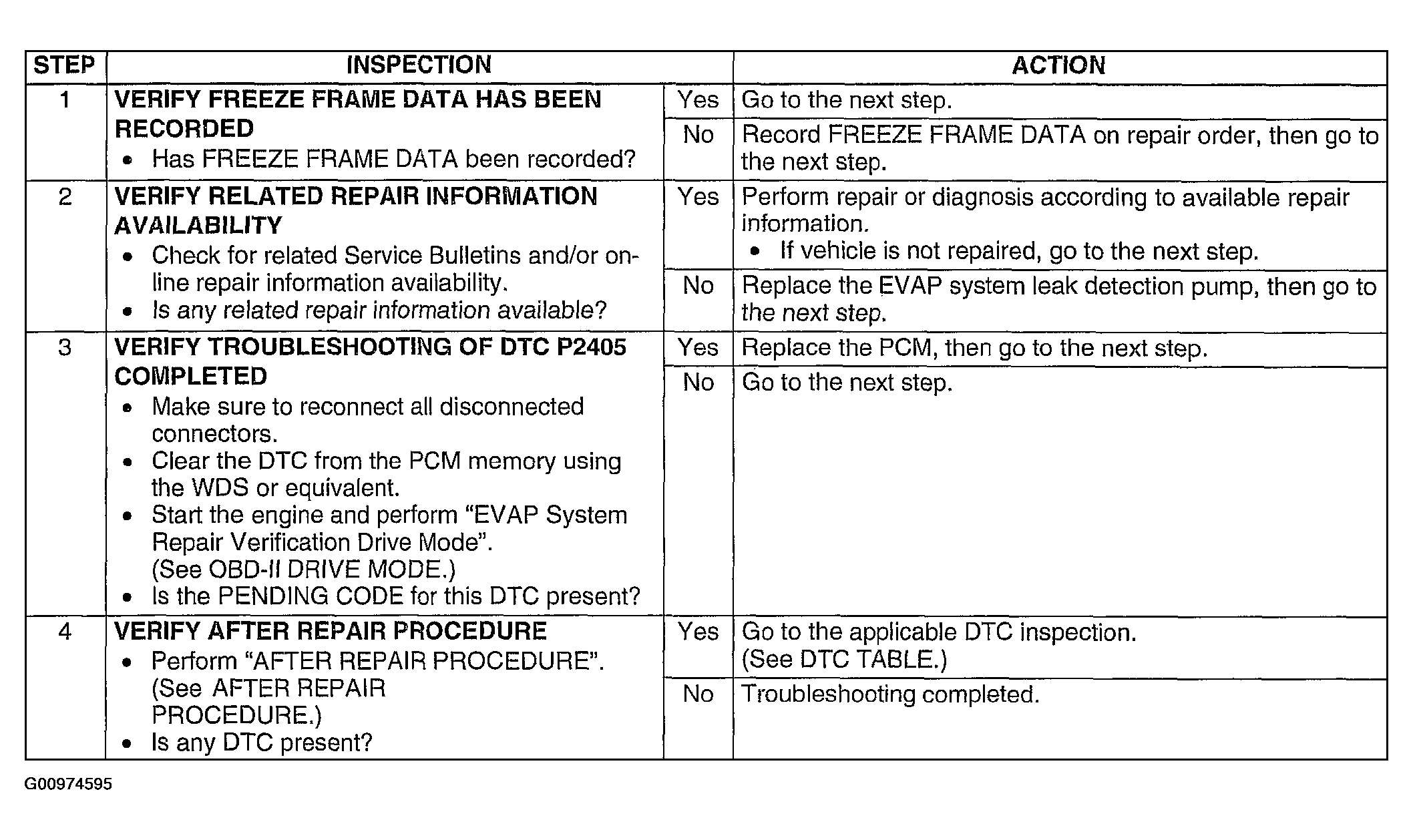

Fig 1: DTC P2405: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
