Control Units

CONTROL UNITS LOCATION

Component Location

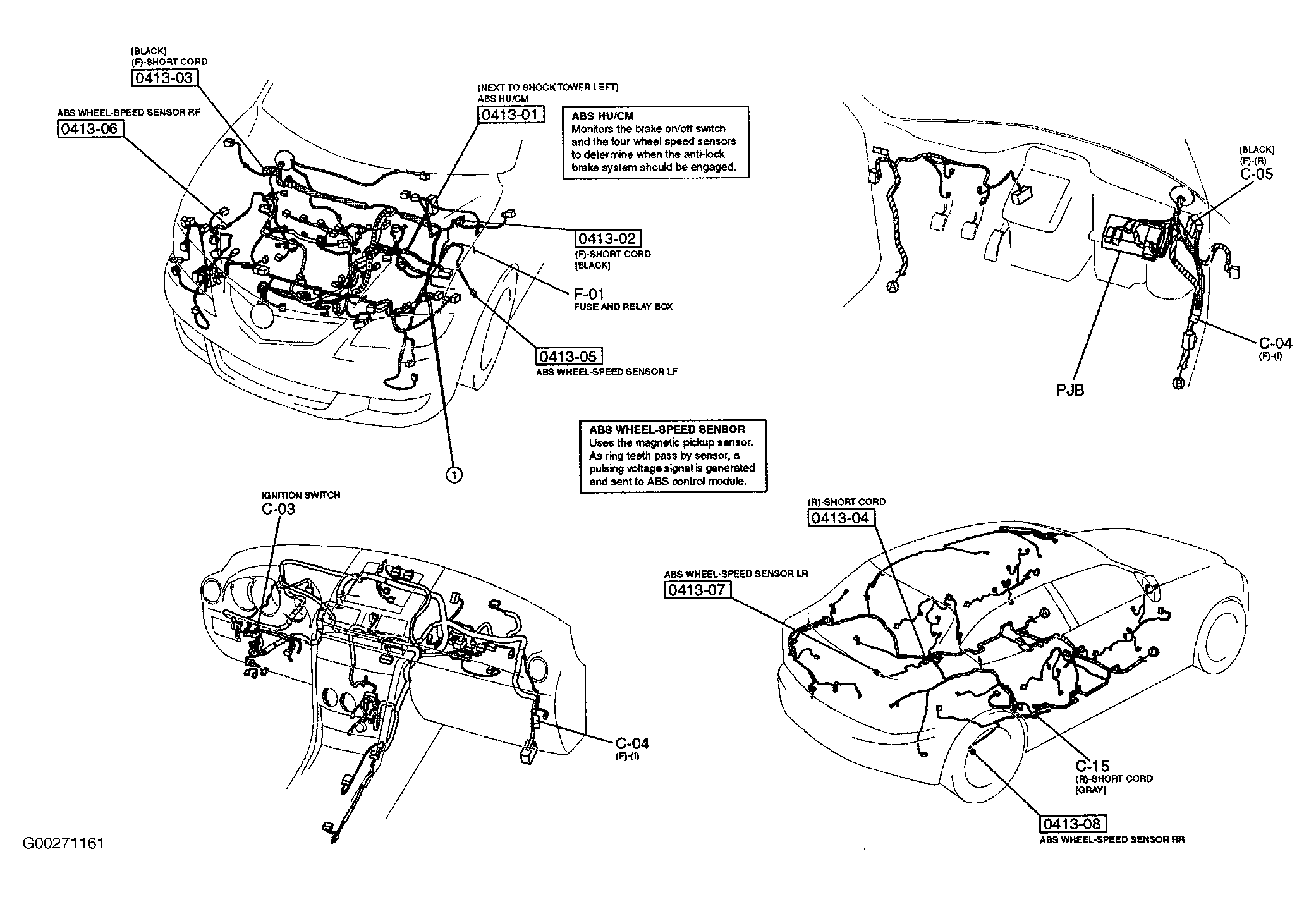

ABS Hydraulic Unit Control Module At left rear corner of engine compartment. See Figure .

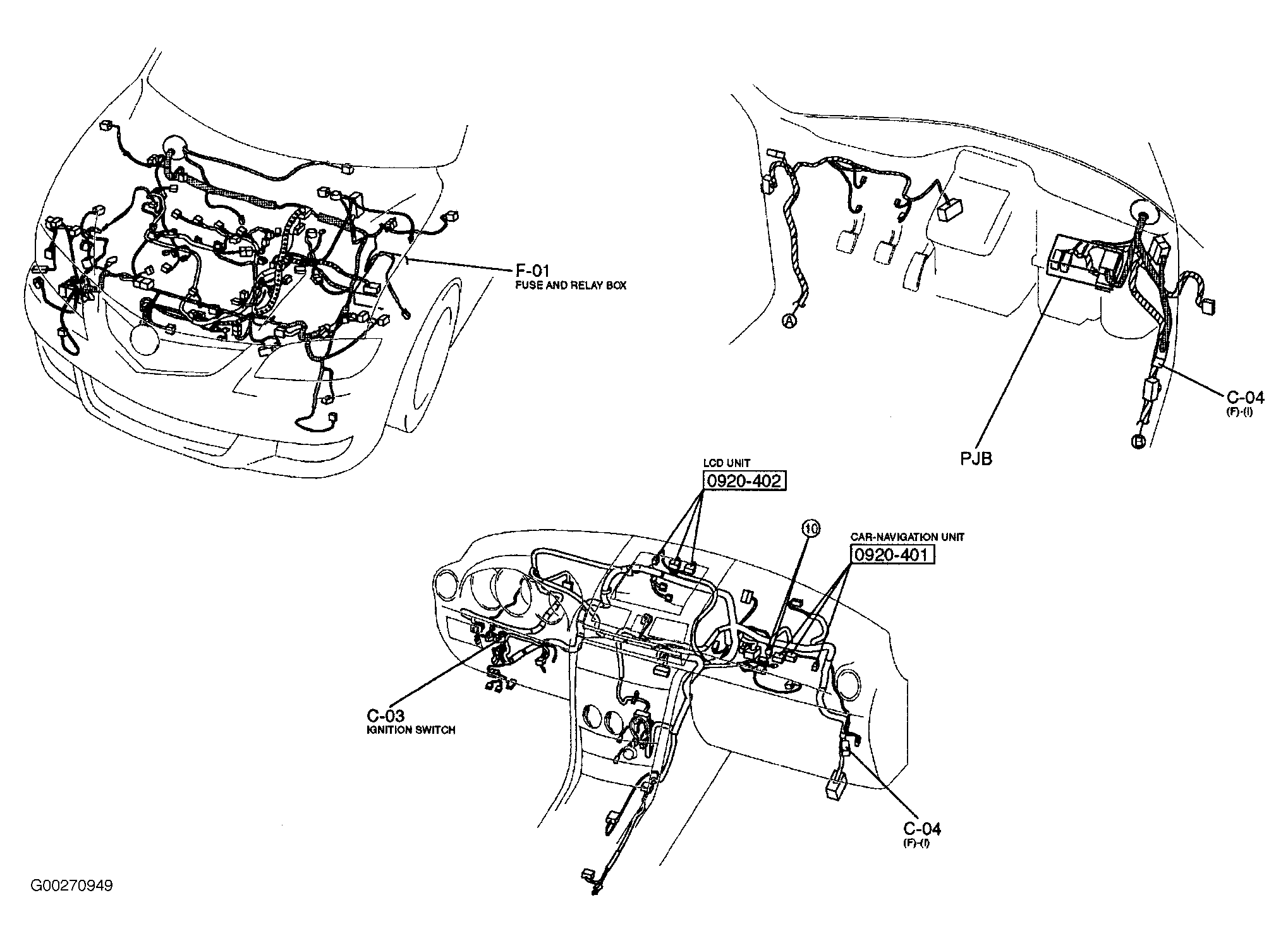

Car Navigation Unit Behind right side of dash. See Figure .

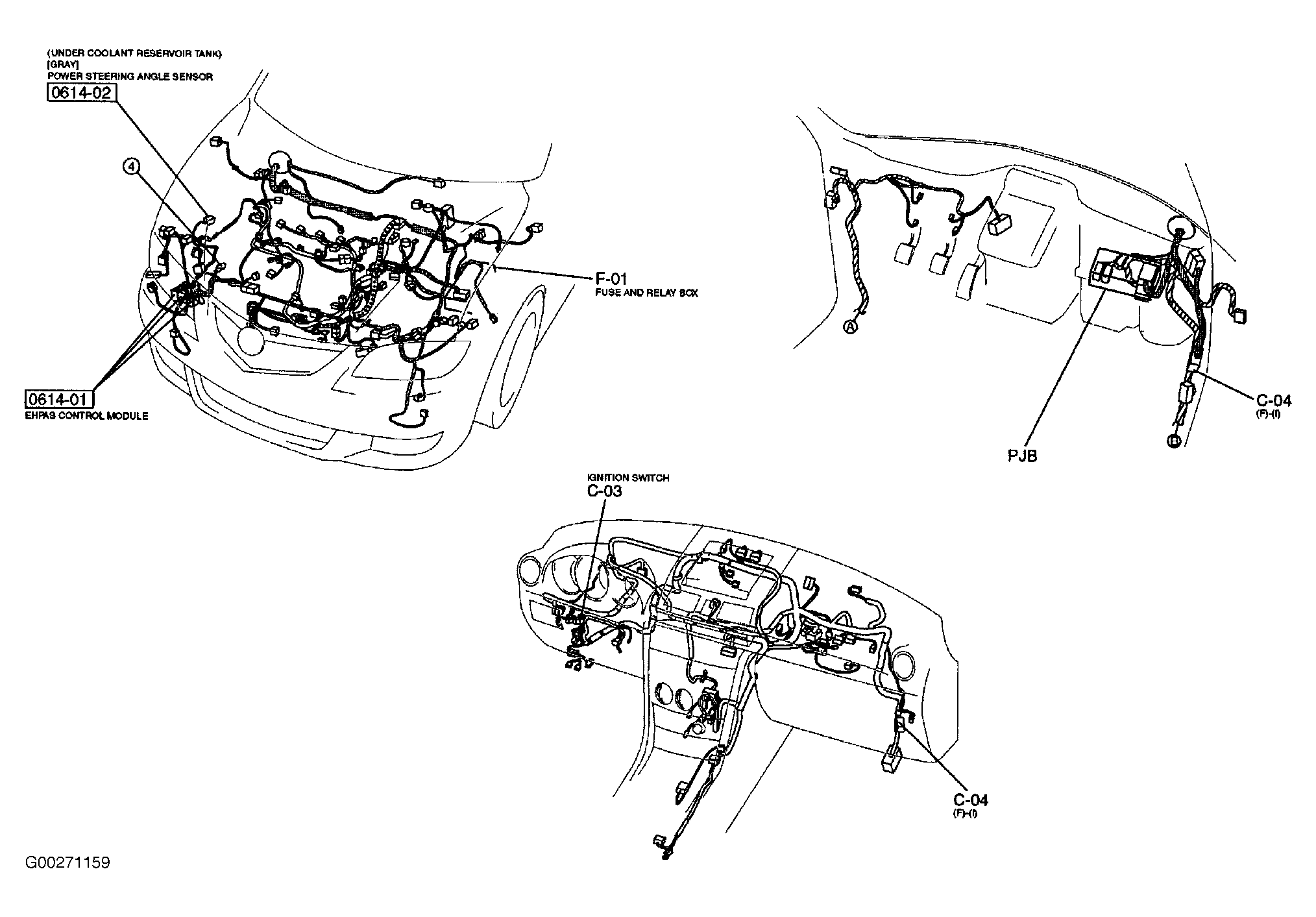

EHPAS Control Module Right front of engine compartment. See Figure .

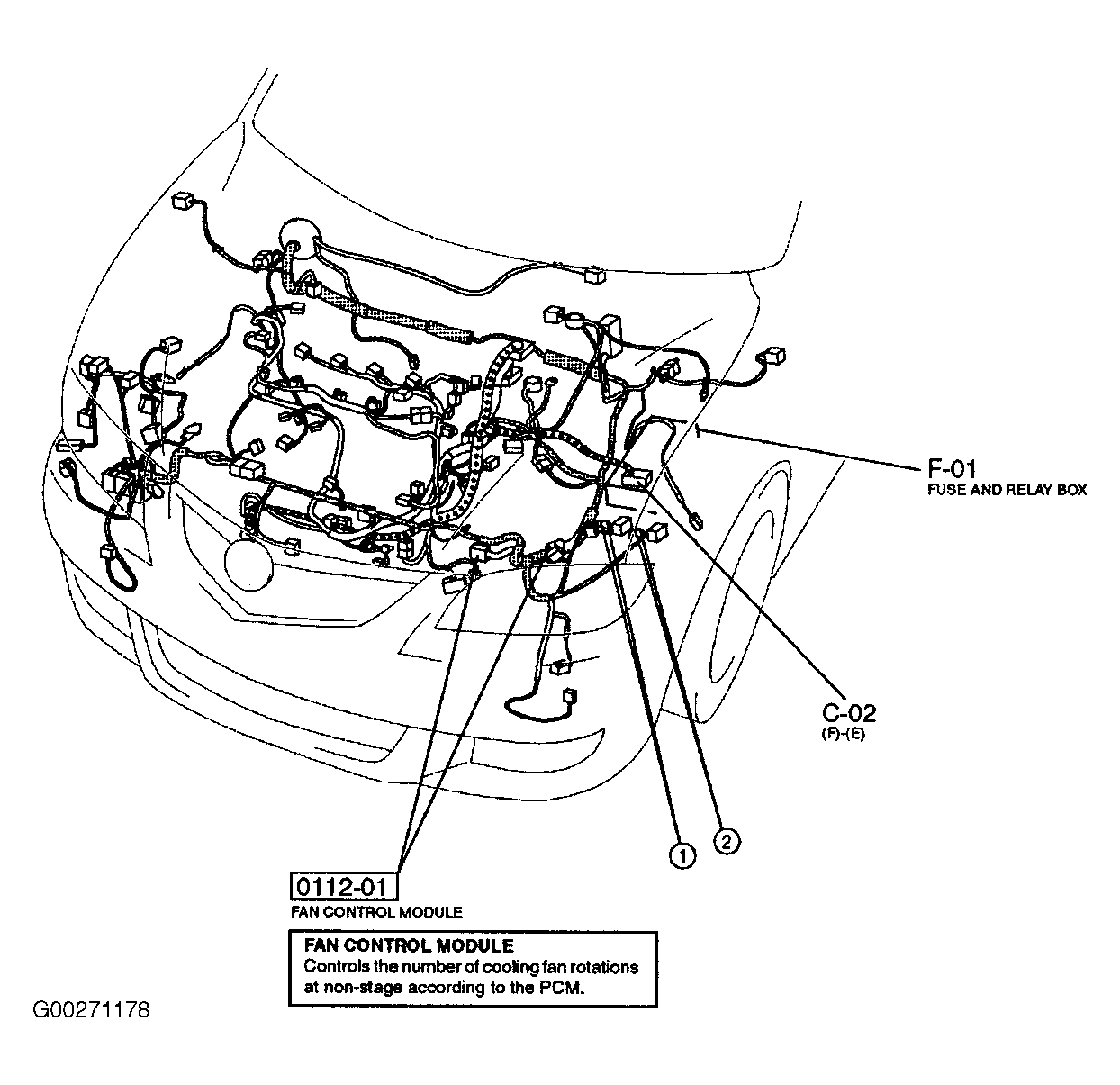

Fan Control Module Left front of engine compartment. See Figure .

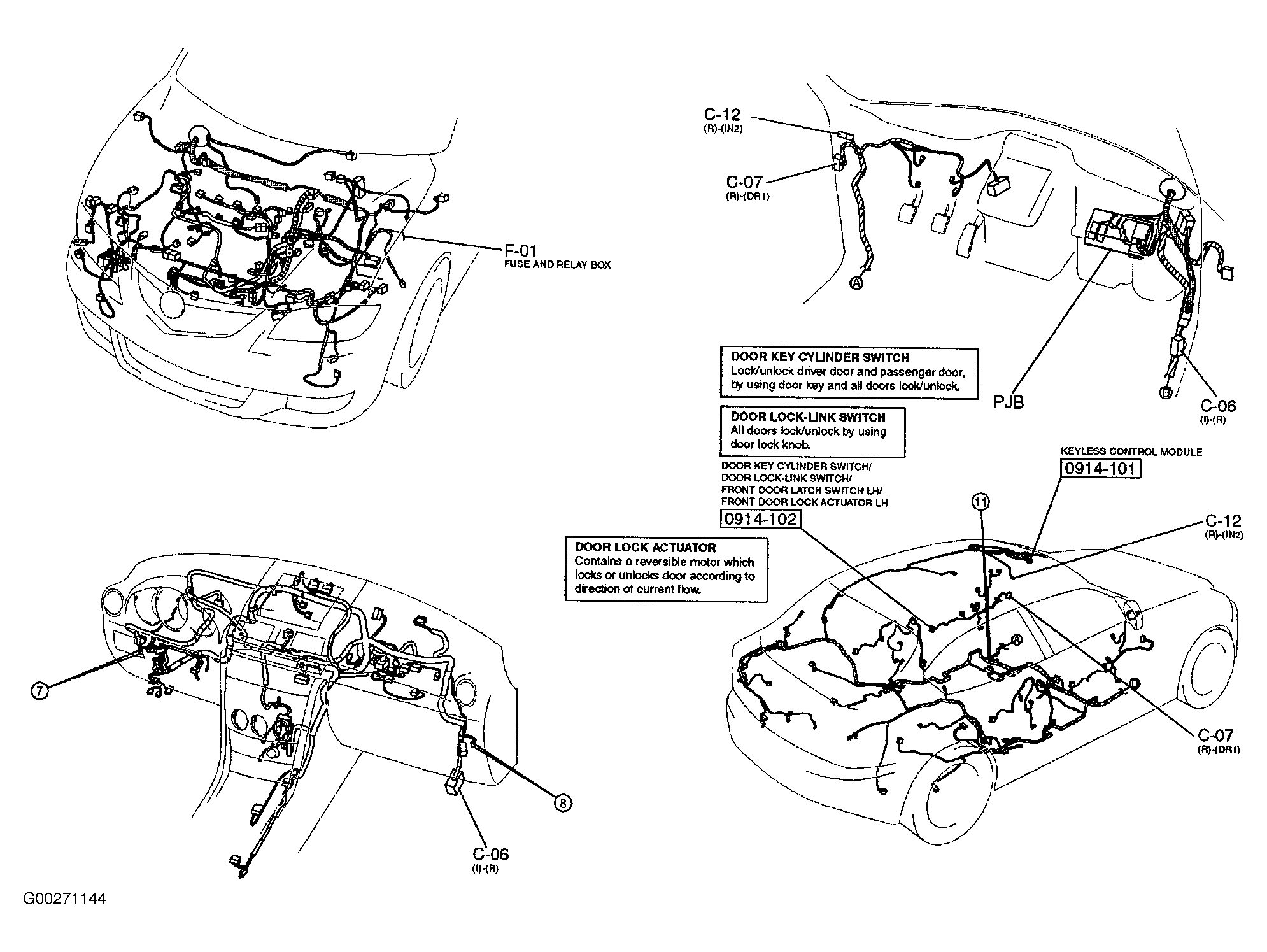

Keyless Control Module Behind left side of dash. See Figure .

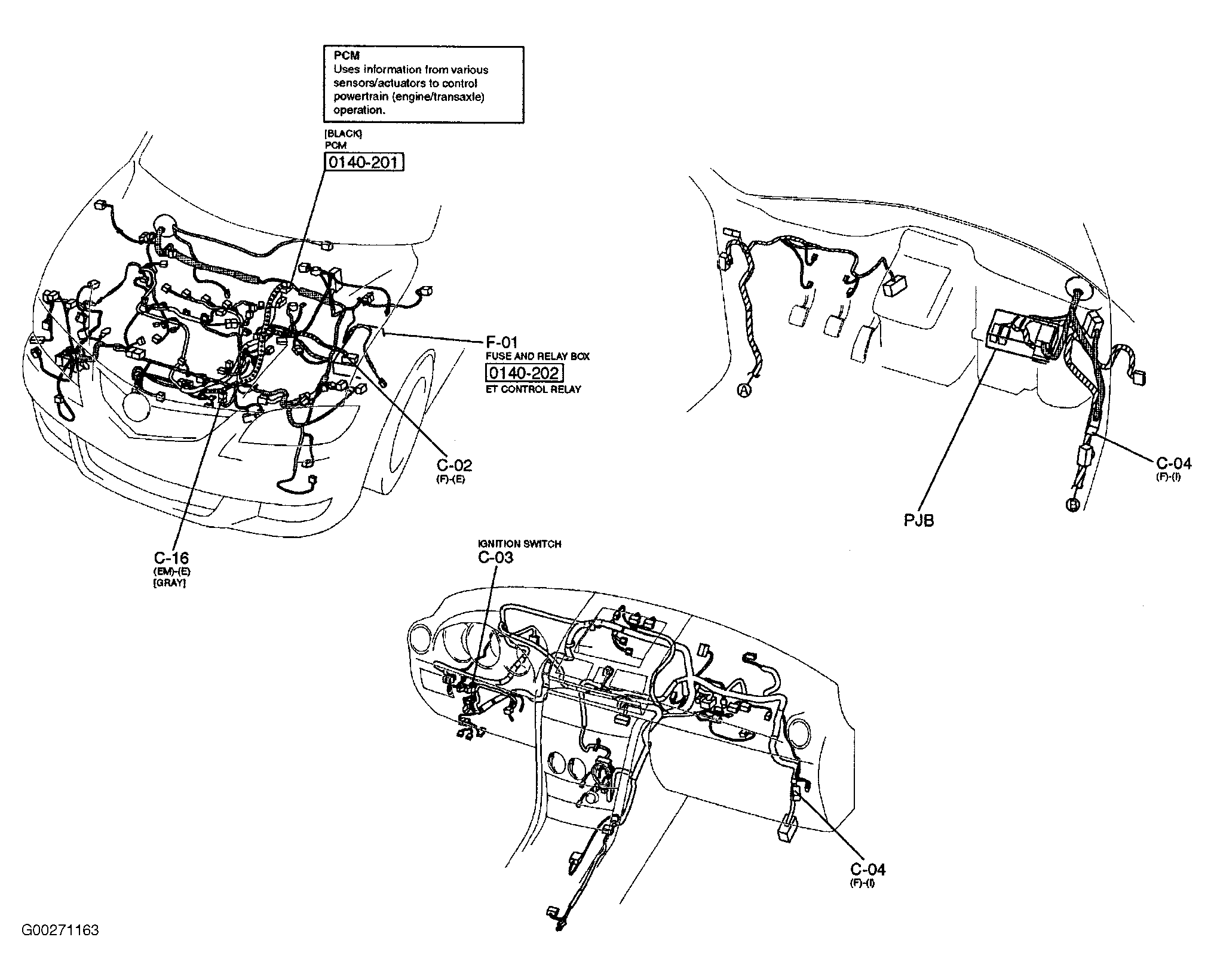

PCM Rear of engine compartment. See Figure .

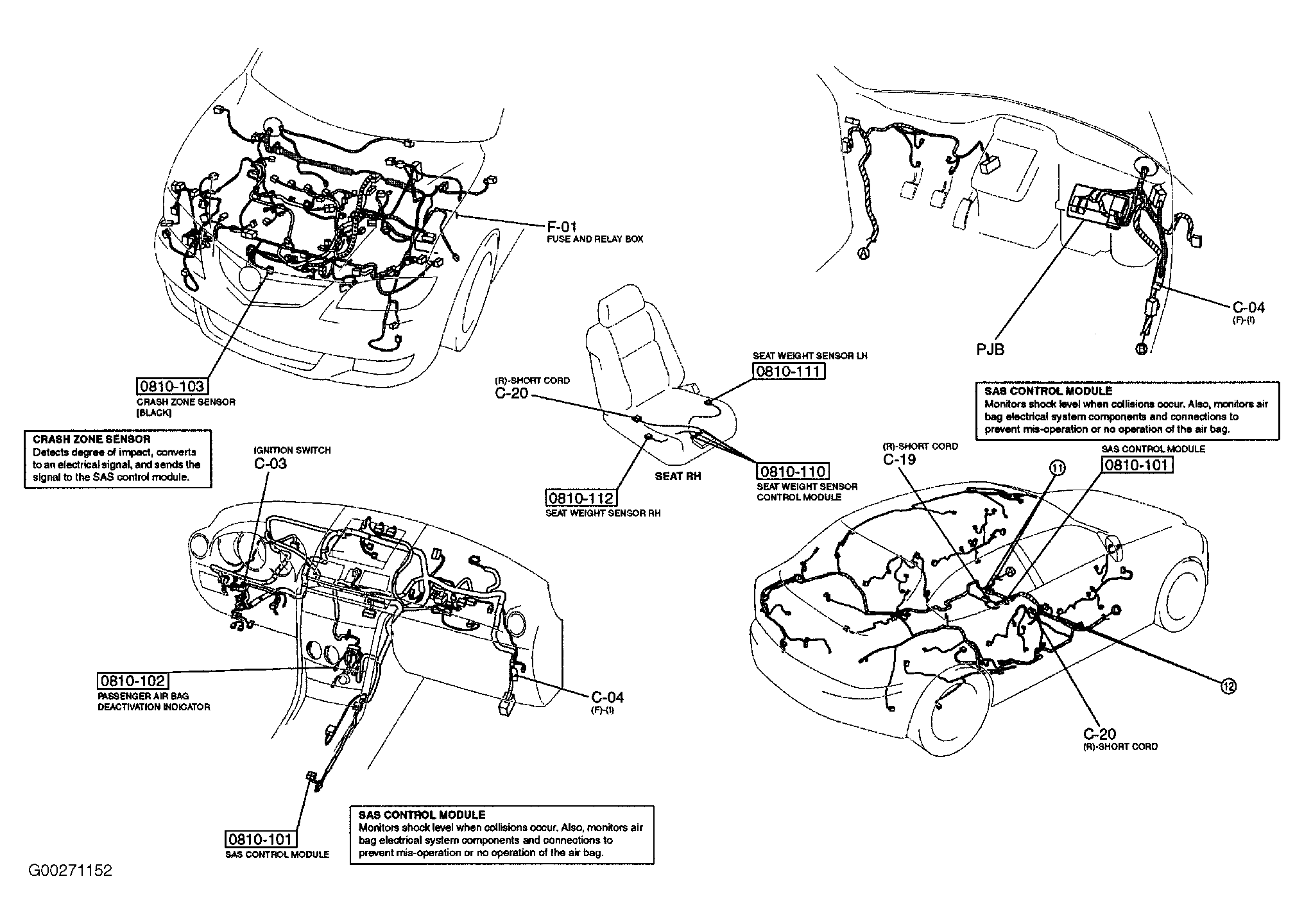

SAS Control Module Below center console. See Figure .
Seat Weight Sensor Control Module Below right front seat. See Figure .

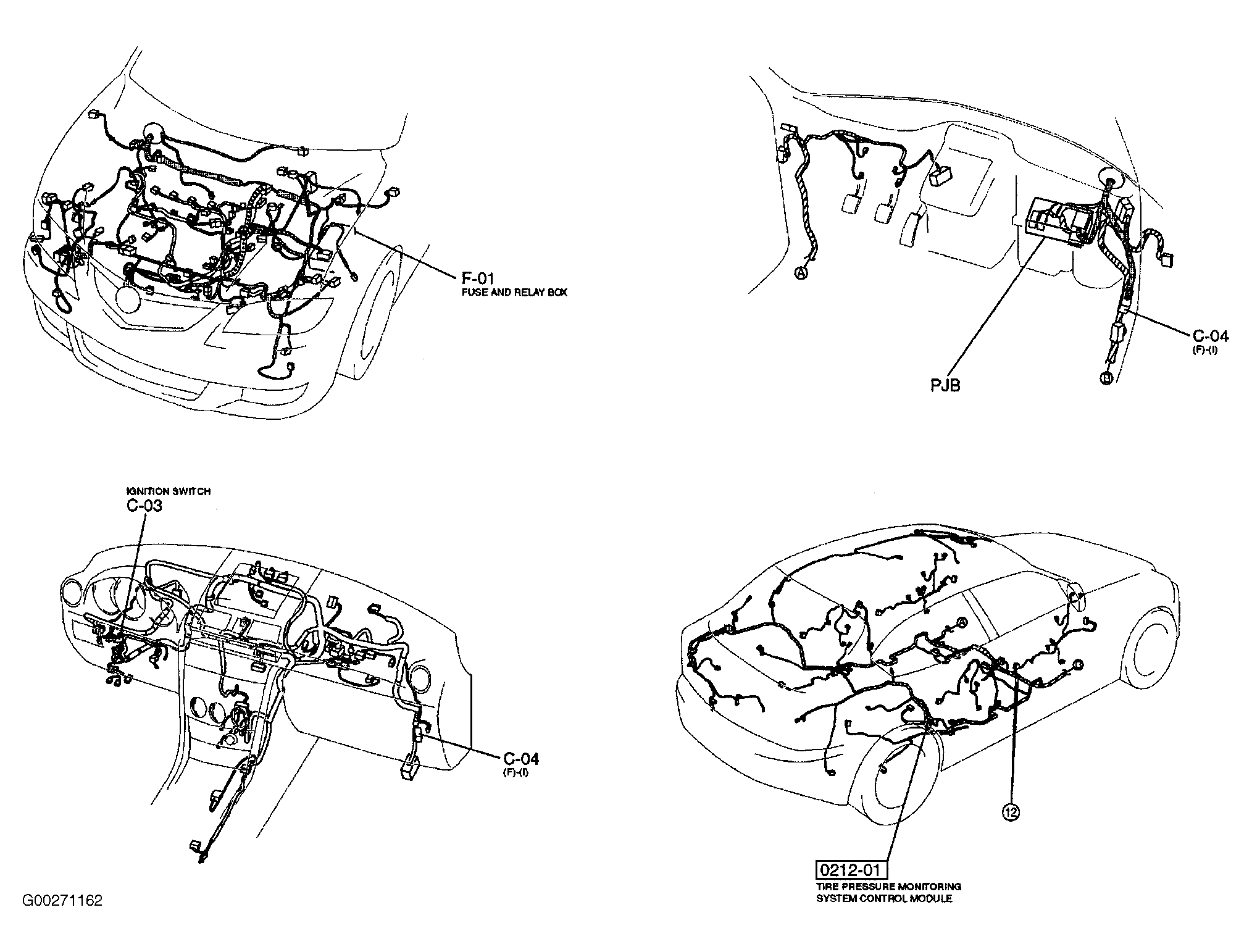

Tire Pressure Monitoring System Control Module Right rear of vehicle. See Figure .
