Freeze Frame PID Data Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Record the freeze frame PID data using the WDS or equivalent.

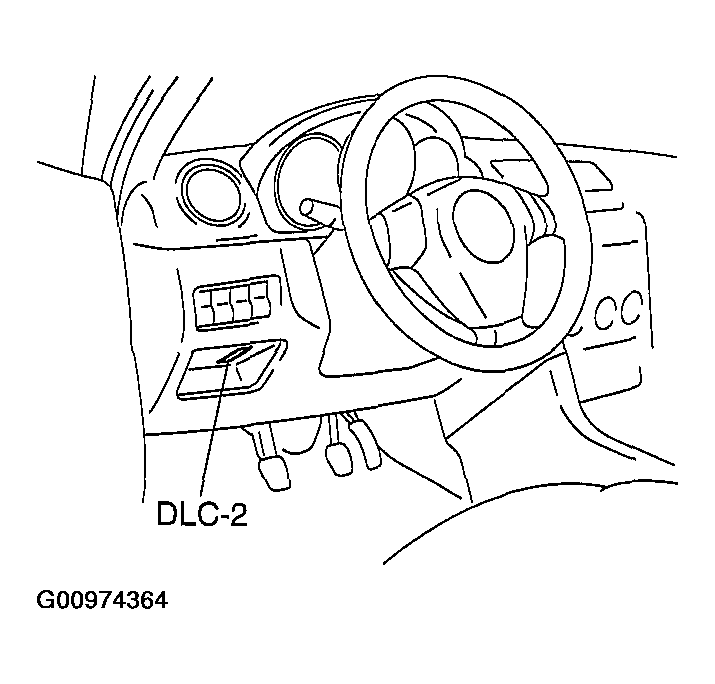

    Fig 1: Identifying DLC-2 Connector Location
    G00974364Courtesy of MAZDA MOTORS CORP.
