Rear Wiper And Washer Switch Connector End View

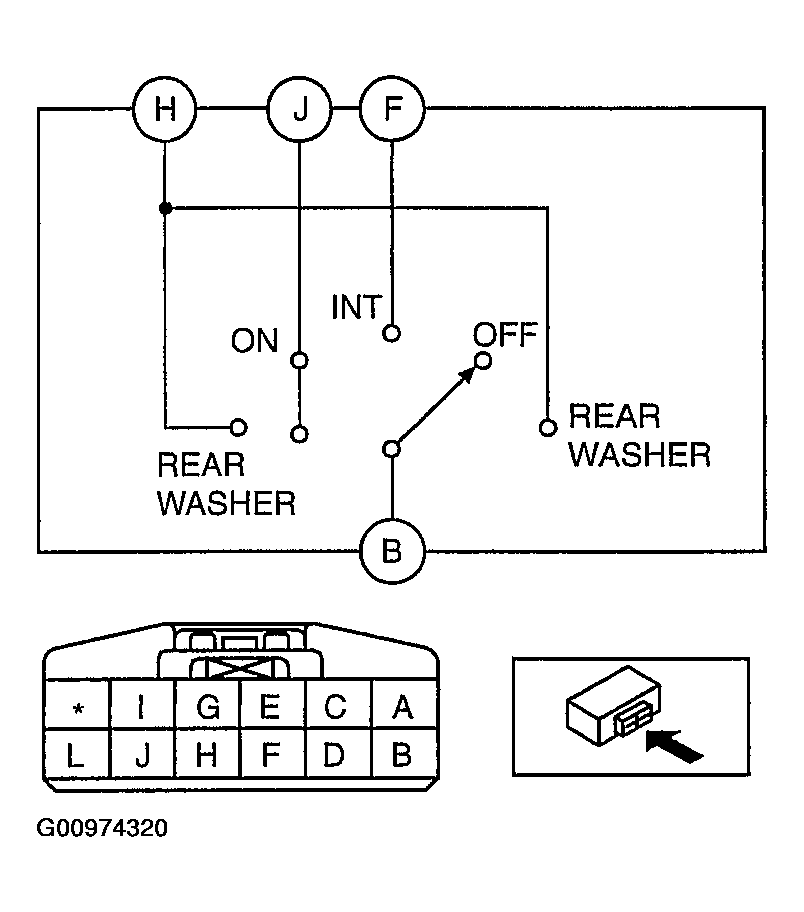

Fig 1: Rear Wiper And Washer Switch Connector End View
G00974320Courtesy of MAZDA MOTORS CORP.
