Connector Removal Note

  1. Rotate the lever in the direction of the arrow and remove the connector.

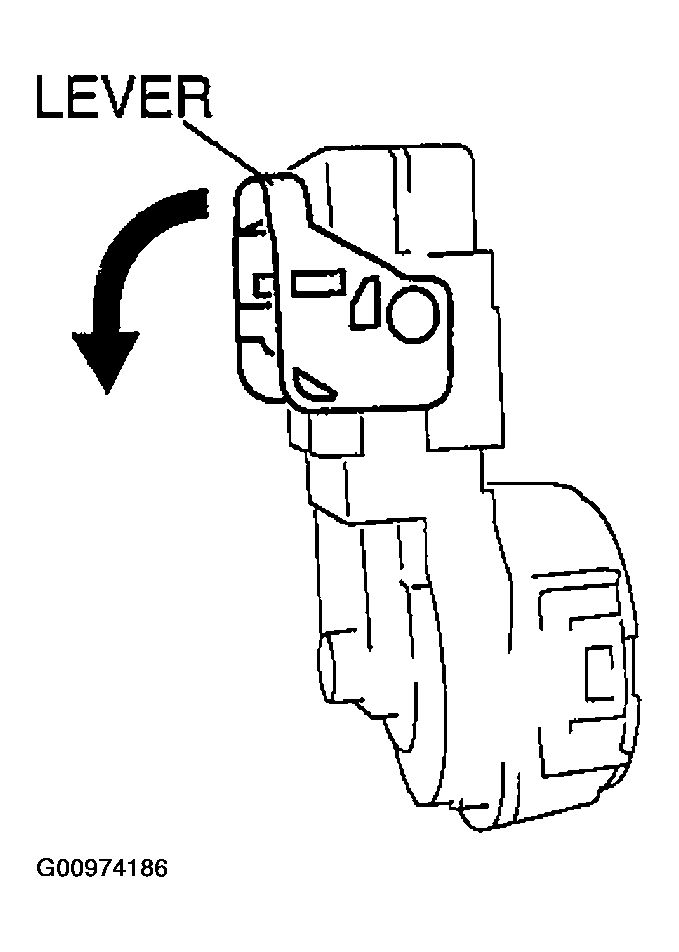

    Fig 1: Rotating Lever To Remove Connector
    G00974186Courtesy of MAZDA MOTORS CORP.
