Strap Installation Note

  1. Using the strap, secure the shroud panel and the air cleaner case as shown in the figure.

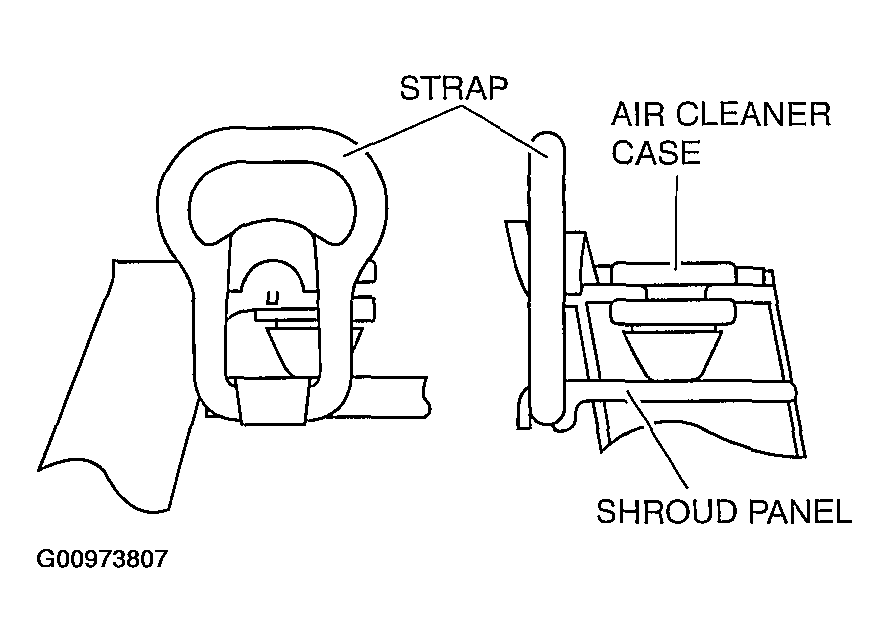

    Fig 1: Securing Shroud Panel And Air Cleaner Case Using Strap [LF]
    G00973807Courtesy of MAZDA MOTORS CORP.
