Power Window Switch: Service and Repair

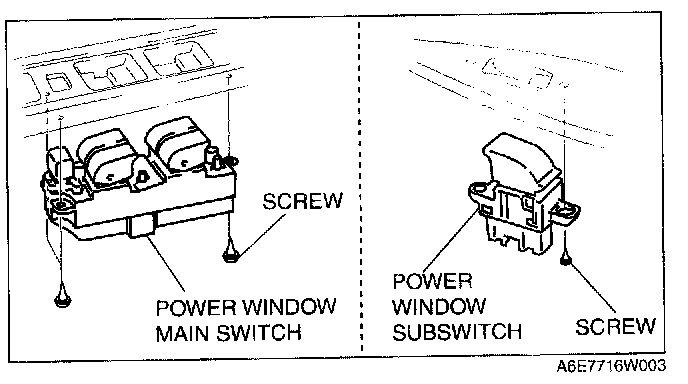

POWER WINDOW SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the front door trim or rear door trim.




3. Remove the screws, then the power window switch.
4. Install in the reverse order of removal.
