Control System Component Location Index

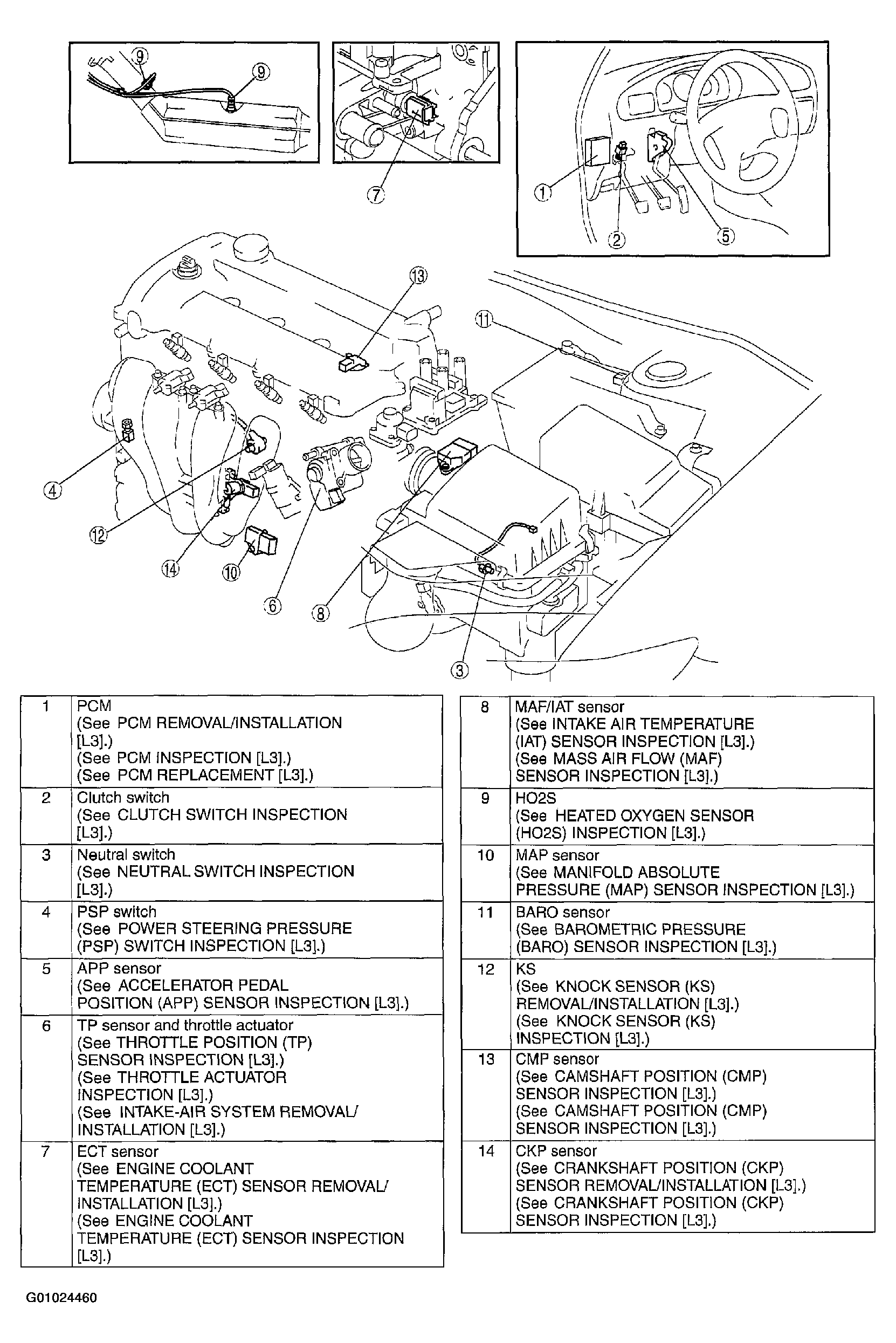

Fig 1: Locating Control System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
