Control System Diagram

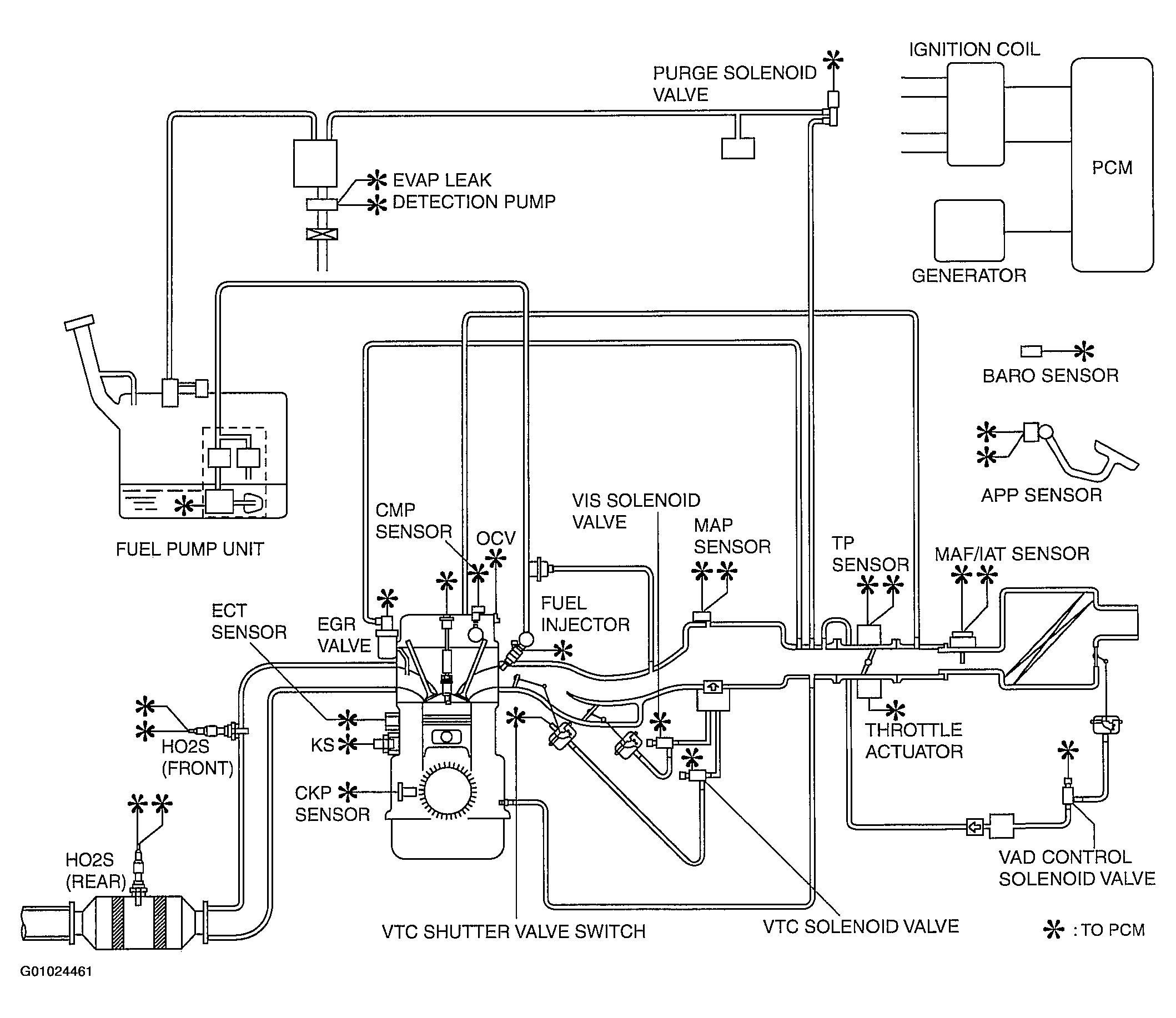

Fig 1: System Component Location & Vacuum Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
