Control System Wiring Diagram

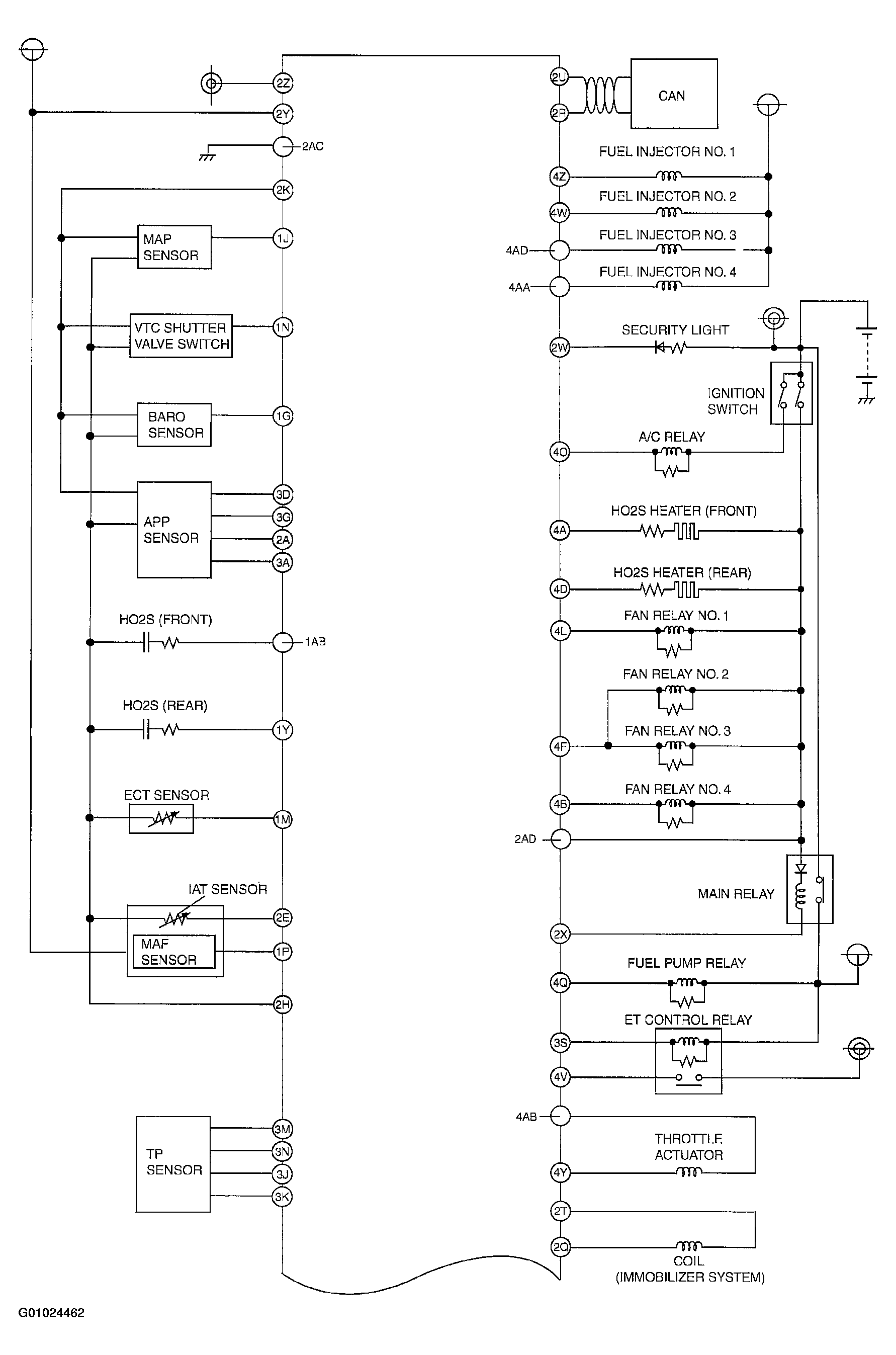

Fig 1: System Component Schematic (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

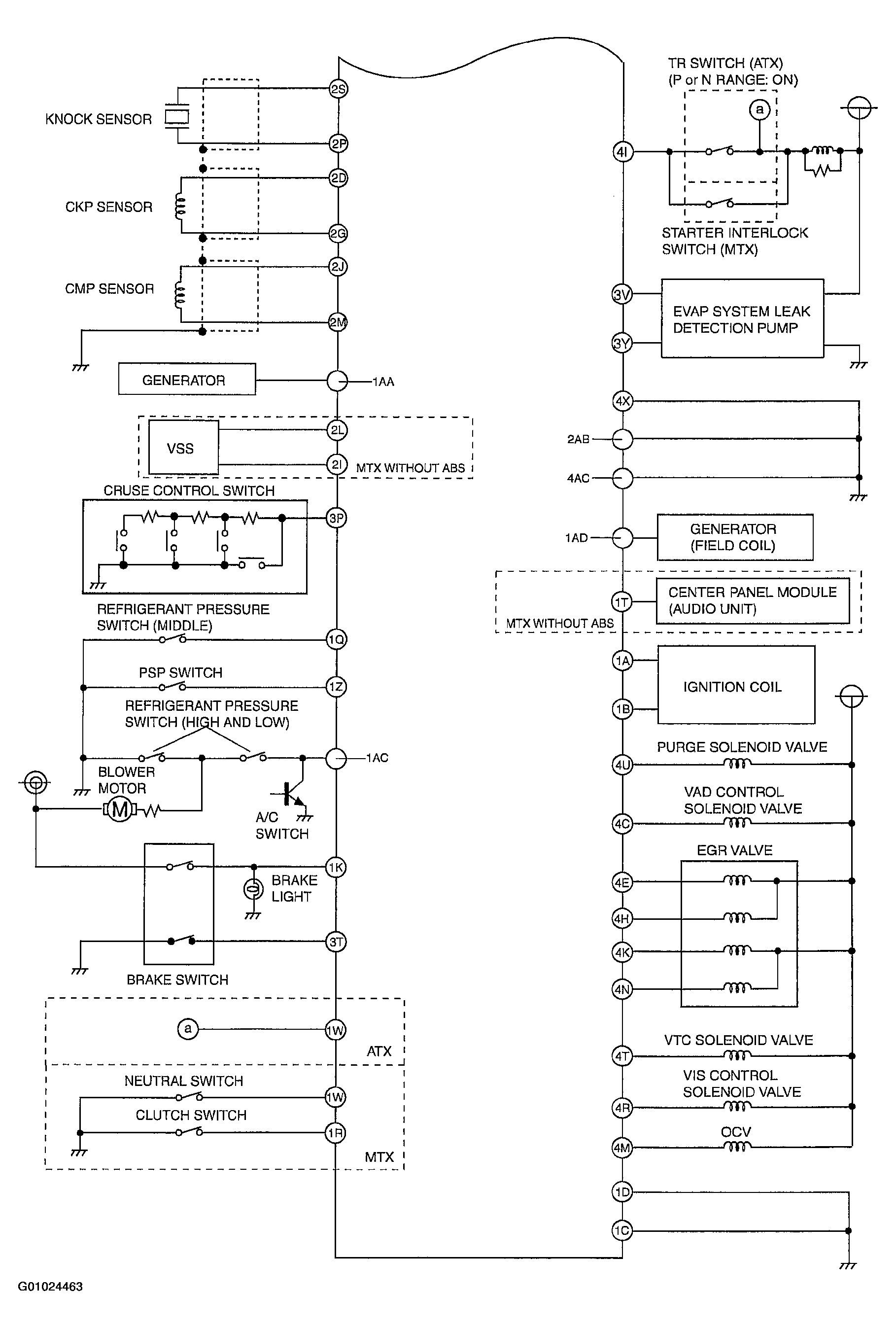

Fig 2: System Component Schematic (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
