ECT Sensor Resistance Inspection: Specification

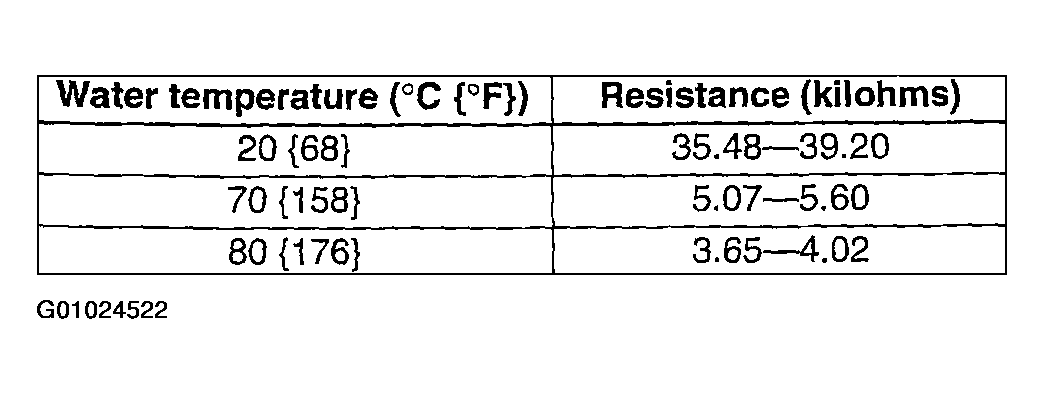

Fig 1: ECT Sensor Resistance Specification Table
G01024522Courtesy of MAZDA MOTORS CORP.

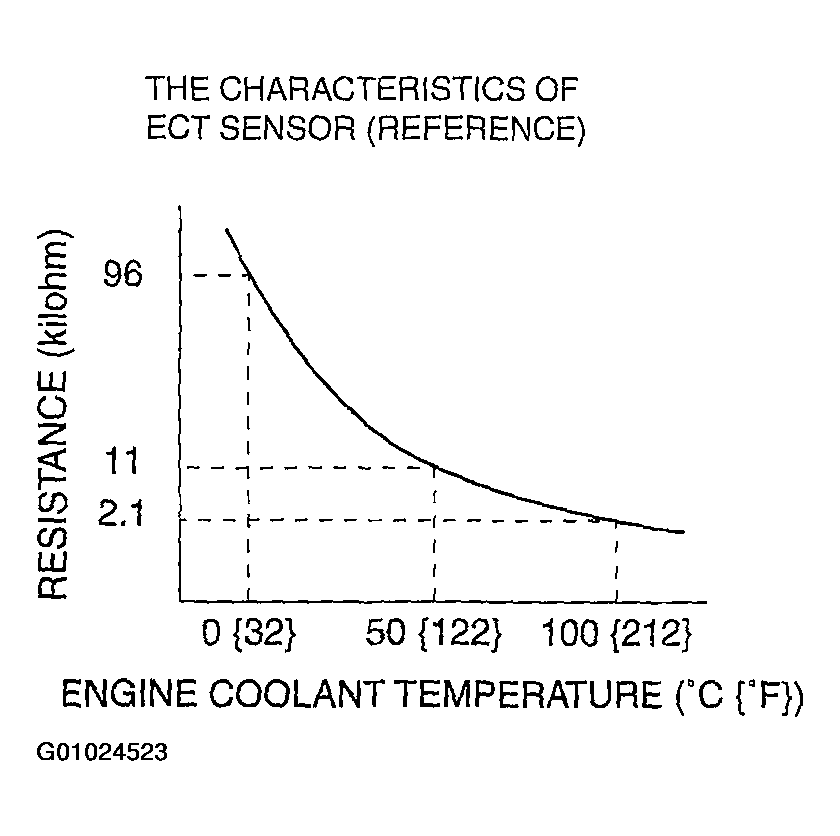

Fig 2: Temperature/Resistance Characteristics Of ECT Sensor
G01024523Courtesy of MAZDA MOTORS CORP.
