Circuit Open/Short Inspection: Specification

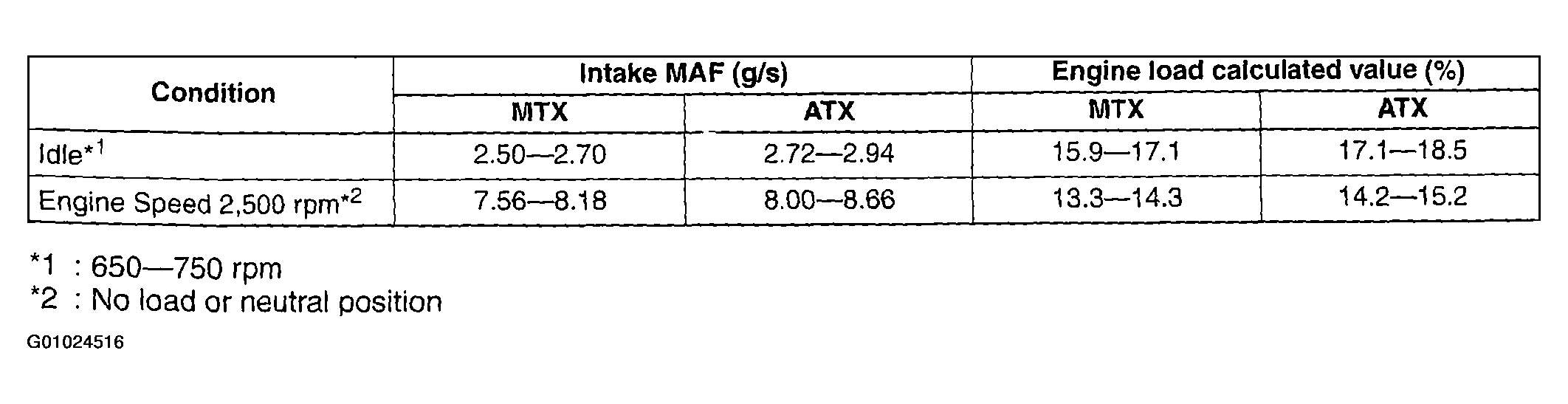

Fig 1: MAF/IAT Sensor Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
