Continuity Inspection: Specification

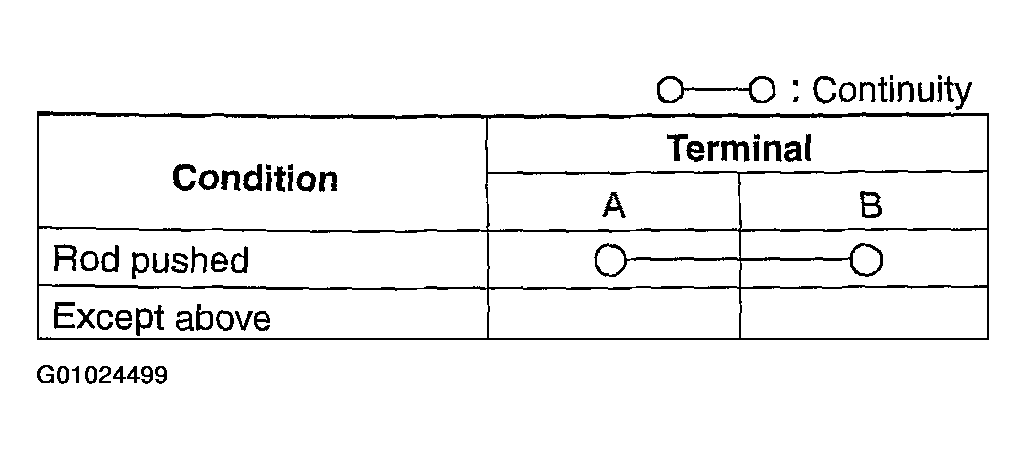

Fig 1: Continuity Specification Table
G01024499Courtesy of MAZDA MOTORS CORP.

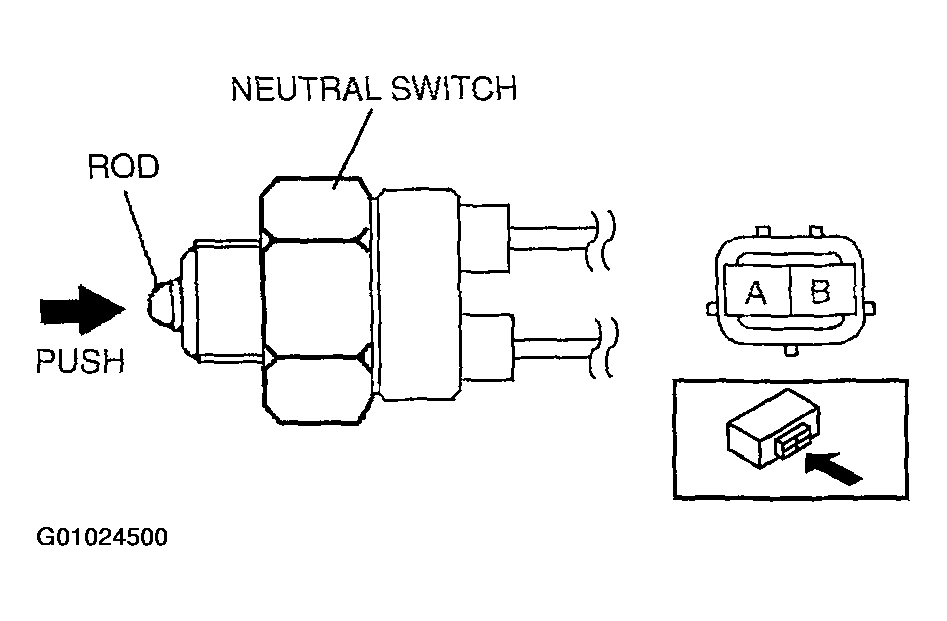

Fig 2: Neutral Switch Identification
G01024500Courtesy of MAZDA MOTORS CORP.
