PID/DATA Monitor Table (Reference)

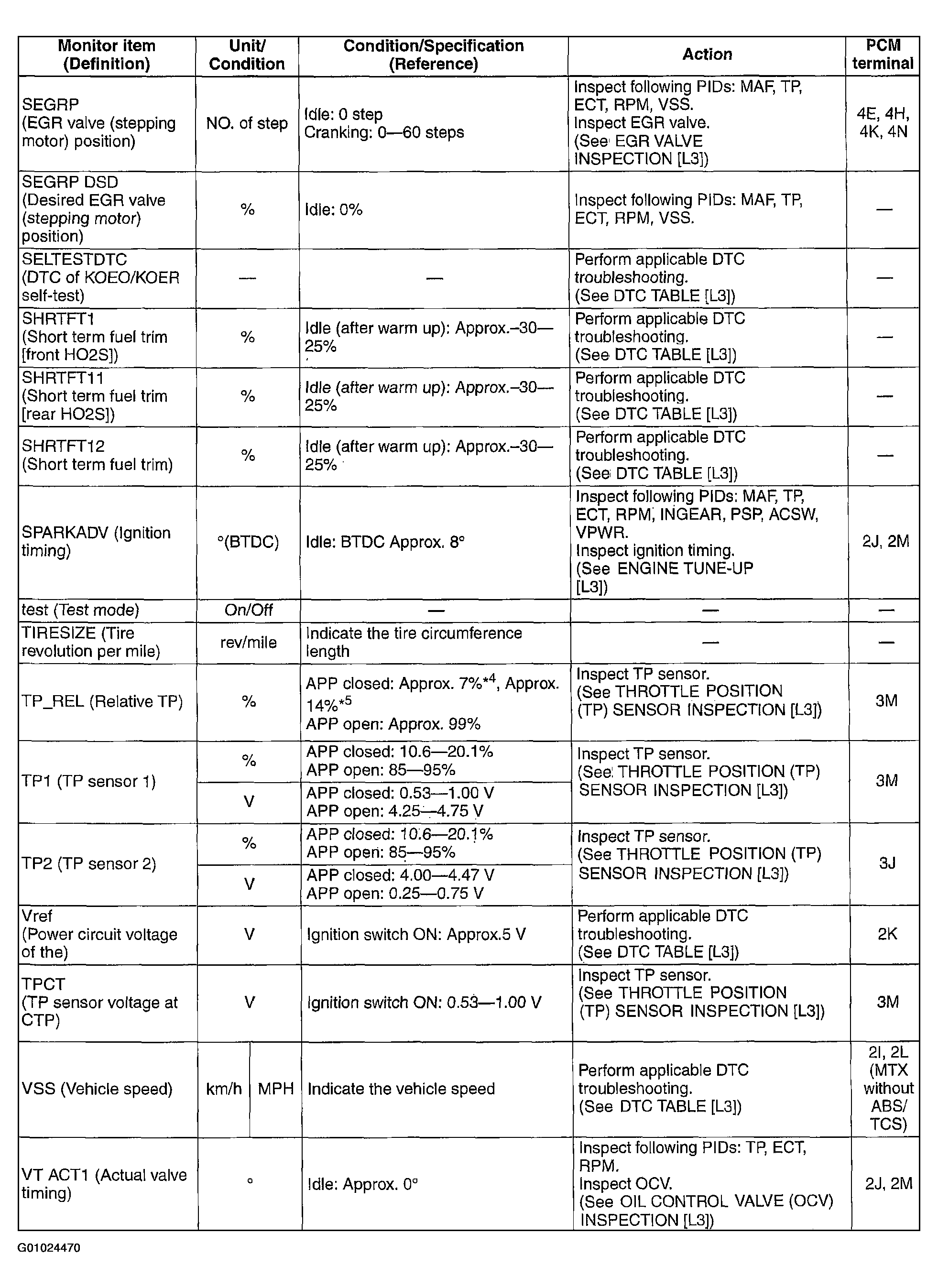

Fig 1: PID/DATA Monitor Reference Table (1 Of 6)
Courtesy of MAZDA MOTORS CORP.

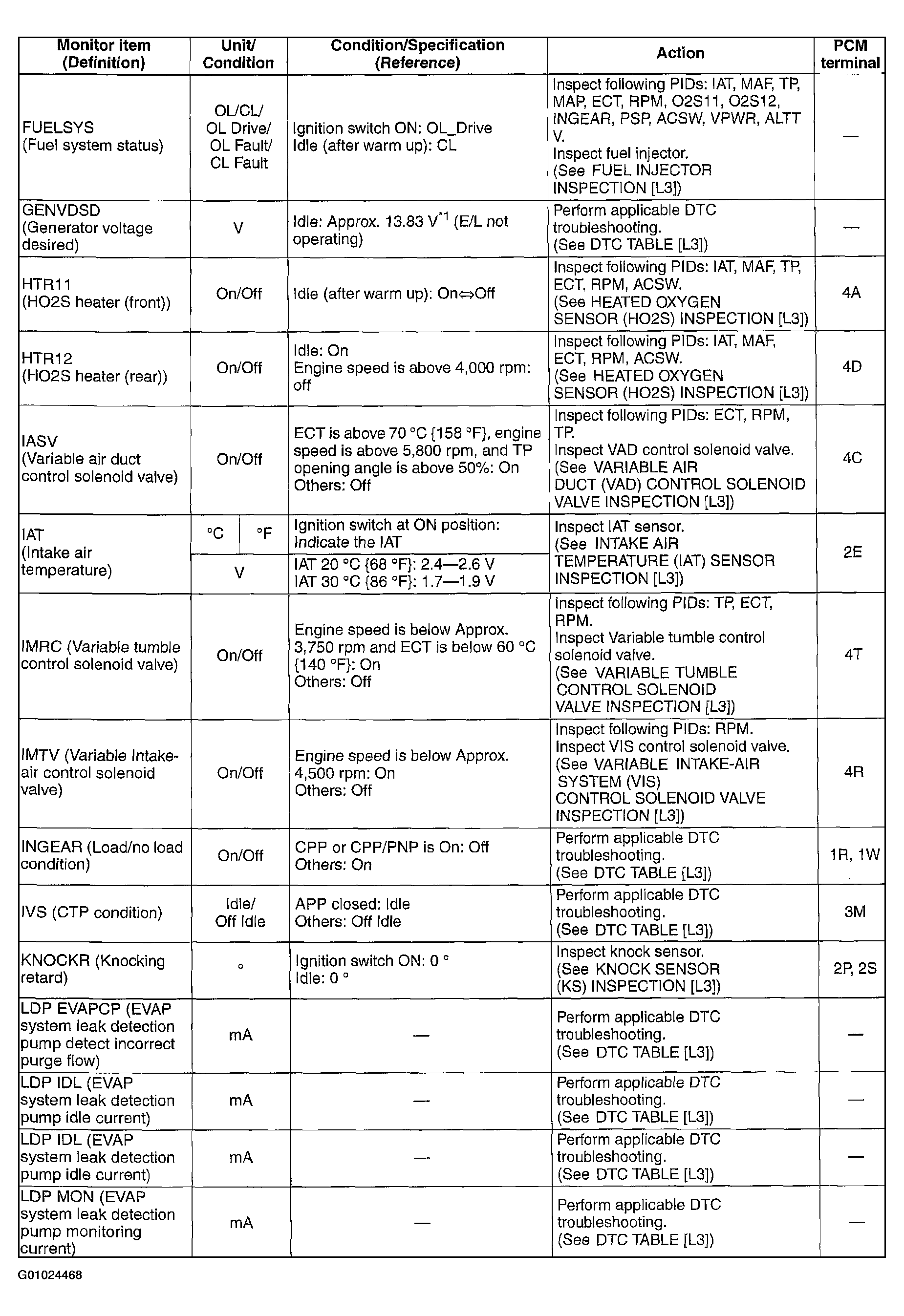

Fig 2: PID/DATA Monitor Reference Table (2 Of 6)
Courtesy of MAZDA MOTORS CORP.

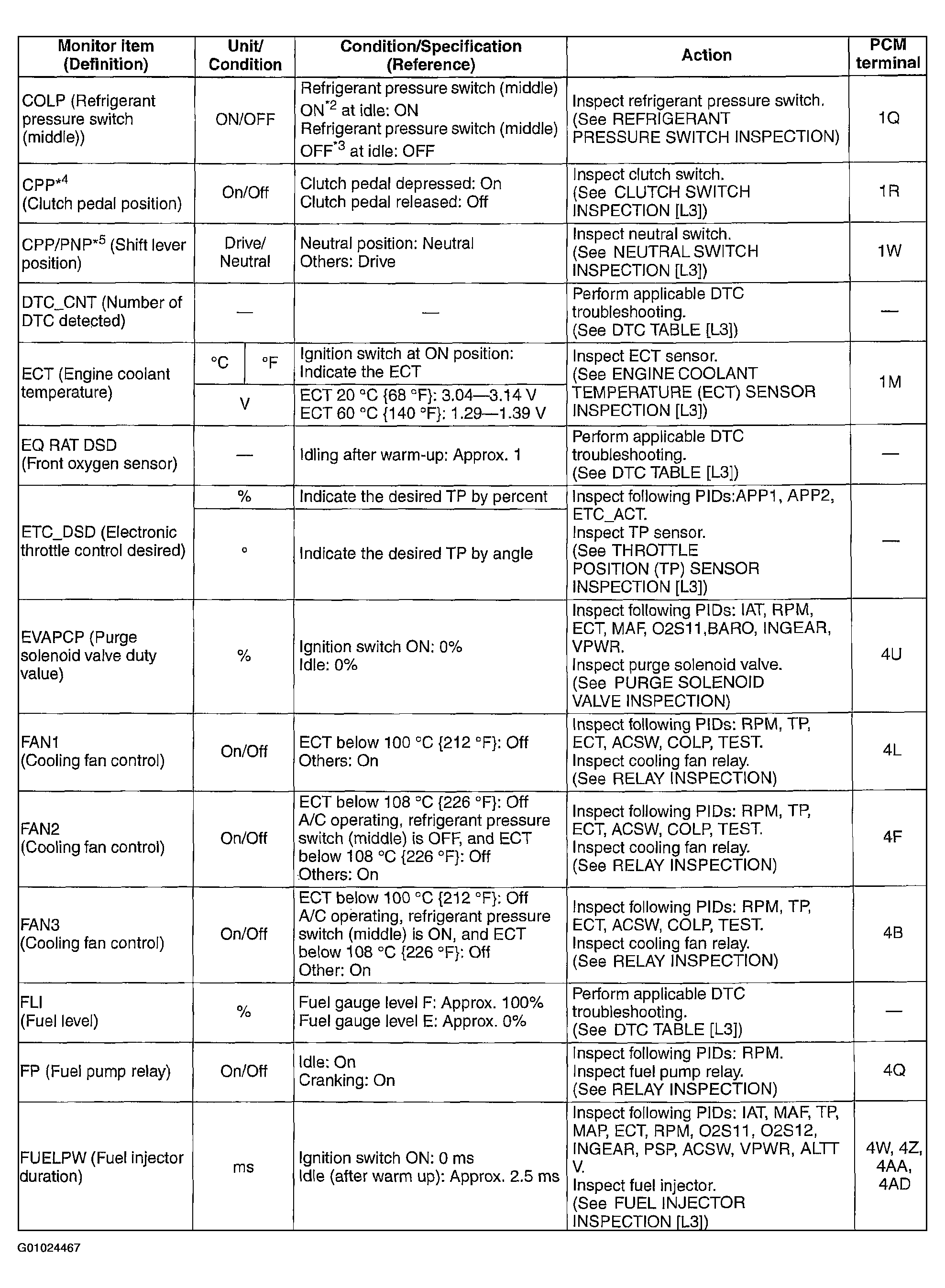

Fig 3: PID/DATA Monitor Reference Table (3 Of 6)
Courtesy of MAZDA MOTORS CORP.

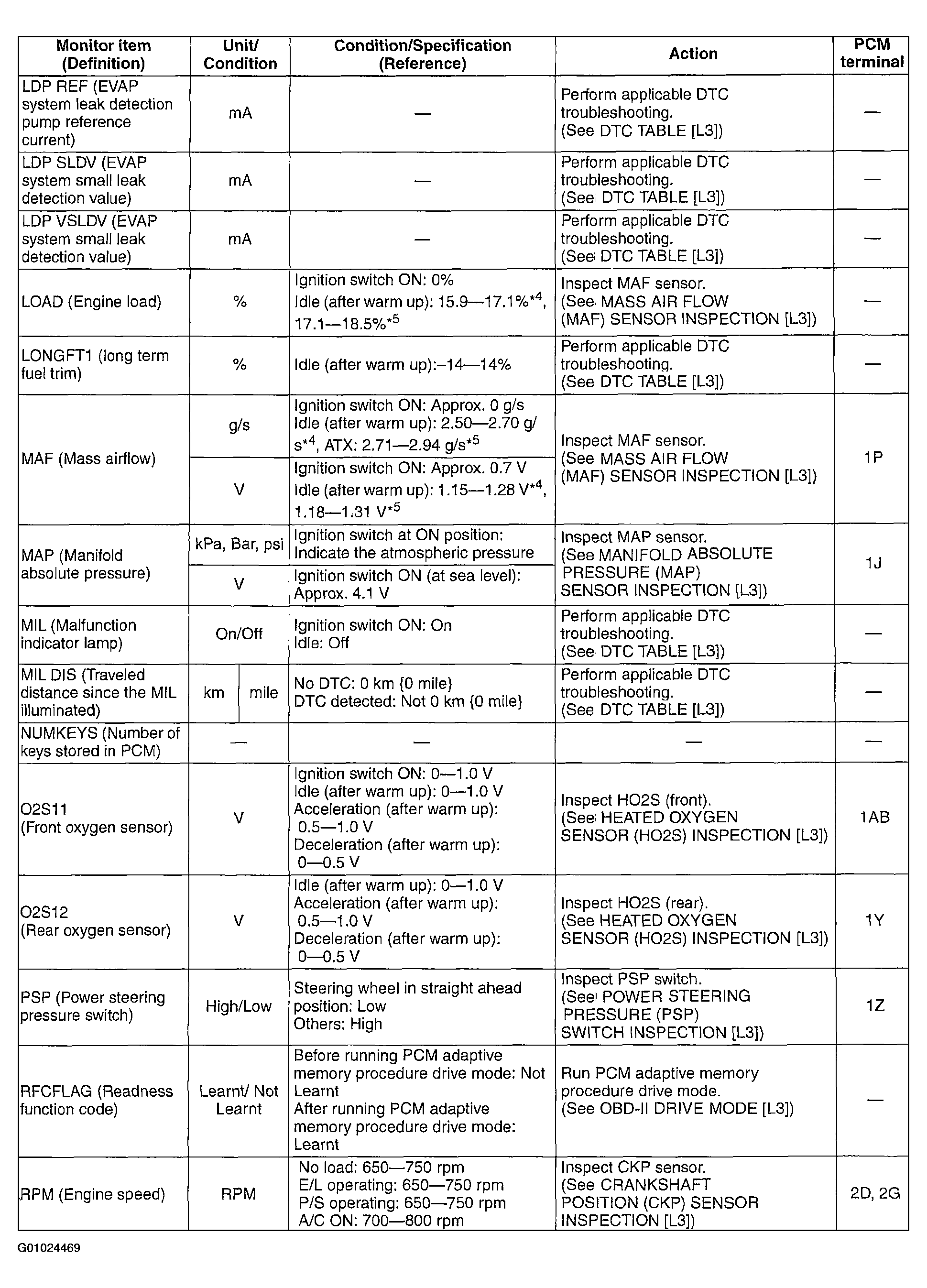

Fig 4: PID/DATA Monitor Reference Table (4 Of 6)
Courtesy of MAZDA MOTORS CORP.

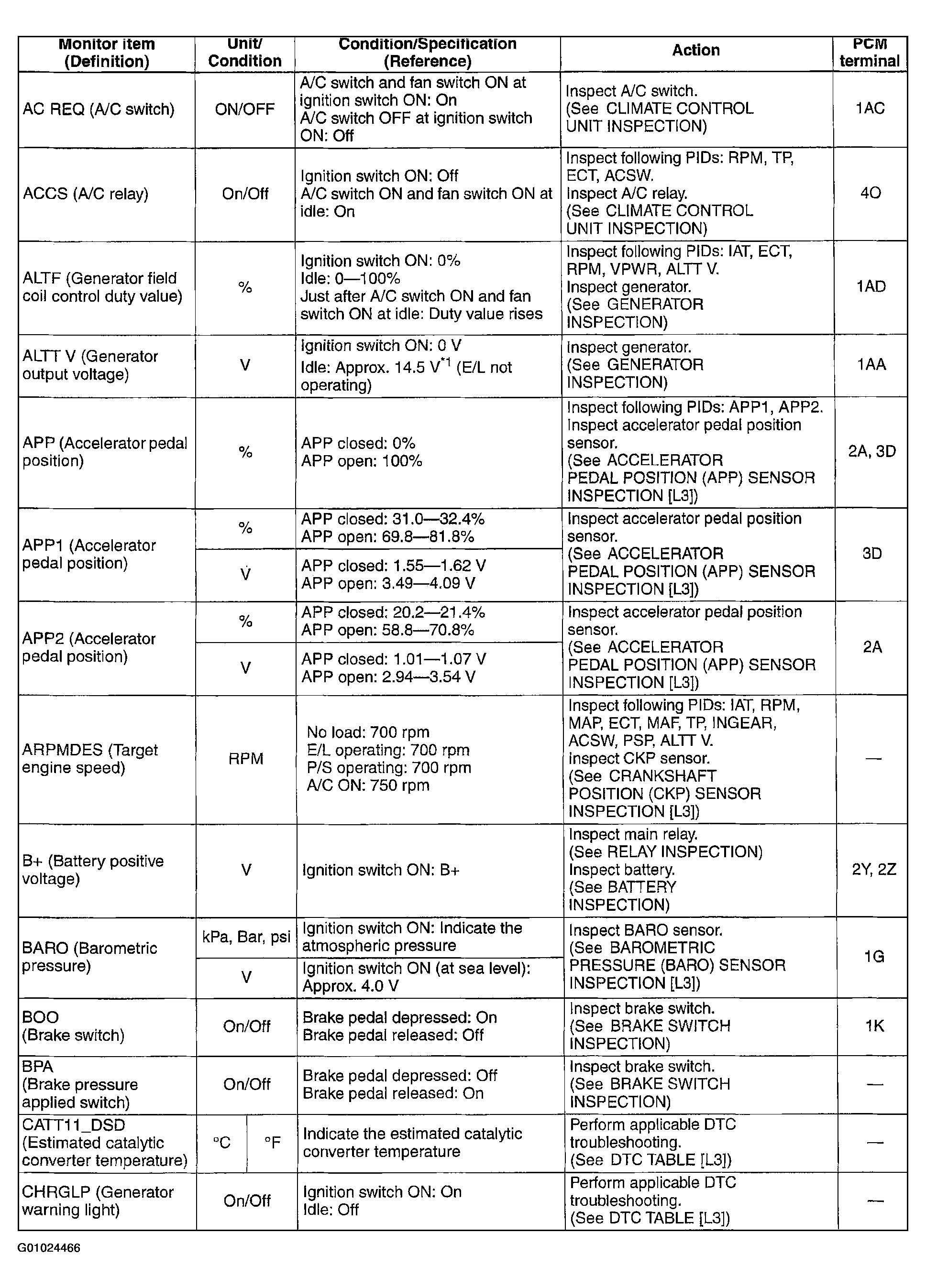

Fig 5: PID/DATA Monitor Reference Table (5 Of 6)
Courtesy of MAZDA MOTORS CORP.

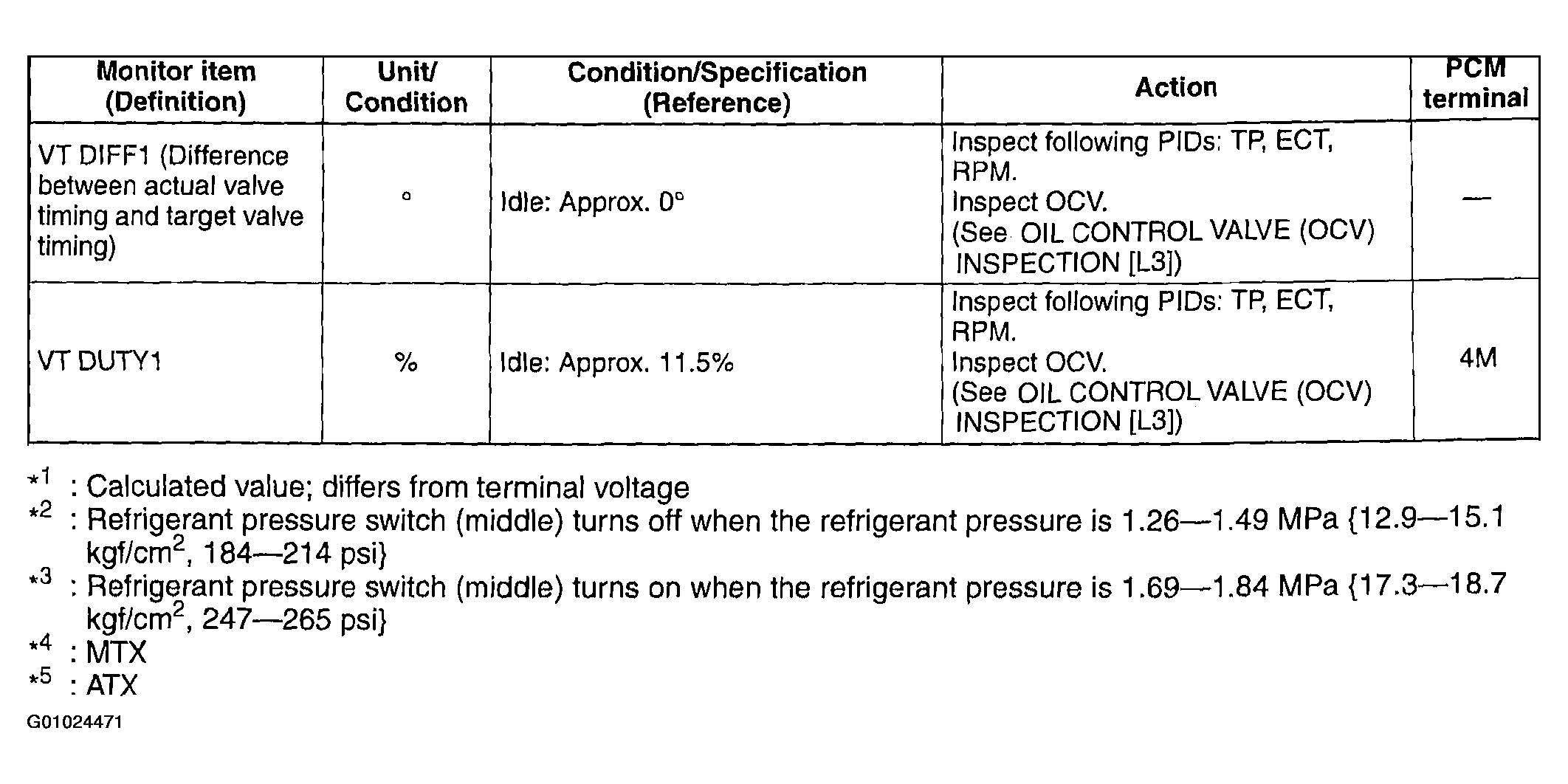

Fig 6: PID/DATA Monitor Reference Table (6 Of 6)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
