Fuel Injector Operation Inspection

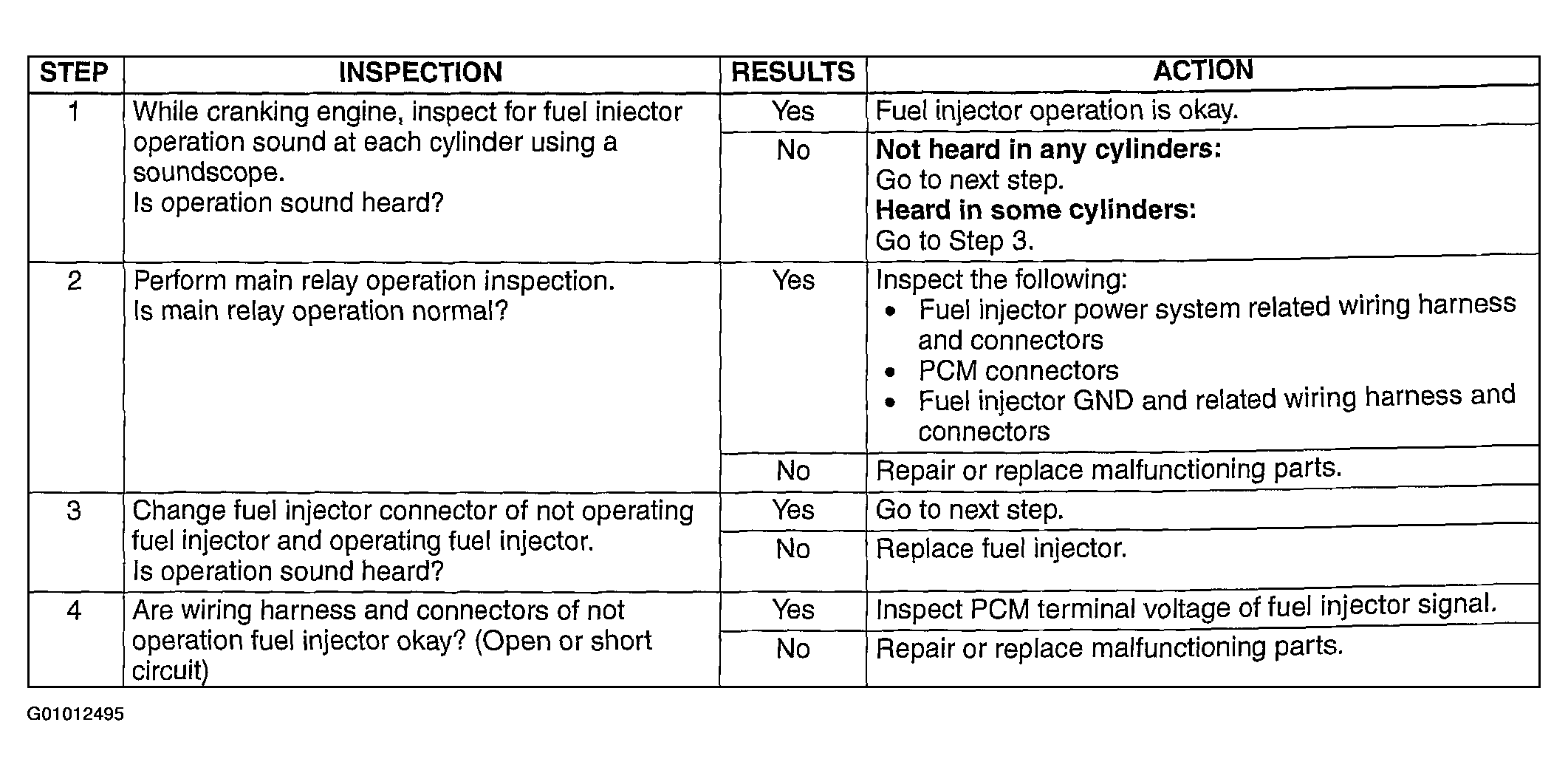

Fig 1: Fuel Injector Inspection Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
