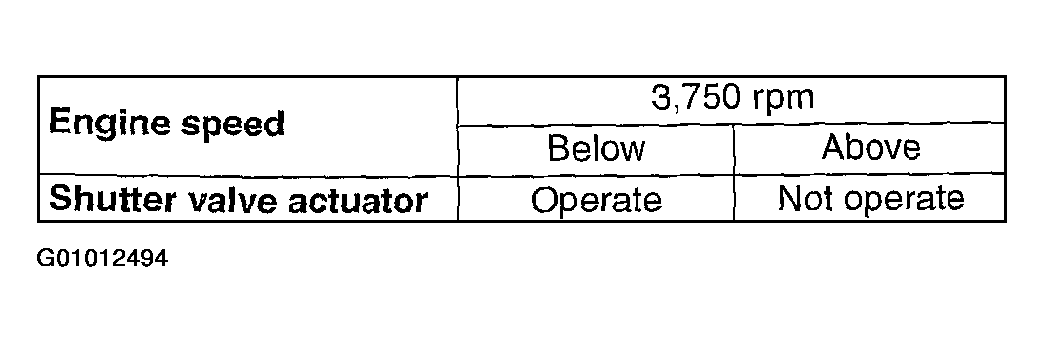

Rod operation
- If the rod operation is not specified, inspect as follows:
- (1) Verify that DTC No. P2009 or P2010 is not displayed.
- If DTC No. P2009 or P2010 are shown, perform DTC inspection. (See DTC TABLE .)
- (2) Inspect VTCS control solenoid valve.
(See VARIABLE TUMBLE CONTROL SOLENOID VALVE INSPECTION .)
- If the VTCS control solenoid valve is not okay, replace VTCS control solenoid valve.
- If the VTCS control solenoid valve is okay, inspect the following:
- Vacuum hose and vacuum chamber for looseness or damage
- Shutter valve actuator
(See VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SHUTTER VALVE ACTUATOR INSPECTION .)
- Shutter valve stuck open or closed
