Inspection Using An Oscilloscope (Reference)
>>
Generator Field Coil Control Signal
>>
Vehicle Condition
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Vehicle Condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

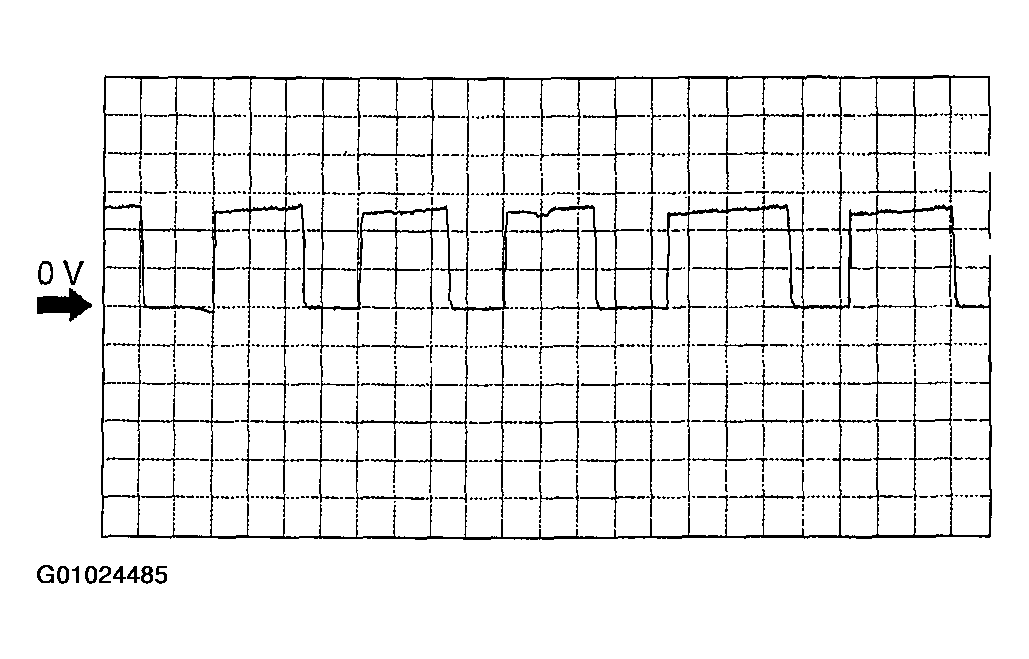

Fig 1: Inspecting Generator Field Coil Control Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
