DTC P0171 & P0174: Fuel Trim System (RH) Too Lean: Notes

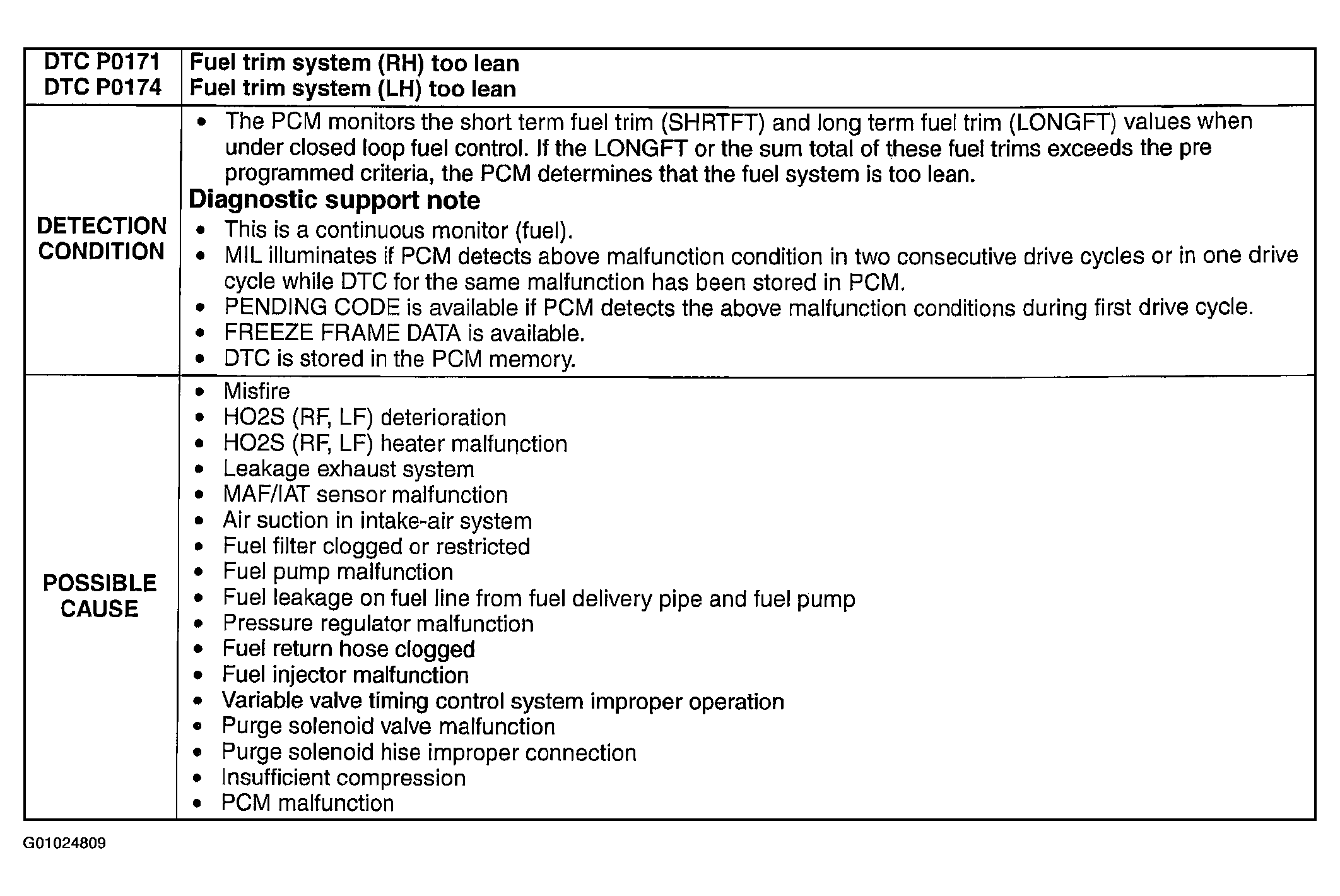

Fig 1: DTC P0171 & P0174: Detection Condition & Possible Causes Chart
G01024809Courtesy of MAZDA MOTORS CORP.
